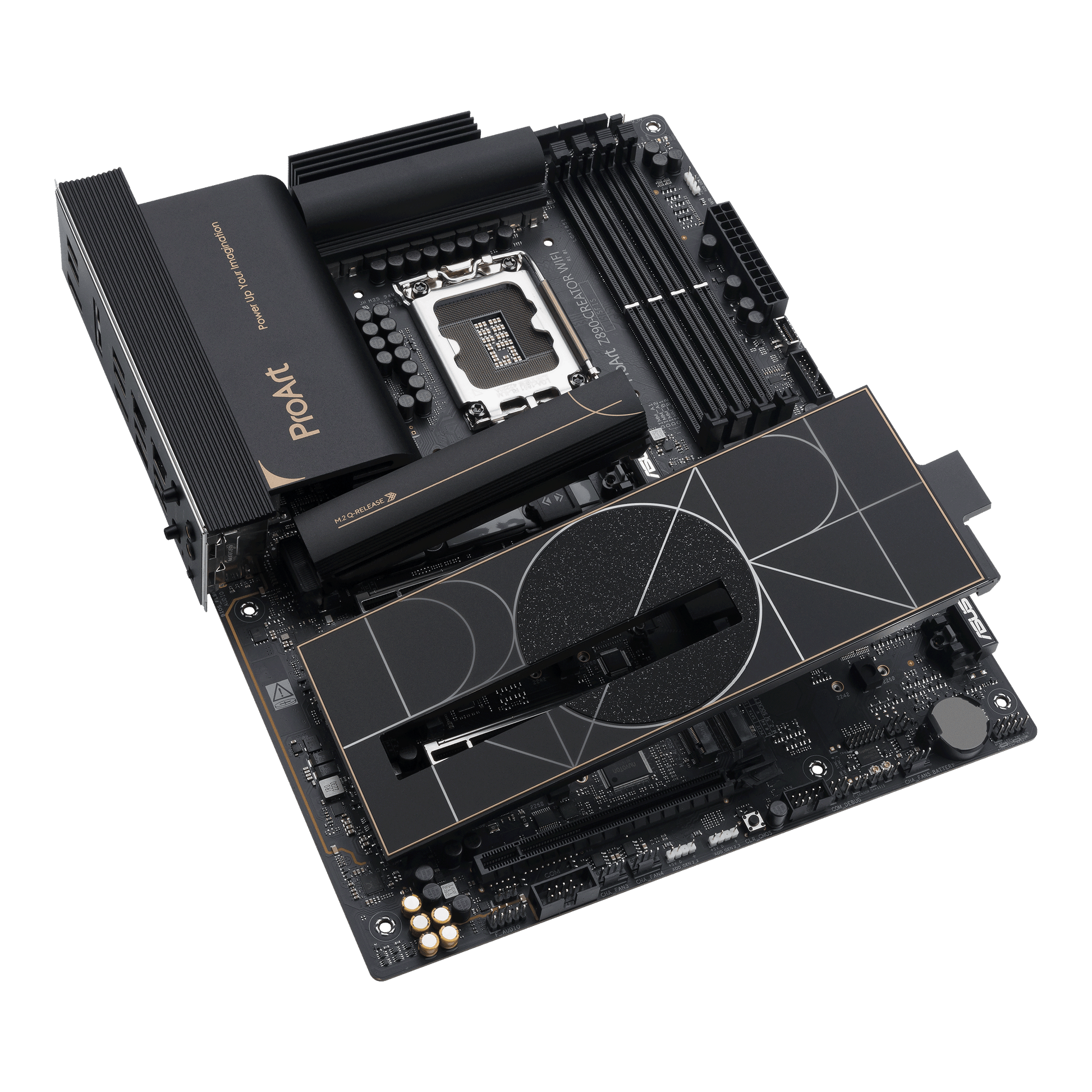

ASUS ProArt Z890-CREATOR WIFI - Intel® Core™ Ultra Processors, LGA1851 / DDR5 / WIFI 7 ATX Motherboard

ASUS ProArt Z890-CREATOR WIFI - Intel® Core™ Ultra Processors, LGA1851 / DDR5 / WIFI 7 ATX Motherboard

$944.00 SGD
$944.00 SGD
Sale Sold out

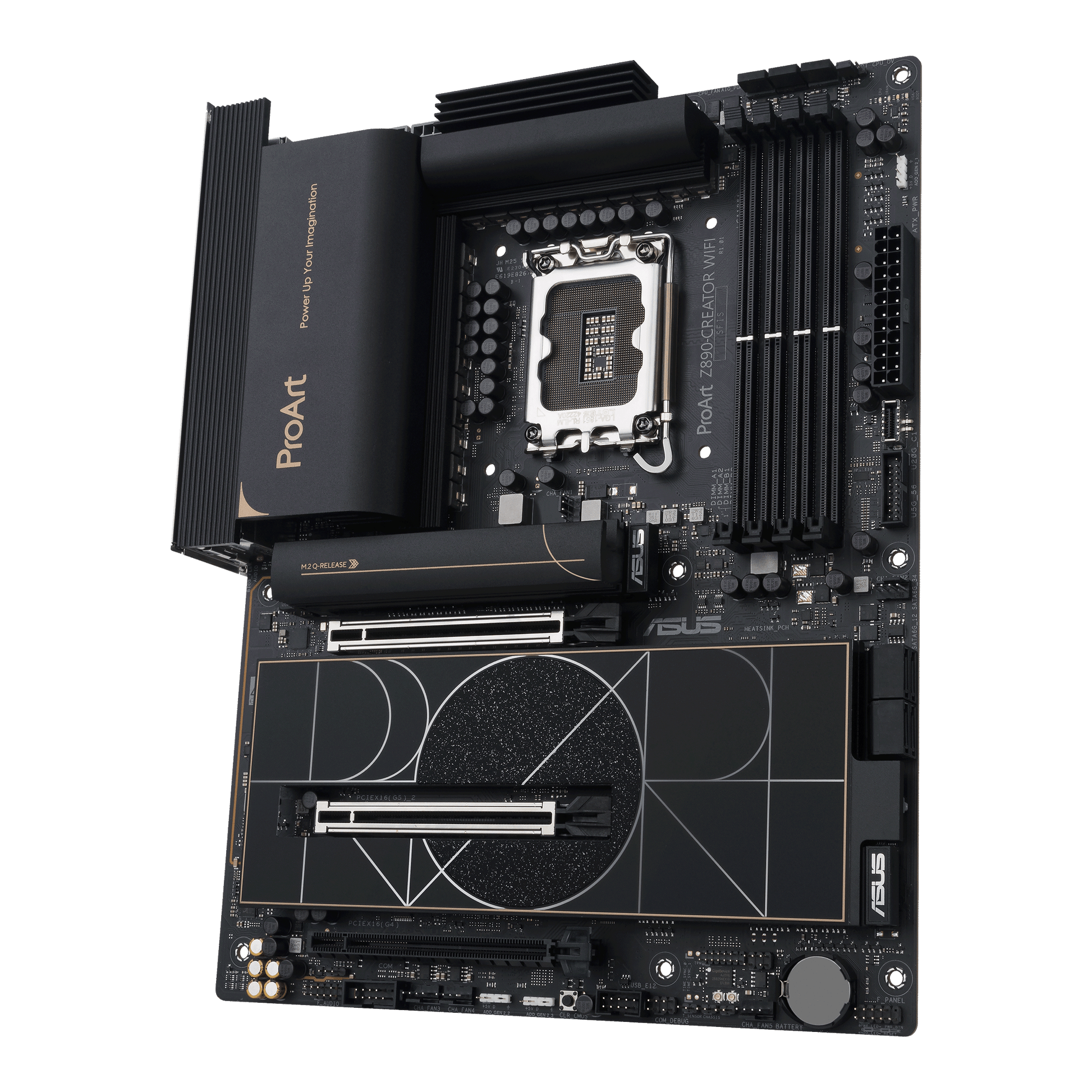

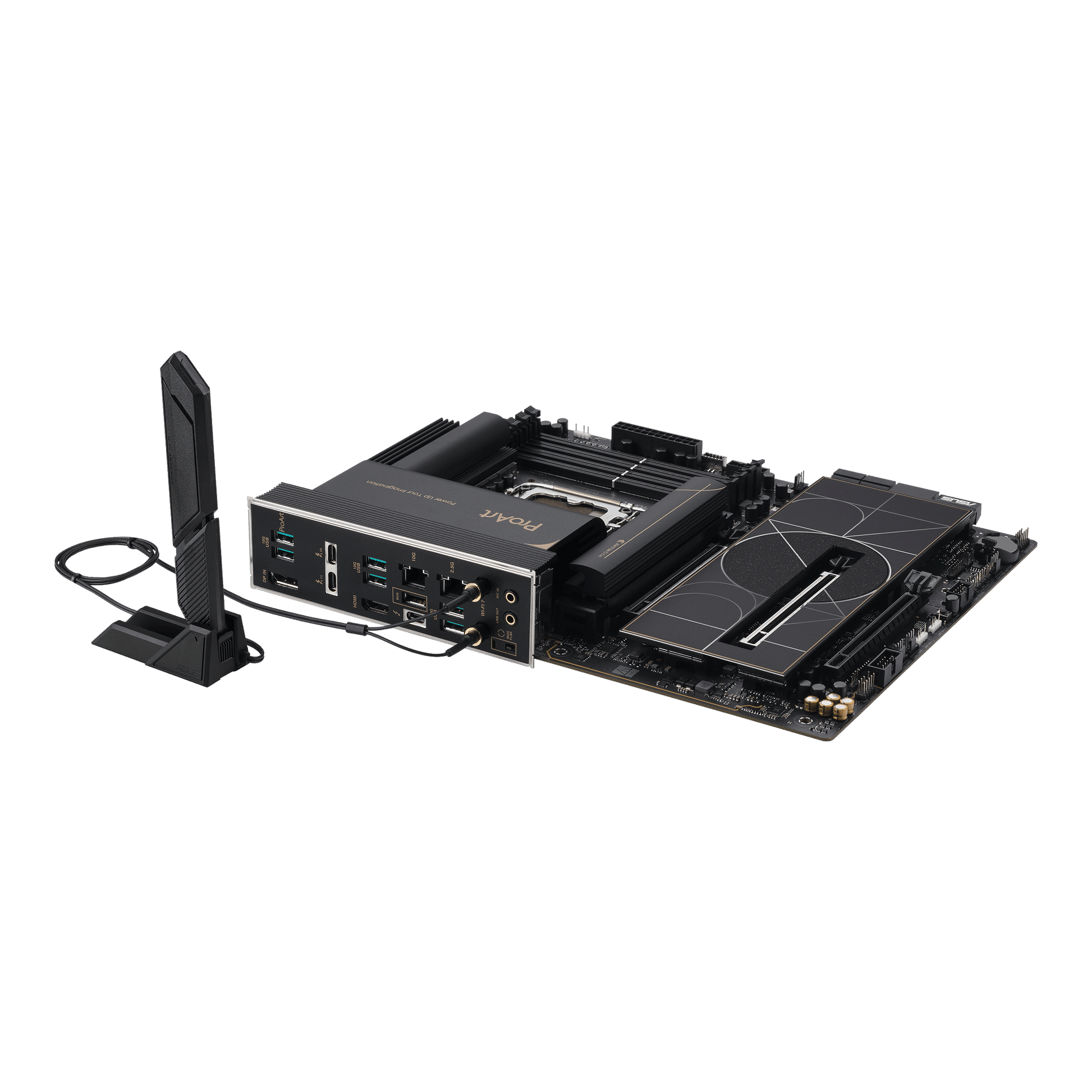

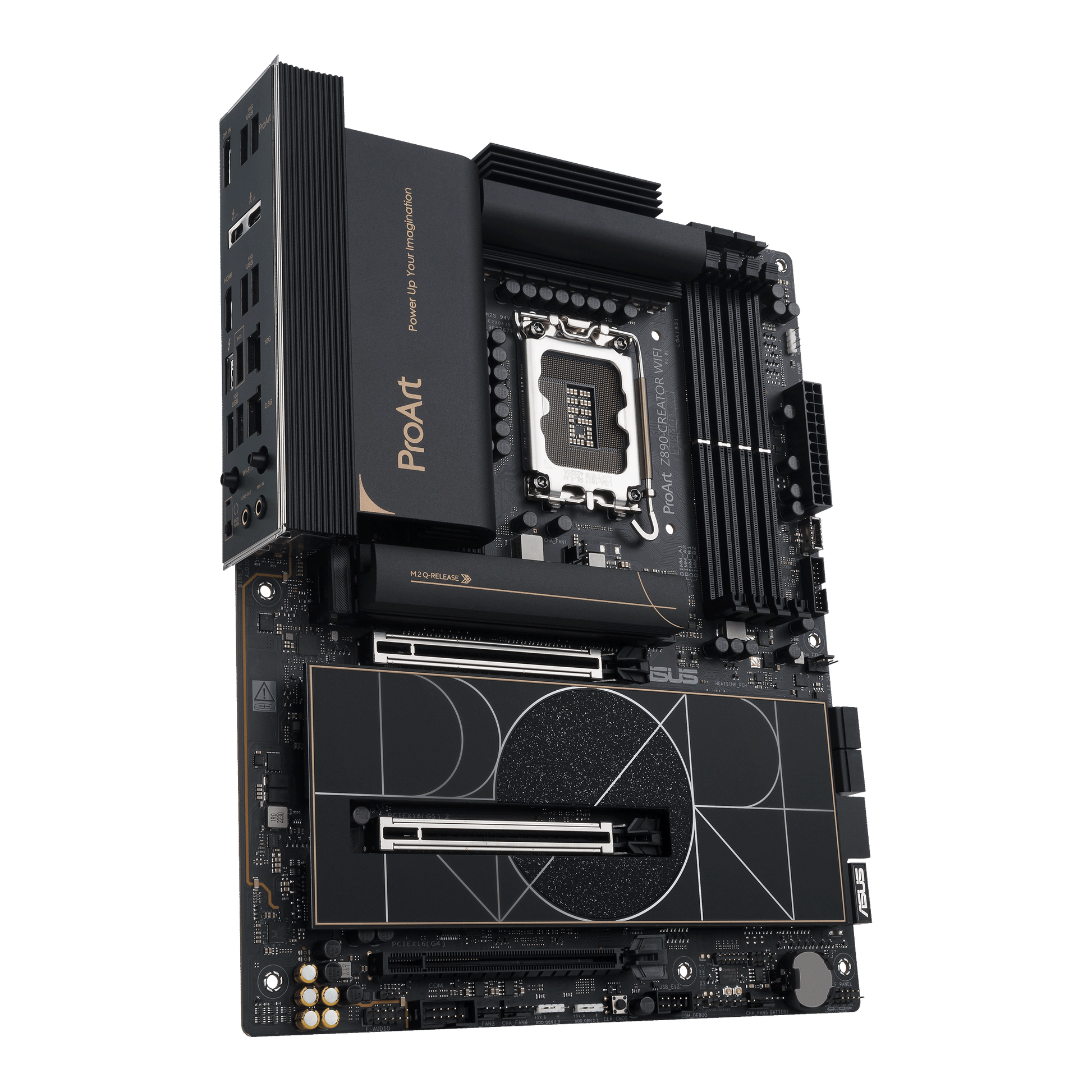

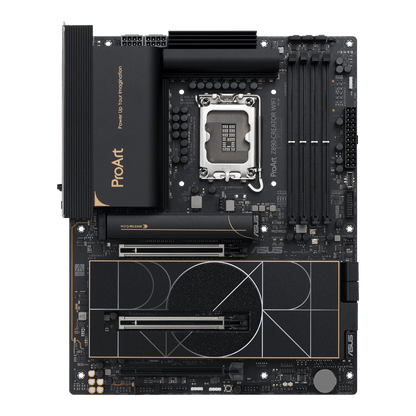

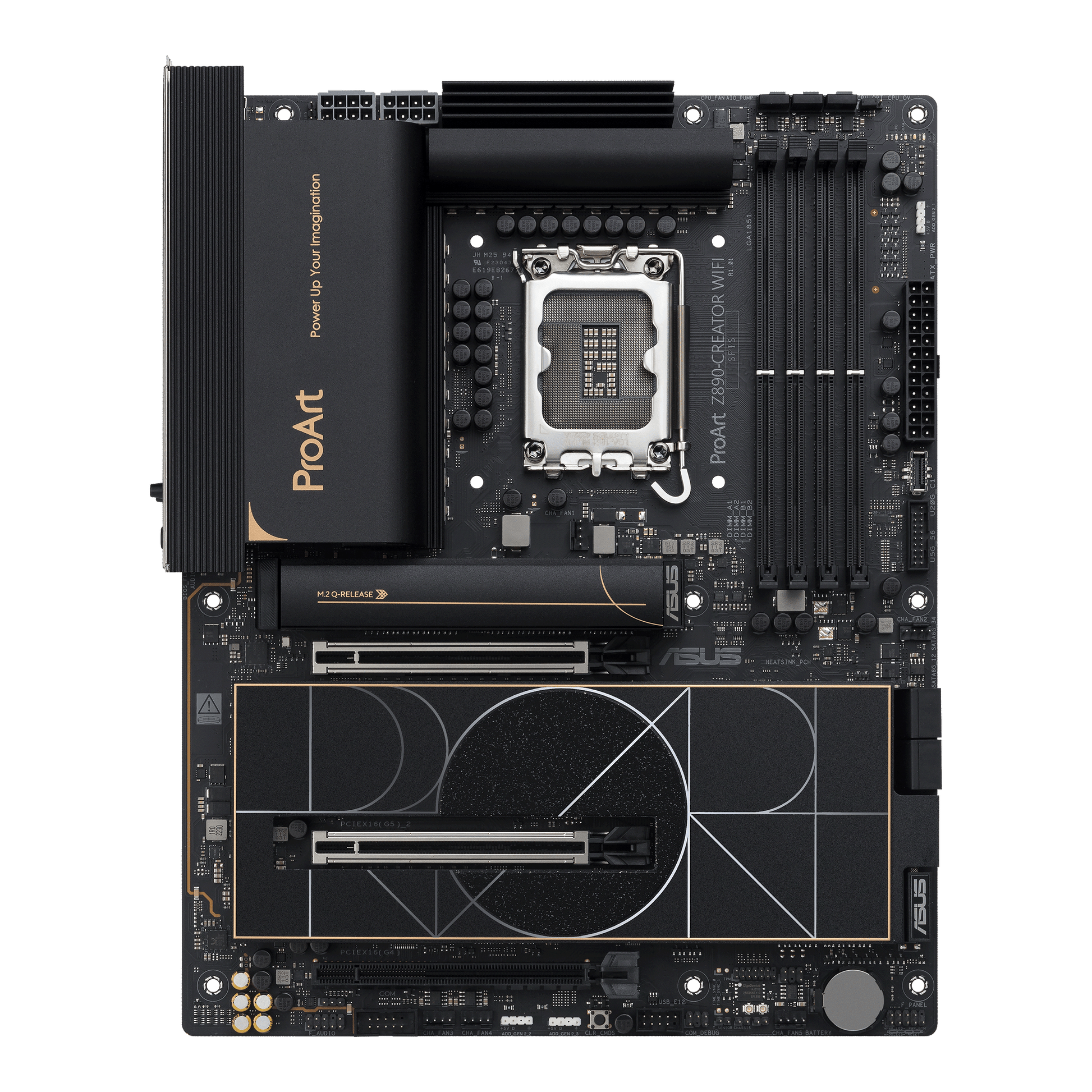

ProArt Z890-CREATOR WIFI

The ASUS ProArt Z890 Creator WiFi Motherboard is engineered for creators and professionals seeking top-tier performance, reliability, and connectivity. Powered by Intel Core Ultra processors (Series 2) and the LGA1851 socket, it supports PCIe 5.0 and dual Thunderbolt 4 ports, providing lightning-fast data transfer and next-gen GPU compatibility. With support for 4x DDR5 DIMM slots and 5x M.2 slots for ultra-fast storage, 4x SATA 6Gb/s ports, 10x rear USB ports including Thunderbolt 5 Type-C, 5x front USB ports, Marvell AQtion 10Gb Ethernet, with WiFi 7 and Bluetooth 5.4, this motherboard ensures seamless connectivity and optimal network performance. Its advanced cooling solutions, robust power delivery, and exclusive ProArt features like Creator Hub make it perfect for demanding creative workflows, offering stability and efficiency for content creation, video editing, and 3D rendering, in a ATX form factor.

Thunderbolt™ Connectivity

Two Thunderbolt™ 5 ports and one Thunderbolt™ 4 port for connecting to all your compatible content-creation gadgets, enjoying up to 120 Gbps bi-directional data transfers.

Ultrafast Networking

  • 10 Gb & 2.5 Gb Ethernet
  • WiFi 7 - Up to 4.8X faster than standard WiFi 6
    • 320 MHz channels on the 6GHz band and 4K QAM
    • Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency
  • ASUS WiFi Q-Antenna - Dual transceivers support the 2.4, 5 and 6 GHz bands

ProArt Creator Hub

  • Features Pantone's color management utilities

Exclusive AI Technologies

  • AI Overclocking, AI Cooling II, AI Networking II and AI Advisor

Easy PC DIY to Make Your Life Easier

  • PCIe Slot Q-Release Slim, M.2 Q-Release, M.2 Q-Side, M.2 Q-Latch and WiFi Q-Antenna

PCIe® 5.0 Support

  • Full support for next-gen graphics cards
  • Five Onboard M.2 Slots
  • PCIe 5.0 Expansion Slots - Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via Q-Release Slim.

16+1+2+2 Power Stages

This configuration ensures optimal power delivery, efficiency, stability and performance for new Intel® Core™ Ultra Processors (Series 2)

Unleash DDR5 with DIMM Fit and AEMP III

  • DIMM Fit Up to DDR5 9066+ MHz
  • ASUS Enhanced Memory Profile III (AEMP III)

NPU Boost Overclocking Technology

The integrated Neural Processing Unit in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it.

SPECIFICATION

Model: ProArt Z890-CREATOR WIFI

CPU:

  • Support Intel®Core™ Ultra Processors (Series 2), LGA1851
  • Supports Intel®Turbo Boost Technology 2.0 and Intel®Turbo Boost Max Technology 3.0**

*Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset: Intel® Z890 Chipset

Memory:

  • 4 x DIMM slots, max. 192GB, DDR5
  • Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)*
  • Dual channel memory architecture
  • Supports Intel®Extreme Memory Profile (XMP) memory module
  • ASUS Enhanced Memory Profile III (AEMP III)
  • Support DIMM Fit
  • Support DIMM Flex

*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics:

  • 1 x HDMI™ port**
  • 2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
  • 1 x Intel®Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs****

*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1
*** Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in.
*** Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in.
*** For resolution support please check DisplayPort 2.1 specs. ThunderboltTM 5 bandwidth is limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt™ cables.
**** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.
***** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots:

  • Intel® Core™ Ultra Processors (Series 2)*
    • 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
  • Intel® Z890 Chipset
    • *1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage:

  • Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® Core™ Ultra Processors (Series 2)*
    • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
    • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel® Z890 Chipset
    • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
    • M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**
    • 4 x SATA 6Gb/s ports

*Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled.

Ethernet:

  • 1 x Marvell®AQtion 10Gb Ethernet
  • 1 x Intel®2.5Gb Ethernet
  • ASUS LANGuard Wireless & Bluetooth Wi-Fi 7*
  • 2x2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band**
  • Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
  • Bluetooth®v5.4***

*Wi-Fi features may vary depending on the operating system
 For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
 For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth®version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB:

  • Rear USB (Total 10 ports)
    • 2 x Thunderbolt™ 5 ports (2 x USB Type-C®)
    • 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
    • 6 x USB 10Gbps ports (6 x Type-A )
    • 1 x USB 2.0 port (1 x Type-A )
  • Front USB (Total 5 ports)
    • 1 x USB 20Gbps (supports USB Type-C®)
    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    • 1 x USB 2.0 header supports 2 additional USB 2.0 ports
    • USB Type-C®power delivery output: max. 5V/3A

Audio:

  • Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
    - Impedance sense for front and rear headphone outputs
    - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • Supports up to 32-Bit/192 kHz playback
  • Audio Features - Gold-plated audio jacks- Premium audio capacitors - Dedicated audio PCB layers

Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

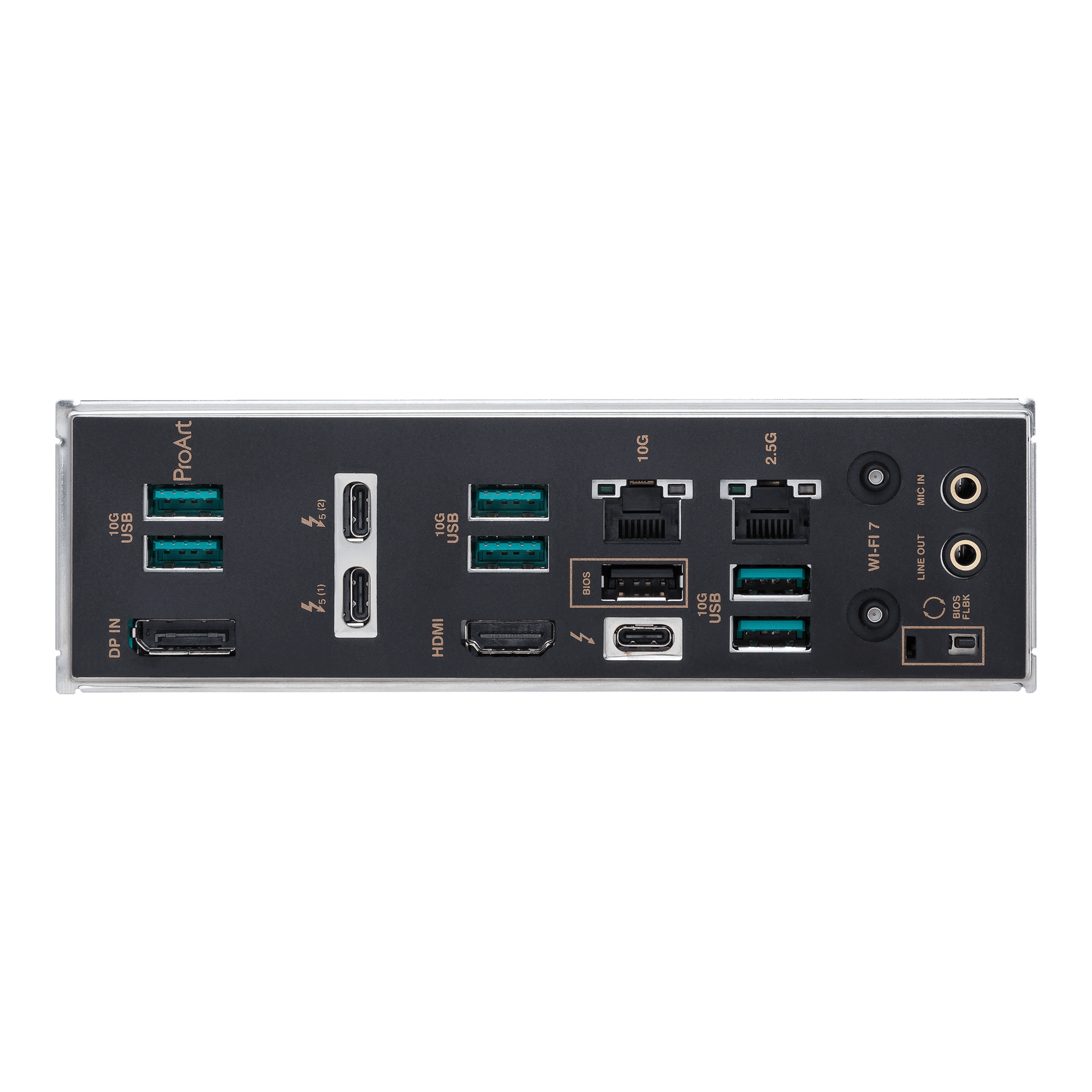

Back Panel I/O Ports:

  • 2 x Thunderbolt™ 5 USB Type-C®ports
  • 1 x Thunderbolt™ 4 USB Type-C®port
  • 6 x USB 10Gbps ports (6 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
  • 1 x DisplayPort (Input only)
  • 1 x HDMI™ port
  • 1 x Wi-Fi module1 x Marvell®AQtion 10Gb Ethernet port
  • 1 x Intel®2.5Gb Ethernet port
  • 2 x Gold-plated audio jacks
  • 1 x BIOS FlashBack™ button

Internal I/O Connectors:

  • Fan and Cooling Related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    5 x 4-pin Chassis Fan headers
  • Power Related
    1 x 24-pin Main Power connector
    2 x 8-pin +12V CPU Power connector
  • Storage Related
    5 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
  • USB
    1 x USB 20Gbps connector (supports USB Type-C®)
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    1 x USB 2.0 header supports 2 additional USB 2.0 ports
  • Miscellaneous
    3 x Addressable Gen2 headers
    1 x Clear CMOS button
    1 x COM Port header
    1 x CPU Over voltage jumper
    1 x Chassis Intrusion header
    1 x Front Panel Audio header (F_AUDIO)
    1 x SPI TPM header (14-1 pin)
    1 x 10-1 pin Front System Panel header
    1 x RTC Battery header
    1 x Thermal Sensor header

Special Features:

  • ASUS 5X PROTECTION III
    - DIGI+ VRM (- Digital power design with DrMOS)
    - ESD Guards
    - LANGuard
    - Overvoltage protection
    - SafeSlot
    - Stainless-steel back I/O
  • ASUS Q-Design
    - M.2 Q-Latch
    - M.2 Q-Release
    - M.2 Q-Slide- Q-Release Slim (with PCIe SafeSlot)
    - Q-Antenna
    - Q-Connector
    - Q-Dashboard
    - Q-DIMM
    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • ASUS Thermal Solution
    - M.2 heatsink backplate
    - M.2 heatsink
    - VRM heatsink design
  • ASUS EZ DIY
    - BIOS FlashBack™ button
    - BIOS FlashBack™ LED
    - Box headers
    - Clear CMOS button
    - CPU Socket lever protector
    - ProCool II
    - Pre-mounted I/O shield
    - SafeDIMM
  • Aura Sync
    - Addressable Gen2 headers
  • Bespoke Motherboard Design & Business Focused Features
    - 24/7 reliability - Overcurrent protection

Software Features

  • ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - Fan Xpert 4
    ASUS Driver Hub
    ASUS GlideX
    ASUS CPU-Z
    CreatonFirst
    ProArt Creator Hub
    TurboV Core
    Thunderbolt™ Share
    USB Wattage Watcher
    Adobe Creative Cloud (Free Trial)
    Norton 360 Deluxe (60 Days Free Trial)
    WinRAR (40 Days Free Trial)
  • UEFI BIOS
    AI Overclocking Guide
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash
    - ASUS UEFI BIOS EZ Mode
    - ASUS MyHotkey
  • NPU Boost

Remote Management Features:

  • IT Management software supported- ASUS Control Center Express(ACCE)

BIOS

  • 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

  • WOL by PME, PXE

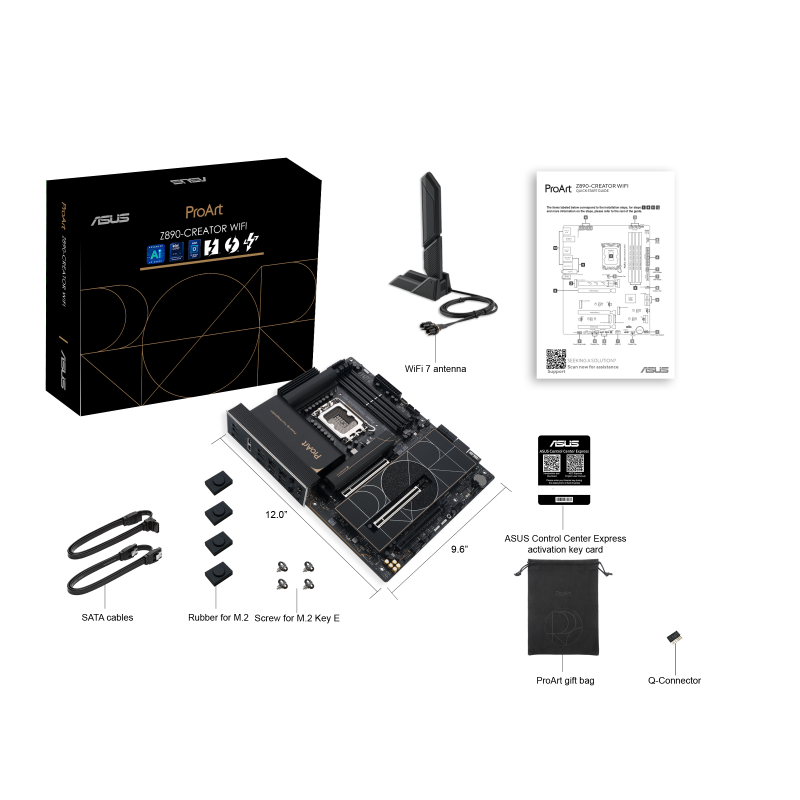

Accessories:

  • Cables
    2 x SATA 6Gb/s cables

  • Miscellaneous
    1 x ASUS WiFi Q-Antenna
    1 x Q-connector
    2 x M.2 Q-Latch packages
    2 x M.2 rubber packages
    1 x ProArt accessory bag

  • Documentation
    1 x ACC Express activation key card
    1 x Quick start guide

Operating System:

  • Windows 11  (22H2 & later)

Form Factor:

  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
