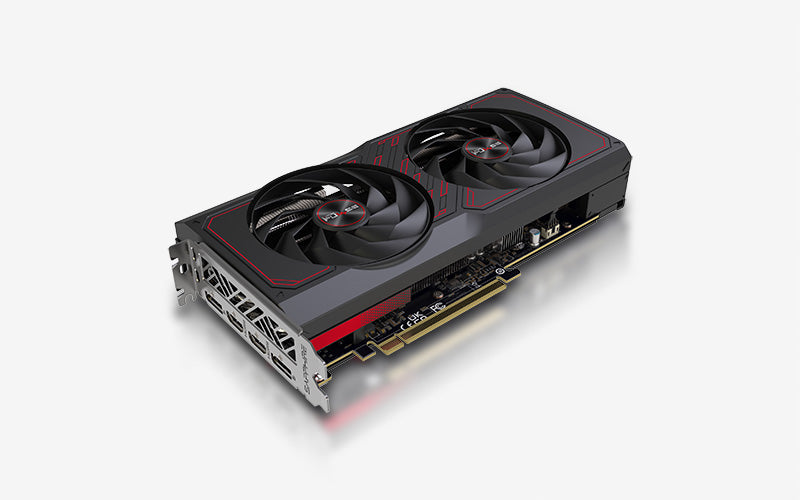

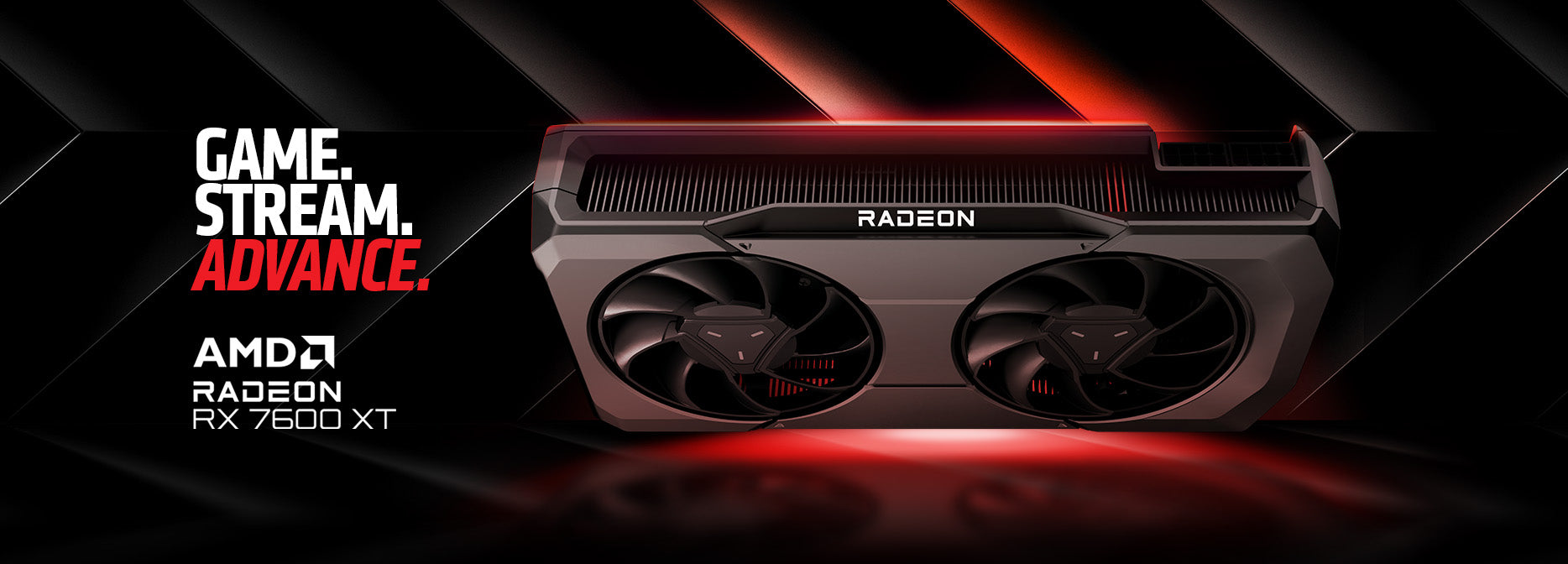

SAPPHIRE PULSE AMD Radeon RX 7600 XT 16GB GDDR6 Gaming Graphics Card
SAPPHIRE PULSE AMD Radeon RX 7600 XT 16GB GDDR6 Gaming Graphics Card
Couldn't load pickup availability
SAPPHIRE PULSE AMD Radeon™ RX 7600 16GB
FEATURES
- GPU : Boost Clock: Up to 2810 MHz
- GPU : Game Clock: Up to 2539 MHz
- Memory : 16GB/128 bit DDR6. 18 Gbps Effective
- Stream Processors : 2048

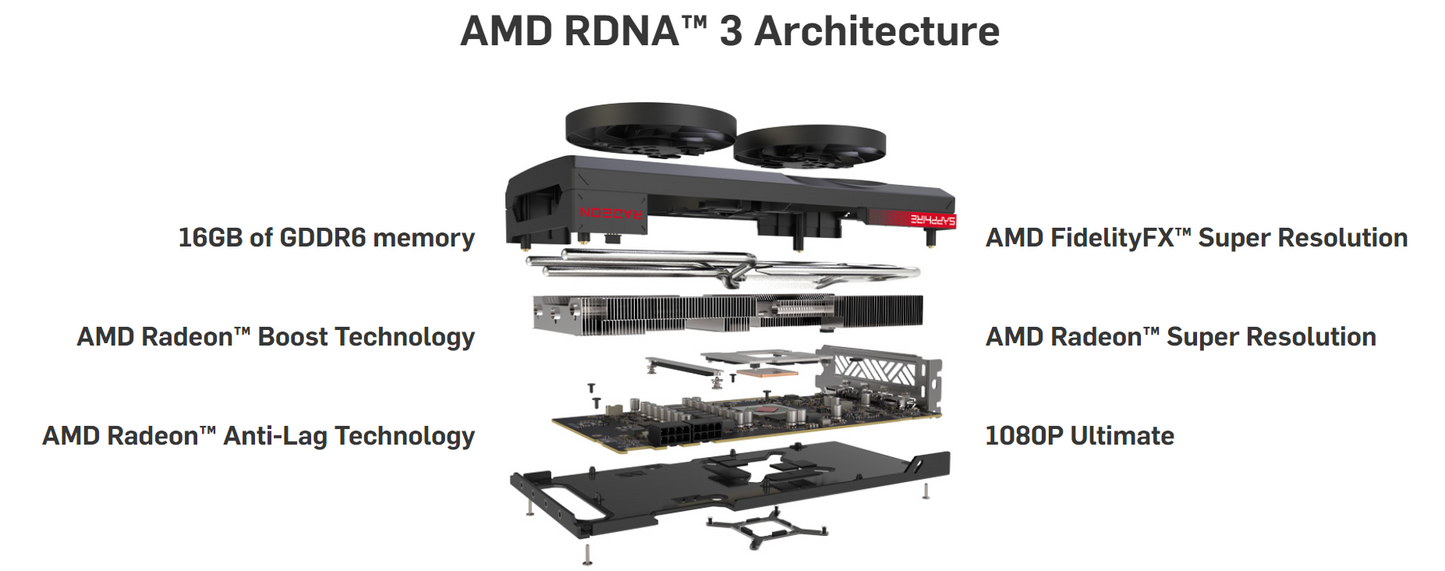

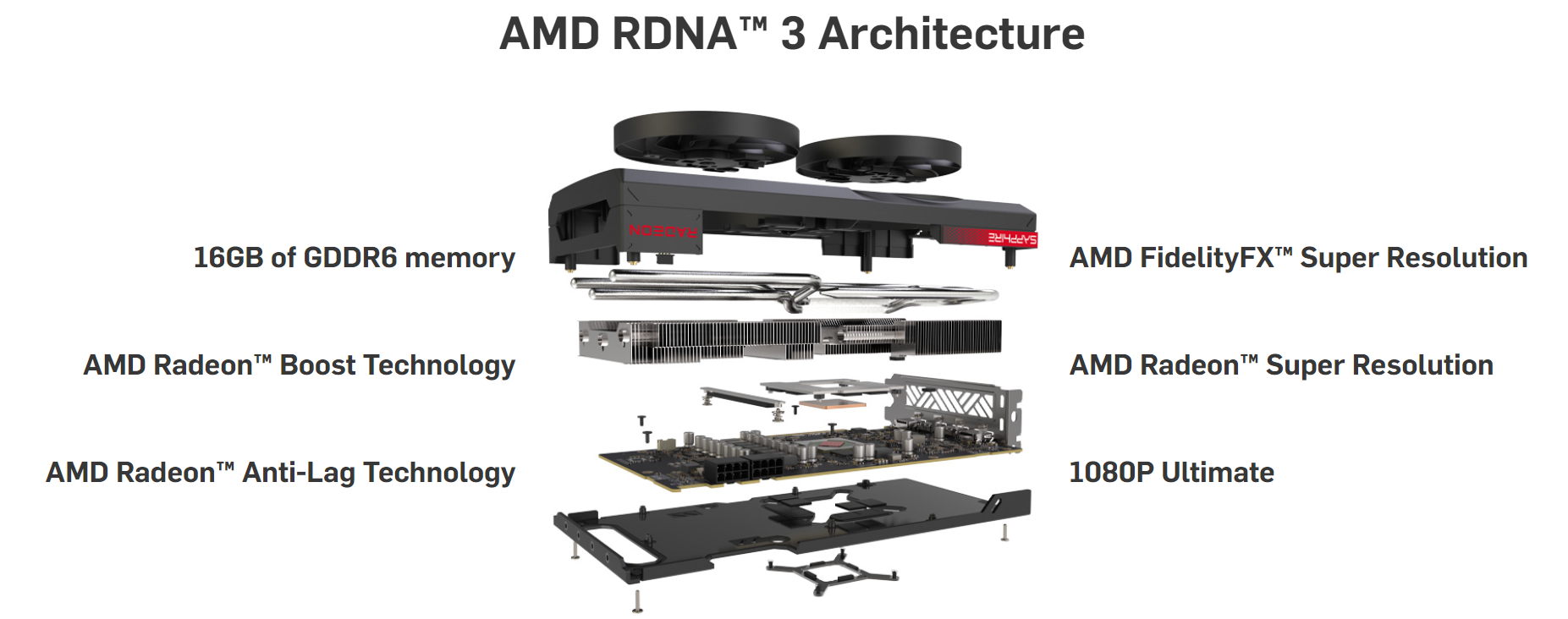

- RDNA™ 3 Architecture
- Ray Accelerator : 32
-
AI Accelerator : 64
SPECIFICATIONS
GPU :
• AMD Radeon™ RX 7600 Graphics Card
• AMD RDNA™ 3 Architecture
Engine Clock :
• Boost Clock: Up to 2810 MHz
• Game Clock: Up to 2539 MHz
• Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
• Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors : 2048
Compute Units : 32 CU
Infinity Cache : 32MB
Ray Accelerators : 32
AI Accelerator : 64
Memory Size/Bus : 16GB/128 bit GDDR6
Memory Clock : 18 Gbps Effective
Displays : Maximum 4 Displays
Resolution :
• HDMI™: 7680×4320
• DisplayPort 2.1: 7680×4320
Interface : PCI-Express 4.0 x8
Output :
• 2x HDMI
• 2x DisplayPort
BIOS Support : UEFI
Game Index : 1080P Ultimate
Sapphire Features :

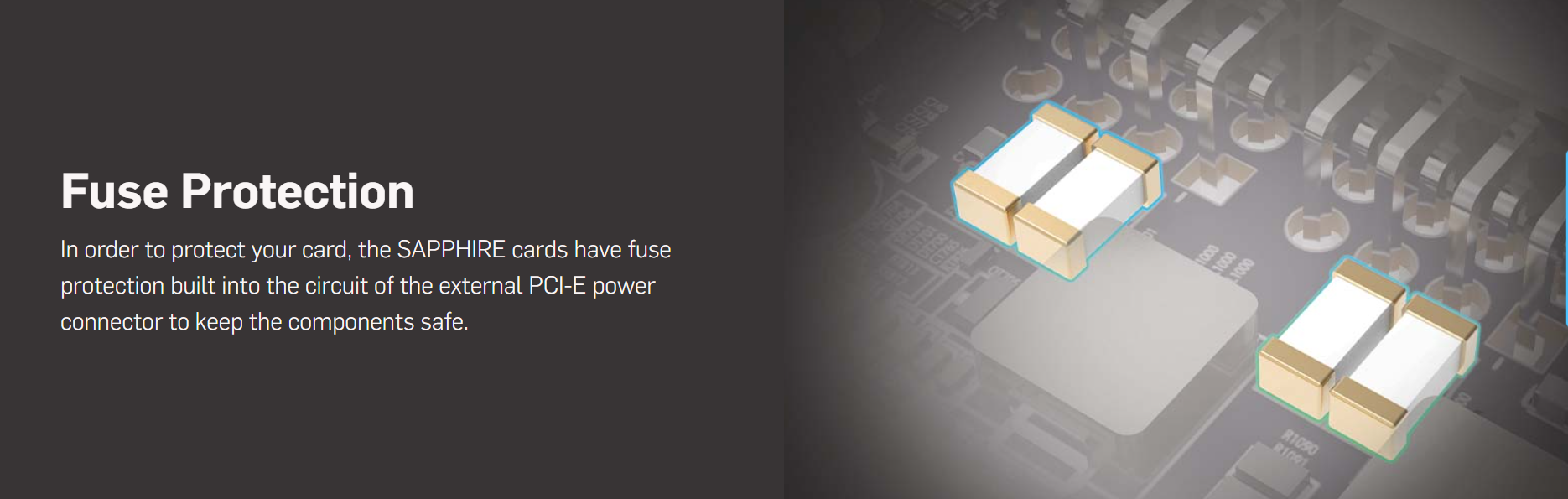

• Fuse Protection
• Dual-X Cooling Technology
• Intelligent Fan Control
• Precision Fan Control

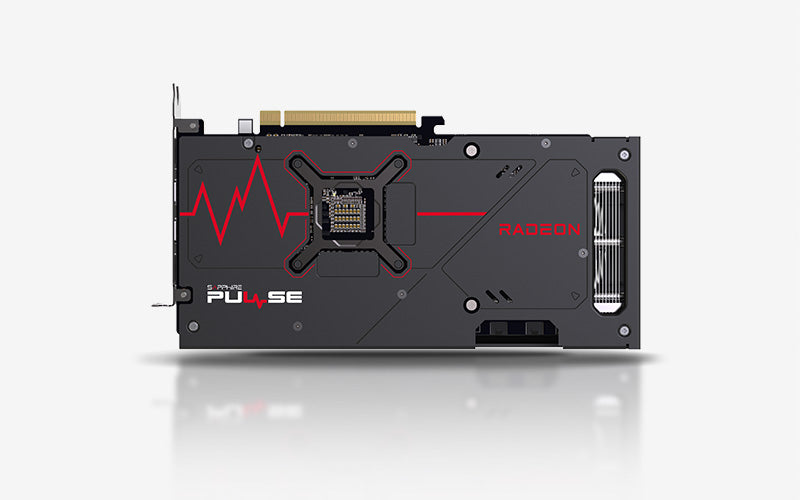

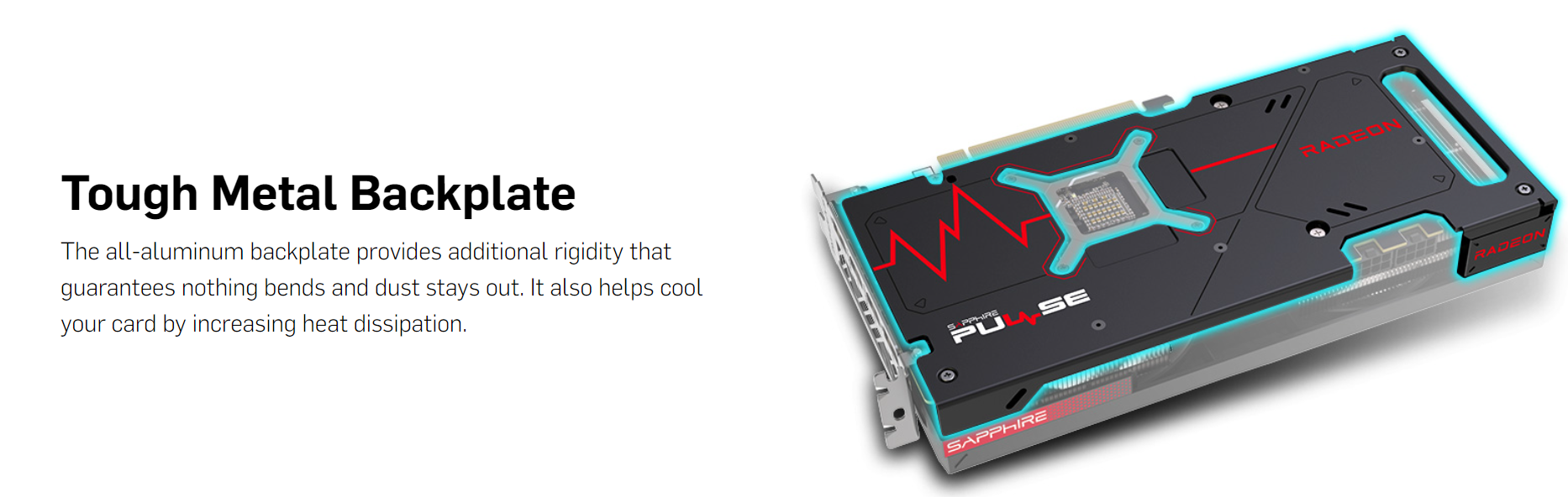

• Metal Backplate

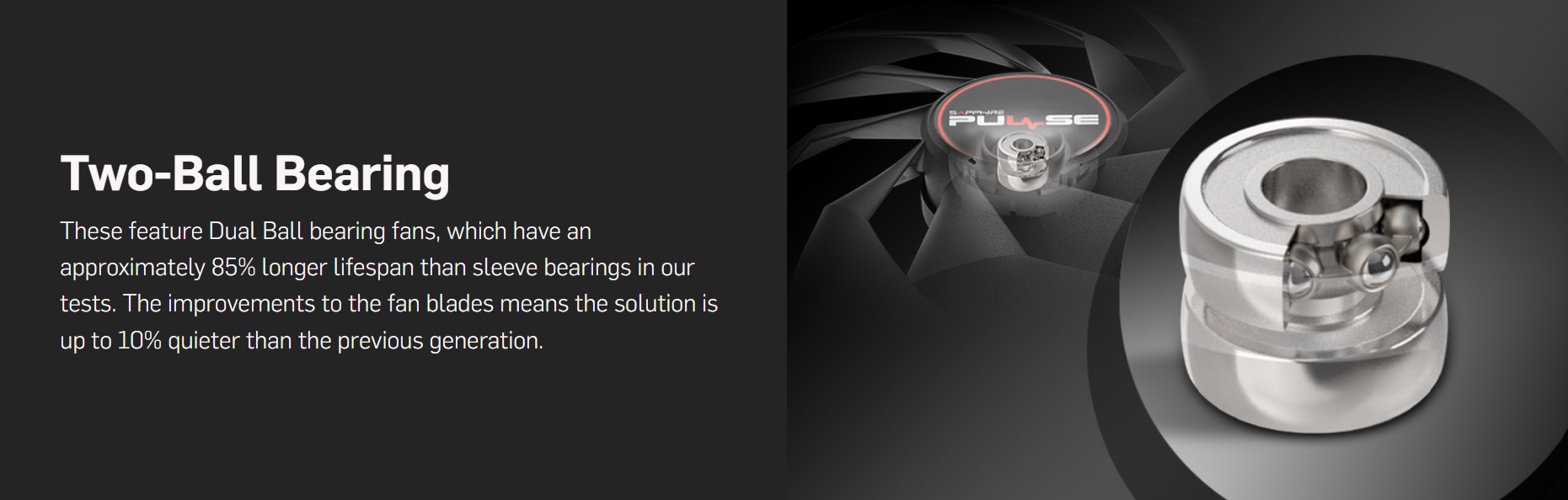

• Two-Ball Bearing Fans

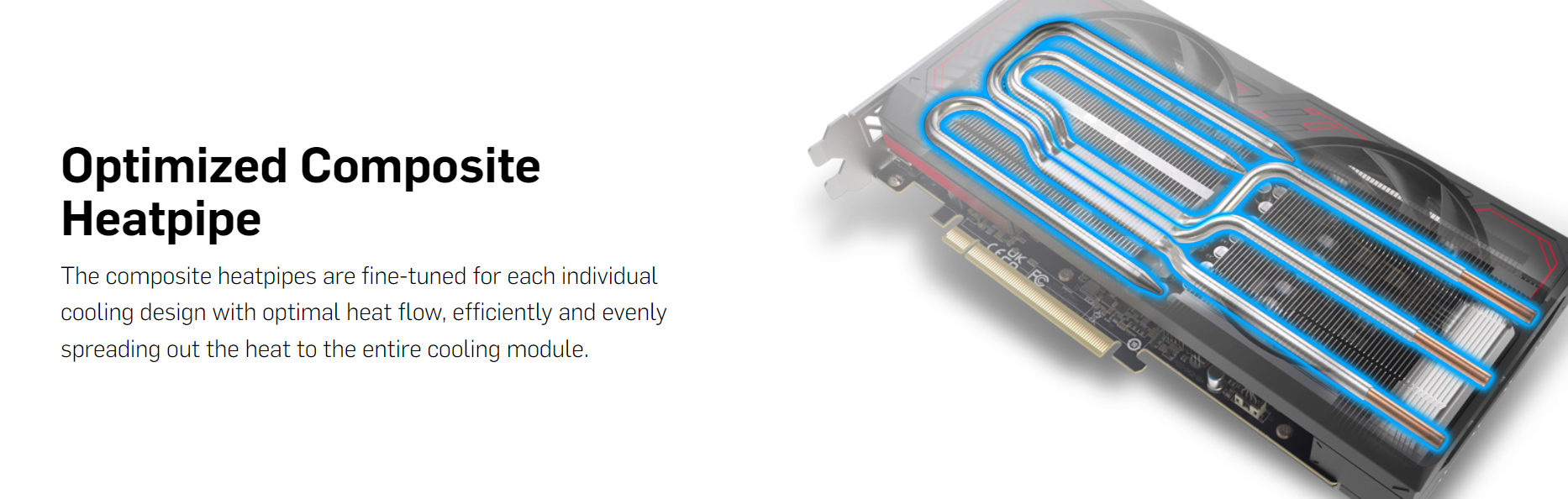

• Optimized Composite Heatpipe
• TriXX Supported
• TriXX Boost
AMD Features :
• AMD RDNA™ 3 Architecture
• DirectX® 12 Ultimate
• AMD Smart Access Memory
• AMD Infinity Cache
• PCI Express 4.0 Support
• AMD FreeSync™ Technology
• DisplayPort 2.1 with DSC
• HDMI™ Support
• Video Streaming up to 8K
• AMD Radeon VR Ready Premium
• AMD Radeon Image Sharpening
• AMD Radeon Anti-Lag
• AMD Software: Adrenalin Edition™ Technology
• Game Driver Optimizations

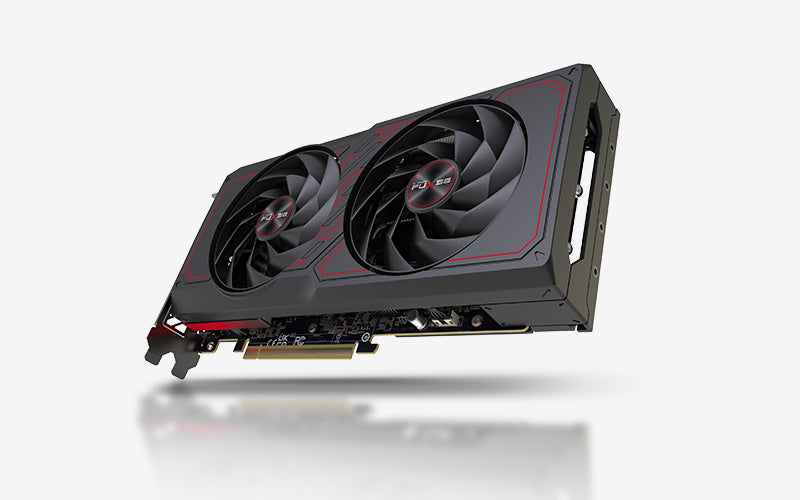

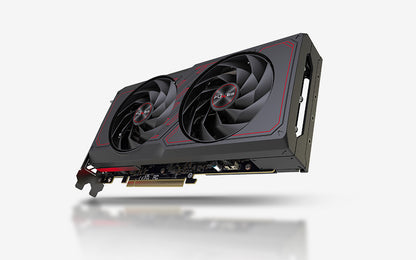

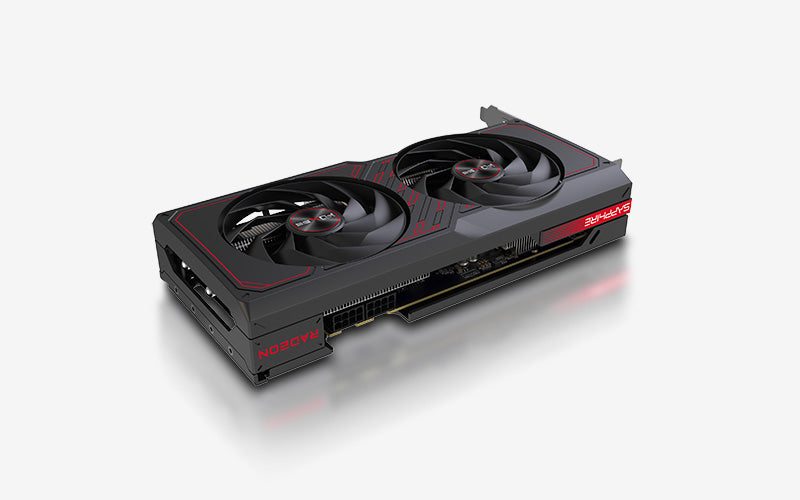

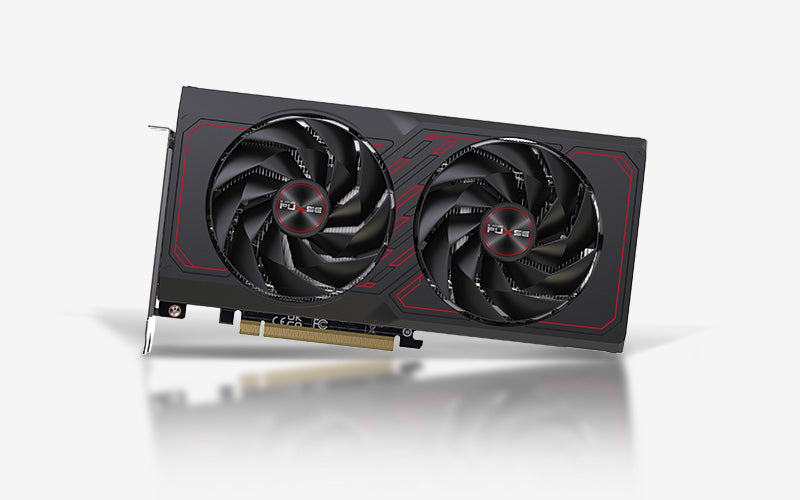

Cooler Type : 2 Fans
Form Factor :
• 2.2 slot, ATX

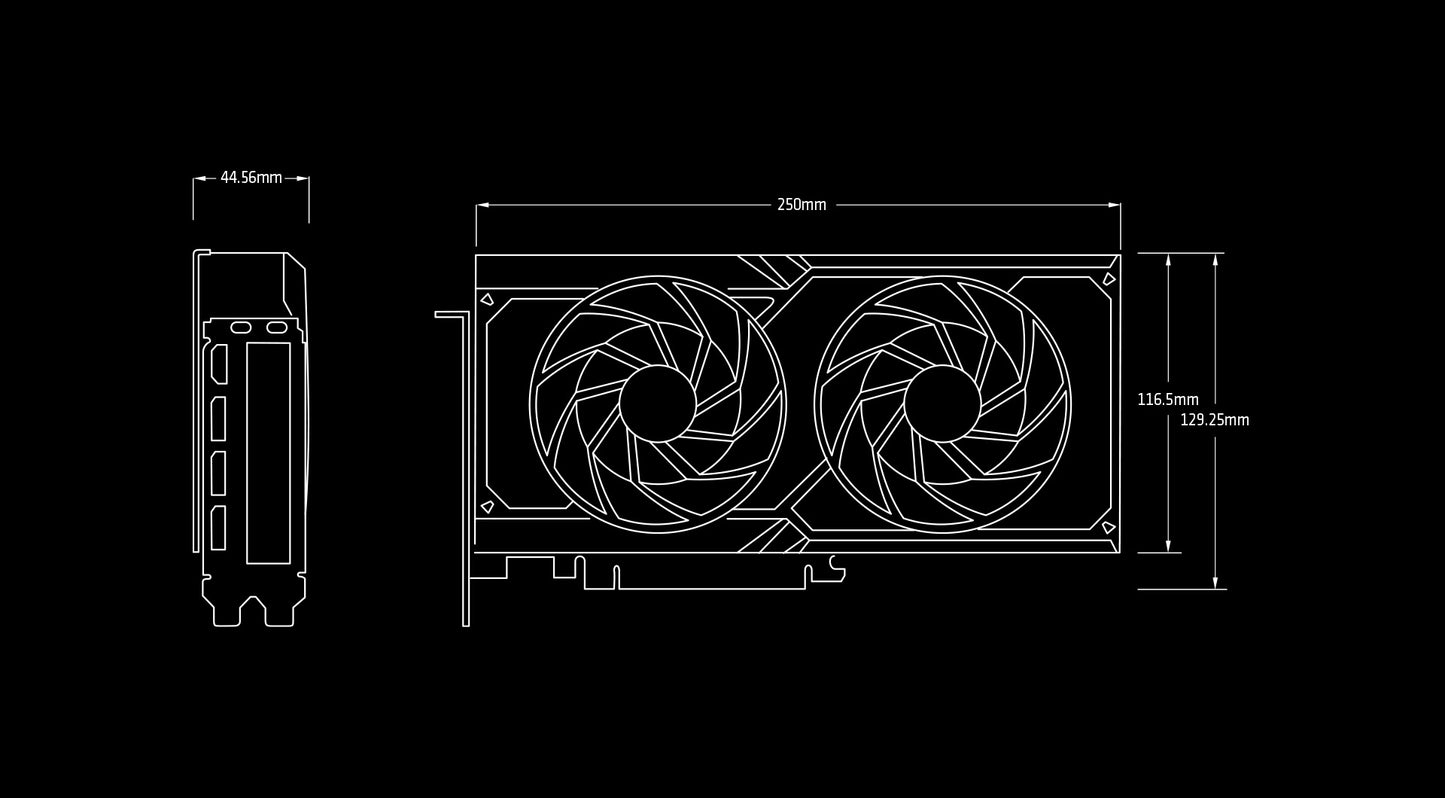

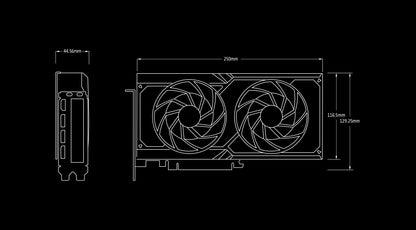

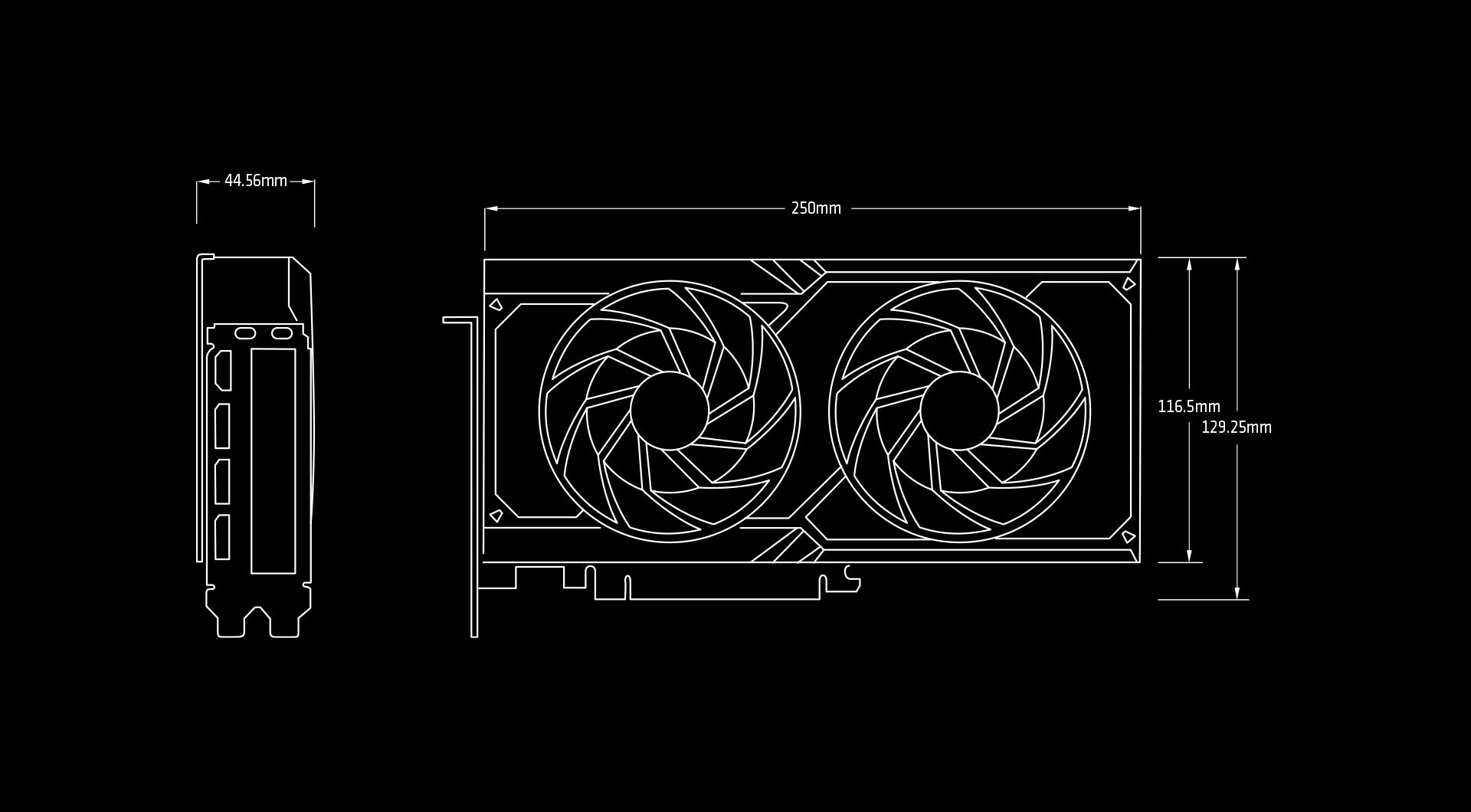

• Dimension: 250(L)X 129.25(W)X 44.56 (H)mm
Power Consumption : 192W Total Board Power
OS : Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement :
• Minimum 600 Watt Power Supply
• 2 x 8-pin Power Connector.
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
