ASUS ROG THOR 1600W Titanium III PCIe 5.1 ATX 3.1 Compatible Fully Modular Power Supply

ROG THOR 1600W Titanium III

Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1600W Titanium III delivers unmatched performance and rock-solid stability for your ultimate PC build

• GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
• "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.
• Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
• Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions.
• ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control.
• Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs.
• ATX 3.1 compatible: ROG Thor Titanium III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware.
• Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety.
• 80 PLUS Titanium certified: ROG Thor Titanium III utilizes low-ESR capacitors and premium components for industry-leading power efficiency.
• 10-year warranty included.


ENGINEERING

GaN MOSFET

The ROG Thor 1600W Titanium III PSU boasts an innovative GaN MOSFET that deliver up to 30% more power efficiency than standard MOSFETs. Plus, the smaller size of a GaN MOSFET allows for a more organized internal layout. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation.

"GPU-FIRST" Voltage Sensing with patented intelligent voltage stabilizer (IVS)

Activate the "GPU-First" voltage sensing by connecting the IVS cable. This innovative feature enhances voltage stability by up to 45%, even during demanding gaming sessions and overclocking scenarios. If you prefer conventional CPU-focused voltage sensing, simply disconnect the IVS cable. With this advanced technology, you can experience smooth and consistent gaming.
*Disclaimer: The "GPU-First" intelligent voltage stabilizer is designed exclusively for 16-pin PCIe power cables. This feature is not available for 8-pin PCIe power cables.

High-performance Copper Pins

Upgraded PCIe^® connectors feature superior thermal conductivity to help ensure cooler operation and improved power delivery efficiency. This translates to a significant 29% reduction in connector temperatures (up to 12.3°C), promoting optimal performance and stability for even the most demanding graphics cards.

ATX 3.1 Compatible

ATX 3.1 ushers in tighter voltage and current regulation standard for next-gen hardware - and the ROG Thor 1600W Titanium III arrives ahead of the curve with full compliance. A 16-pin PCIe cable capable of sending up to 600 watts of power to PCIe 5.1 graphics cards is bundled with this PSU, readying your build for the next gen.
*Please see the FAQ section for specific instructions on the proper usage of this advanced 16-pin cable.

80 PLUS & Cybenetics Titanium Certification

The ROG Thor 1600W Titanium III utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable 80 PLUS Titanium certification, which guarantees 90% efficiency at 100% load and 94% efficiency at 50% load. It also earns the Cybenetics Titanium efficiency certification. The increased efficiency results in less heat, reduced fan noise, and increased reliability.

COOLING

ROG Heatsinks

Cool under pressure - ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

Dual-Ball-Fan Bearings

2X longer lifespan - Dual-ball bearings boast a remarkable lifespan of up to 80,000 hours, twice as long as sleeve bearings and exceeding even fluid dynamic bearings. This helps to ensure long-lasting and reliable cooling with minimal noise for the ROG Thor 1600W Titanium III.

0dB Technology

Quiet intelligence - To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is at 20% or below.
*In 0dB mode (button pressed), the fan continues to spin when transitioning from high to low loads, ensuring safe temperatures are reached before stopping.

EXPERIENCE

Magnetic OLED Display

This detachable magnetic OLED display showcases real-time power draw, providing insights to your system's performance and efficiency. The magnetic attachment can be swapped to either side of the unit for fan-up or fan-down PSU installation, depending on the design of your case, so you can maintain optimal airflow without compromising monitoring.

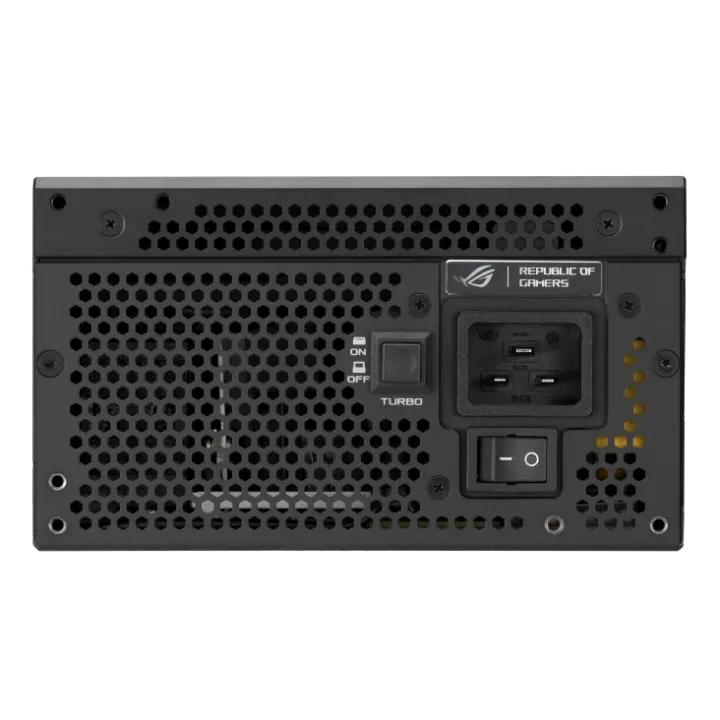

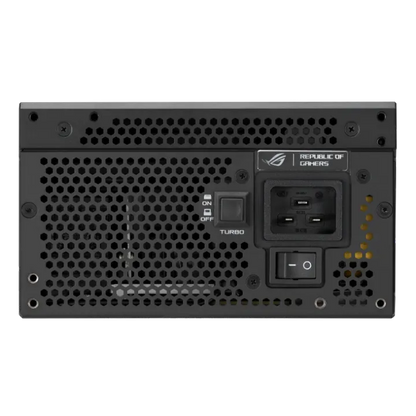

Turbo Mode

Turbo Mode unlocks support for extended power excursions, courtesy of a fine-tuned fan curve and premium components. Enjoy unwavering performance when you need it most, and switch between peak performance and ultimate silence with just a press of the Turbo Mode button on the rear of the PSU.

Etched Cables

Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.

DIY-friendly CPU Power Connector

Engineered with a distinct clip between the 4+4 pin connectors and a unique color scheme, this CPU power cable simplifies cable identification during installation. The integrated clip helps to ensure a secure and effortless connection to the motherboard's CPU power connector, streamlining the build process and instilling confidence in your PC setup.

10-year Warranty - A decade of power

We're so confident about the reliability of the ROG Thor 1600W Titanium III that we back it with a 10-year warranty.
*Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.

TECH SPECIFICATIONS

• Model: ROG THOR 1600W Titanium III
• PFC Type: Active PFC
• ATX Standard: ATX 3.1
• Dimensions: 200 x 150 x 86 mm
• Efficiency: 80Plus Titanium
• MTBF: 120,000 hrs @ 25°C
• Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
• Hazardous Materials: ROHS
• AC Input Range: 100-240Vac
• DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
• Maximum Load: 30A 25A 133.3A 0.3A 3A
• Combined Load: 125W 125W 1600W 3.6W 15W
• Total Output: 1600W

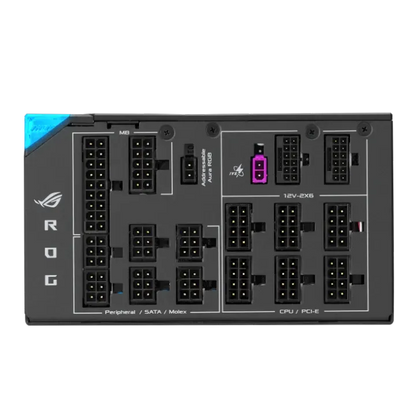

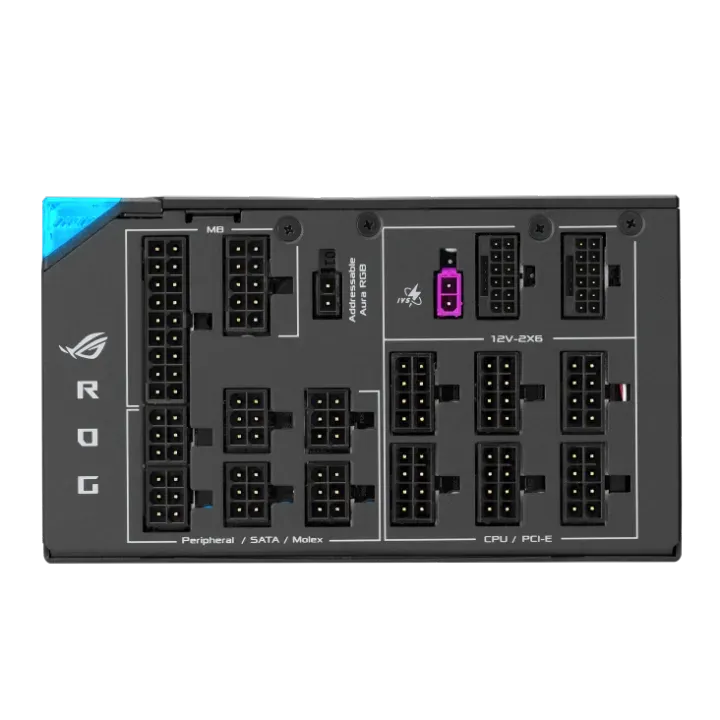

• Cable Connectors:
  • MB 24/20-pin x 1
  • CPU 4+4-pin x 2
  • PCI-E 6+2-pin x 4
  • PCI-E 16-pin x 2
  • SATA x 10
  • PERIPHERAL x 9


• Package Contents:
  • Power Cord x 1
  • Motherboard Power Cable x 1 (610mm)
  • CPU Cable x 2 (1000mm)
  • PCI-E Gen 5.1 16-pin Cable x 2 (750mm)
  • PCI-E Cable 1-to-1 x 4 (750mm)
  • SATA Cable 1-to-4 x 1 (400+120+120+120mm)
  • SATA Cable 1-to-3 x 2 (400+120+120mm)
  • Peripheral 1-to-3 x 3 (400+150+150mm)
  • Addressable RGB Cable x 1 (800mm)
  • ROG sticker x 1
  • ROG cable tie x 6
  • Chassis Screws Package x 1
  • Cable Tie x 12
  • User Manual x 1


• Weight: 2.80 kg (single PSU)
• AURA SYNC: ARGB

• Cybenetics Noise Level Certification: TBD
• 0dB Technology: Supported. The fan shuts off entirely when the PSU is under certain load
• 0dB Fan Button: Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
