ASUS

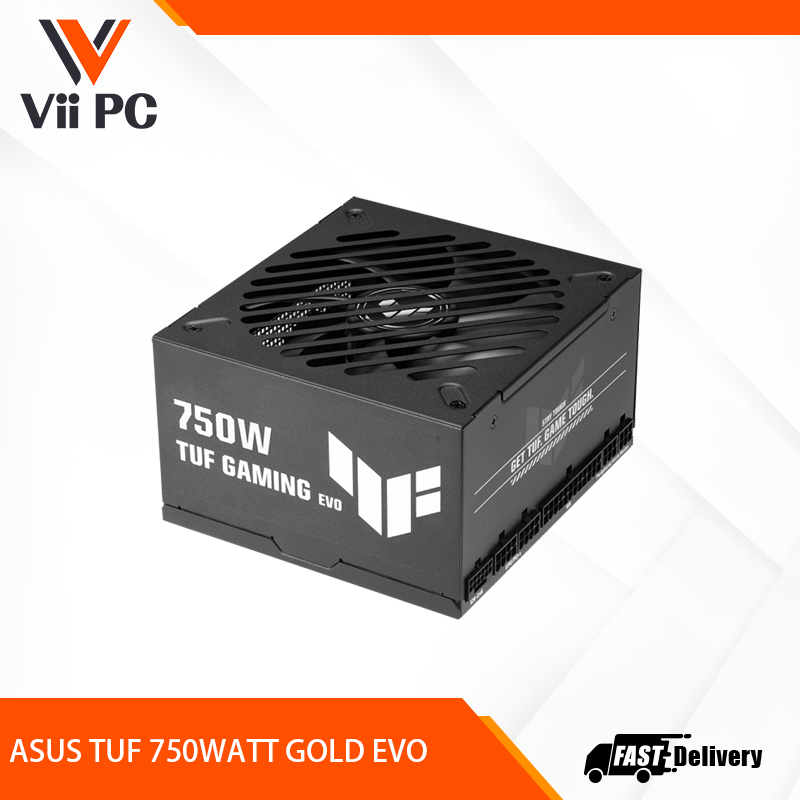

ASUS TUF Gaming 750W GOLD EVO
ASUS TUF Gaming 750W GOLD EVO
Regular price
$125.00 SGD
Regular price
Sale price
$125.00 SGD
Unit price
/
per
Couldn't load pickup availability
Model
TUF-GAMING-750G-EVO
Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
Dimensions
140 x 150 x 86 mm
Efficiency
80Plus Gold
MTBF
>120,000 hrs @ 40°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 62.5A 0.3A 3A
Combined Load
110W 110W 750W 3.6W 15W
Total Output
750W
Cable Connectors
MB 20+4pin x 1
CPU 4+4pin x 2
PCI-E 16pin x 1 (12V-2x6)
PCI-E 6+2pin x 2
SATA x 4
PERIPHERAL x 2
Package Contents
Power Cord x 1
Motherboard Power cable x 1 (500mm)
CPU 1-to-2 Cable x 1 (650mm+100mm)
PCI-E Gen 5.1 Cable (16-pin-to-16-pin) x 1 (500mm)
PCI-E 1-to-2 Cable (8-pin-to-6+2pin*2) x 1 (500+100mm)
SATA & Peripheral 1-to-2+1 Cable x 2 (400+120+120mm)
TUF Gaming Cable Tie x 3
User Manual x 1
Weight
1.32 kg (single PSU)
Cybenetics Noise Level Certification
NA
0dB Technology
No
