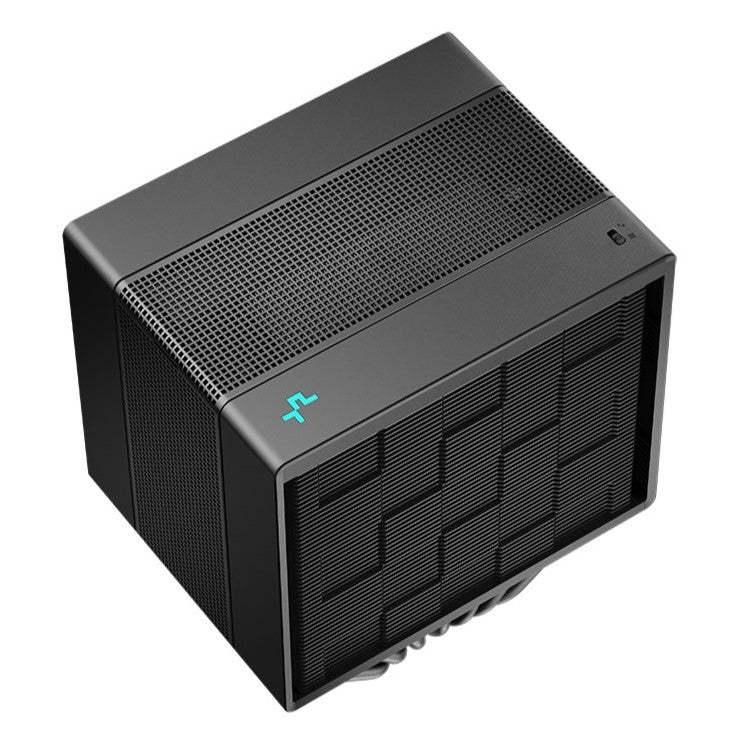

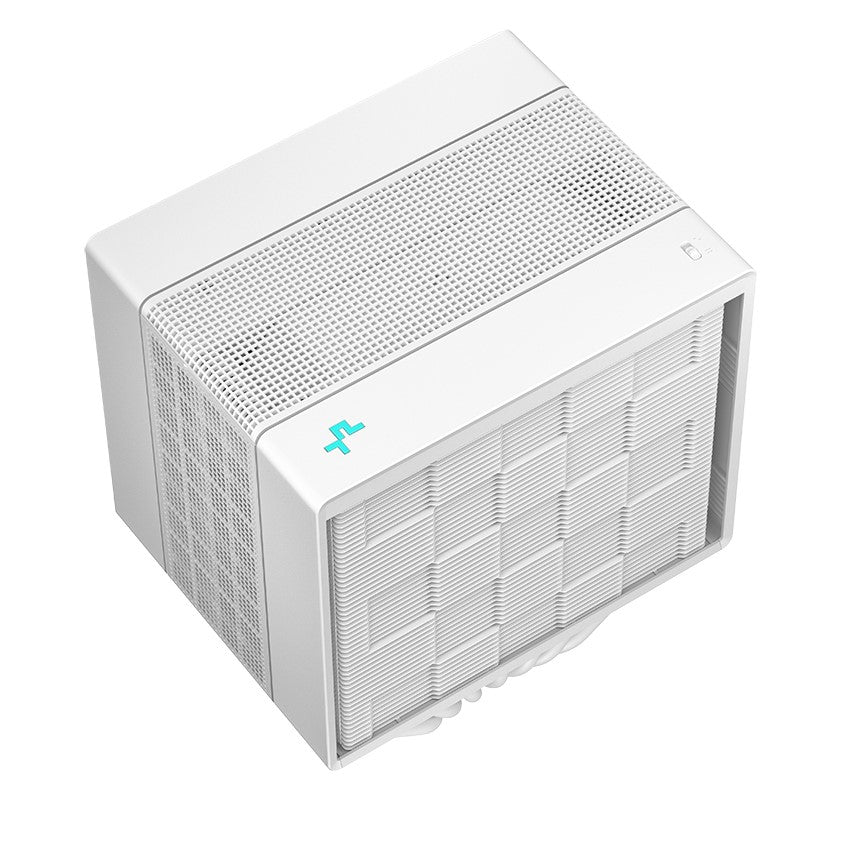

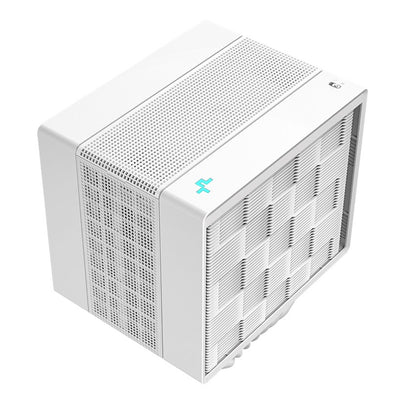

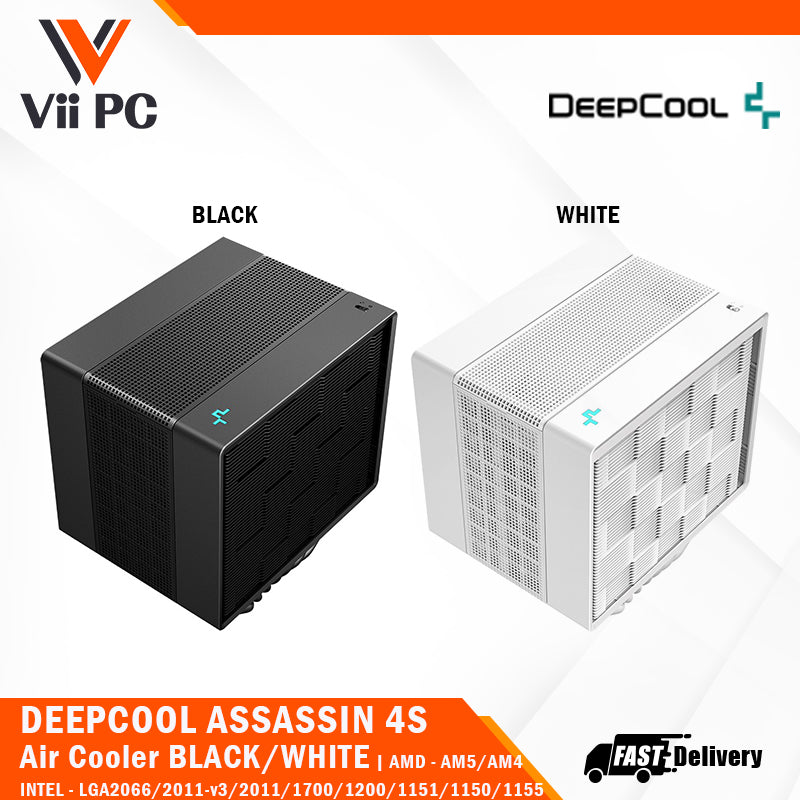

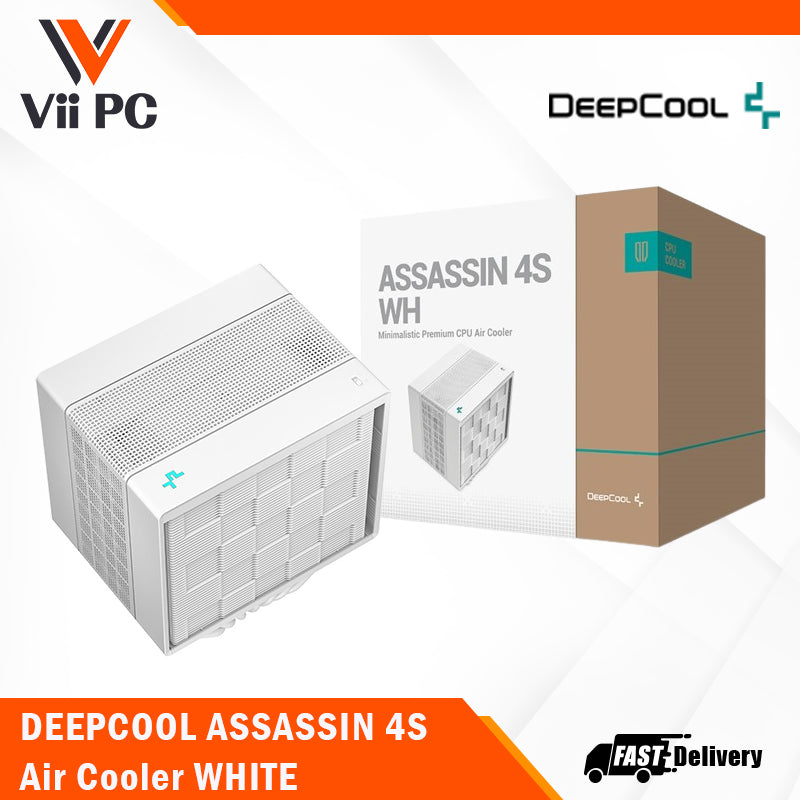

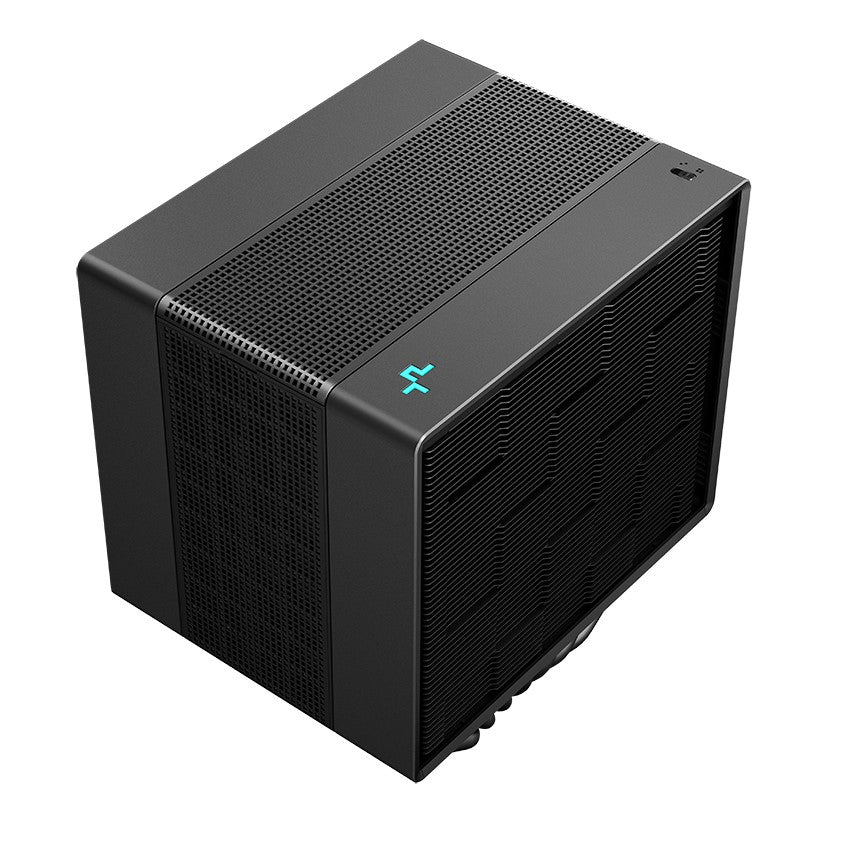

DeepCool ASSASSIN 4S CPU Air Cooler - Single Center 140mm FDB Fan, 7 Copper Heat Pipes, Quiet/Peformance Mode Switch (Black/White)
DeepCool ASSASSIN 4S CPU Air Cooler - Single Center 140mm FDB Fan, 7 Copper Heat Pipes, Quiet/Peformance Mode Switch (Black/White)
Regular price
$129.00 SGD
Regular price
Sale price
$129.00 SGD
Unit price
/
per
Couldn't load pickup availability
ASSASSIN 4S

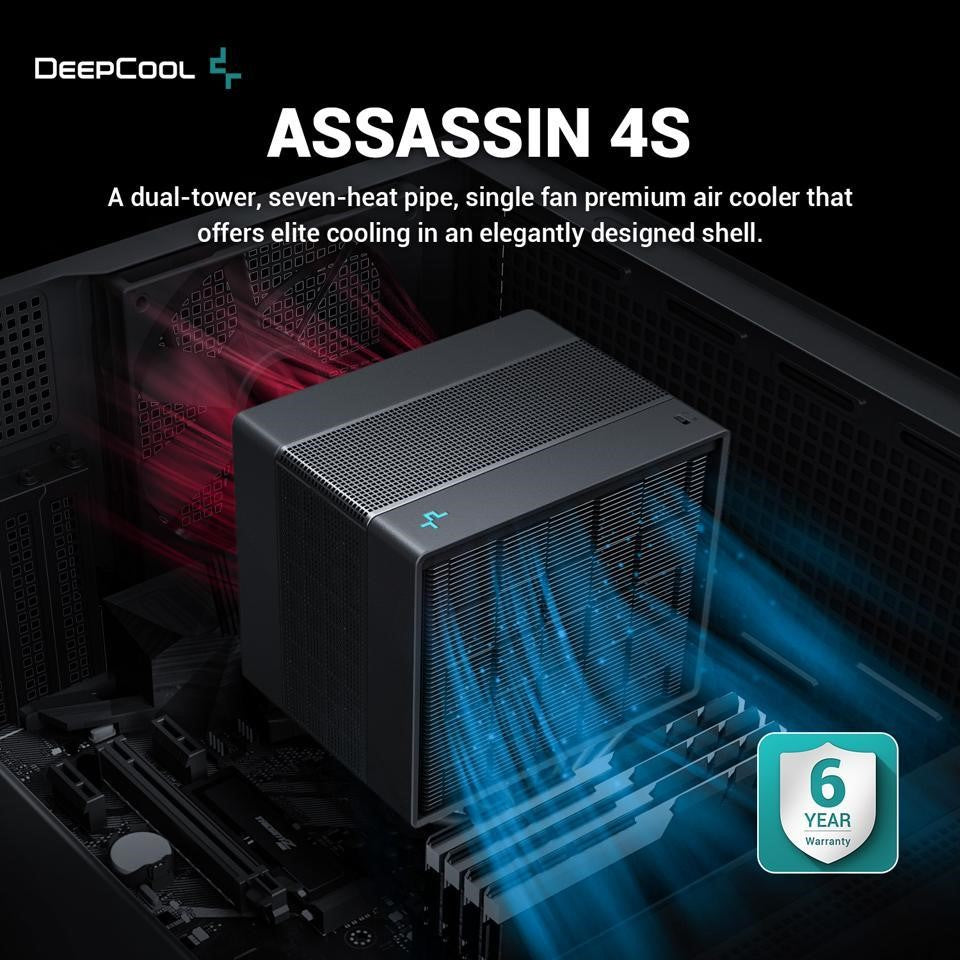

The ASSASSIN 4S provides exceptional performance and is armed with seven 6mm heat pipes and a redesigned 140mm FDB fan. The 4S models eliminate the rear 120mm fan, providing a slimmer, more symmetrical cooler.

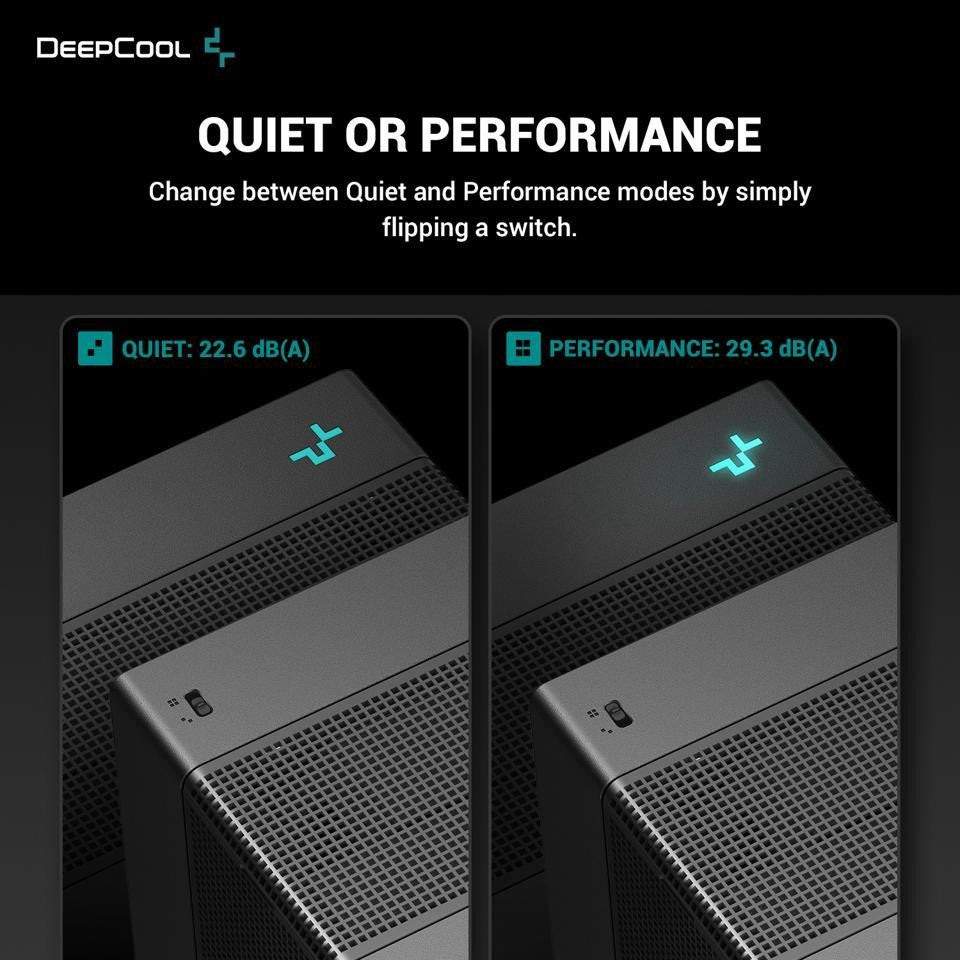

- Quiet or Performance: Change between quiet 22.6 dB(A) and Performance modes by simply flipping a switch.

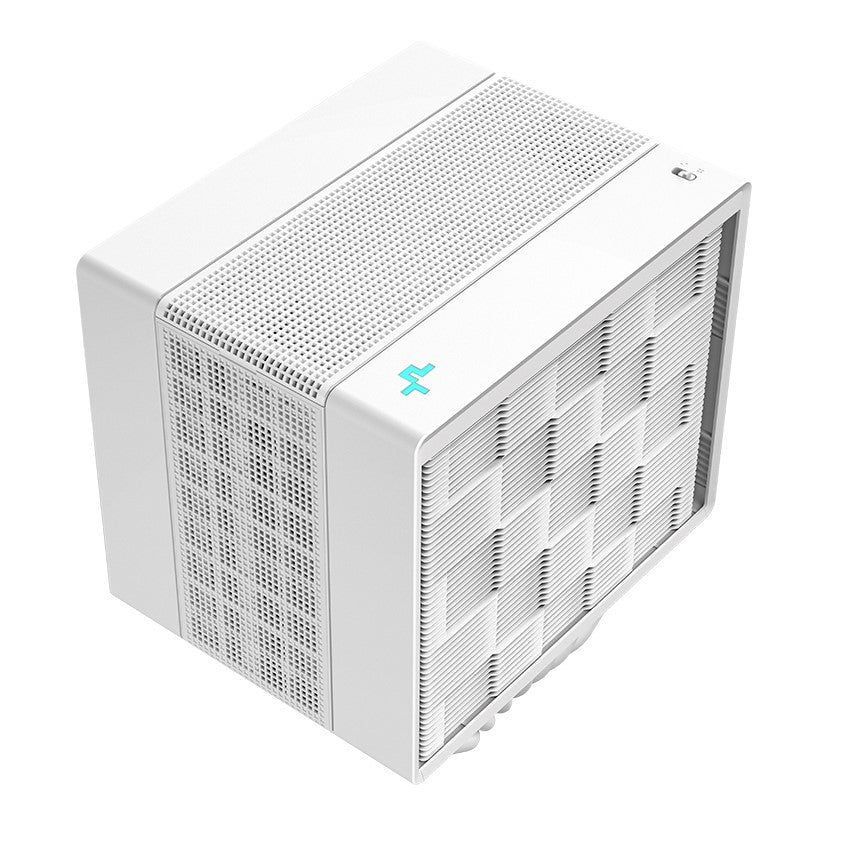

- Sleek, Clean, and Functional: The majestic shroud, which houses dual-tower heat sinks with seven copper heat pipes, channels all the airflow through the entire cooler.

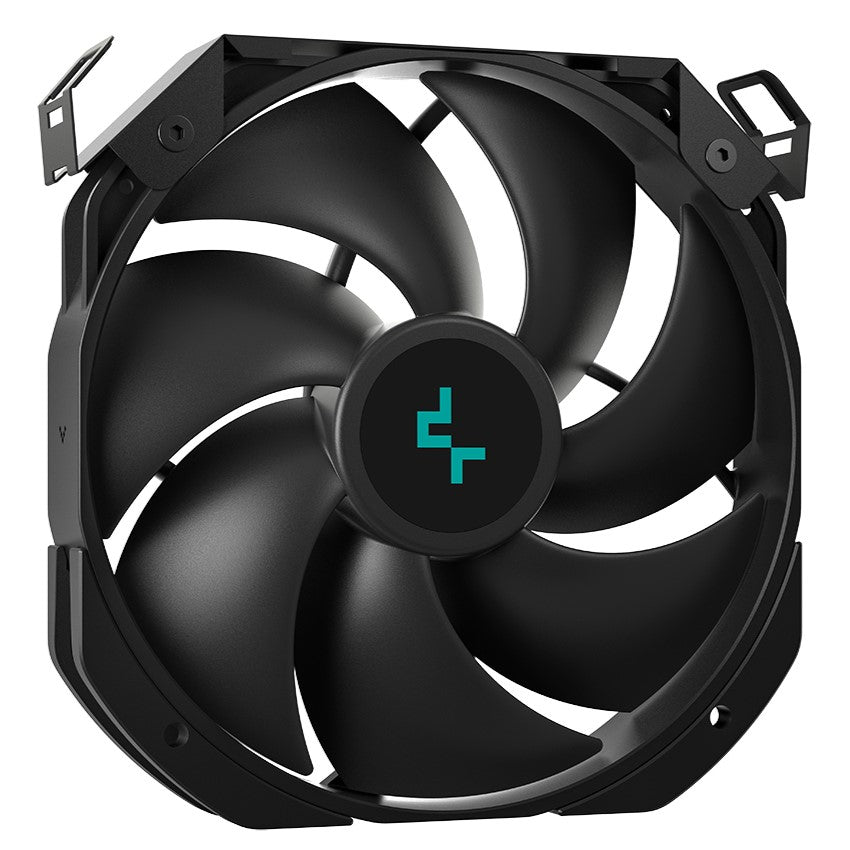

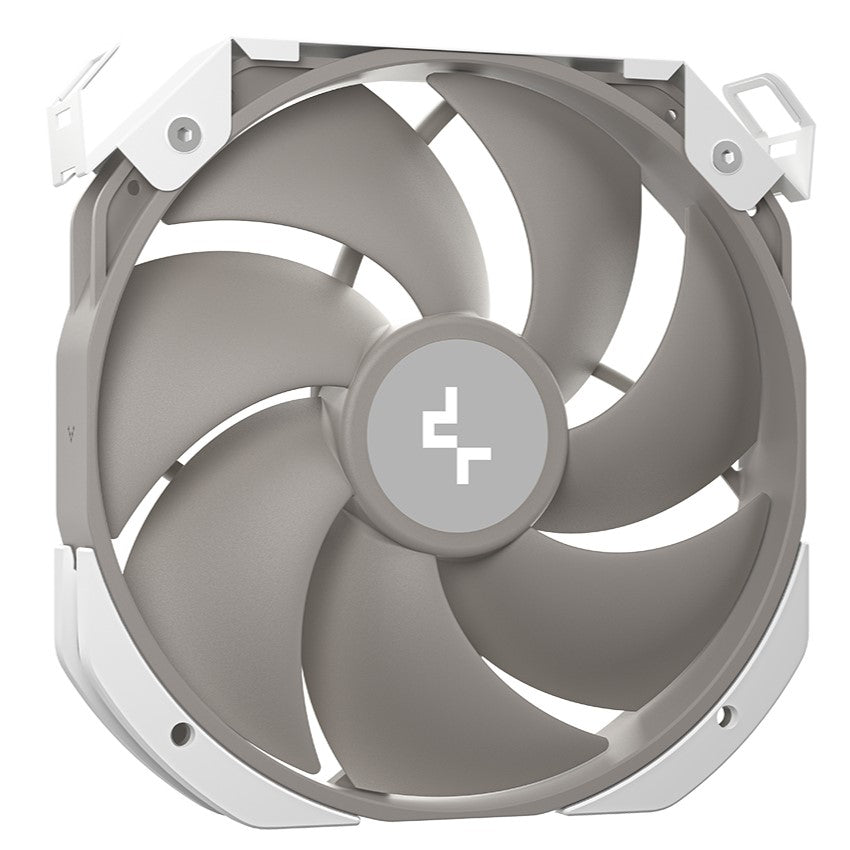

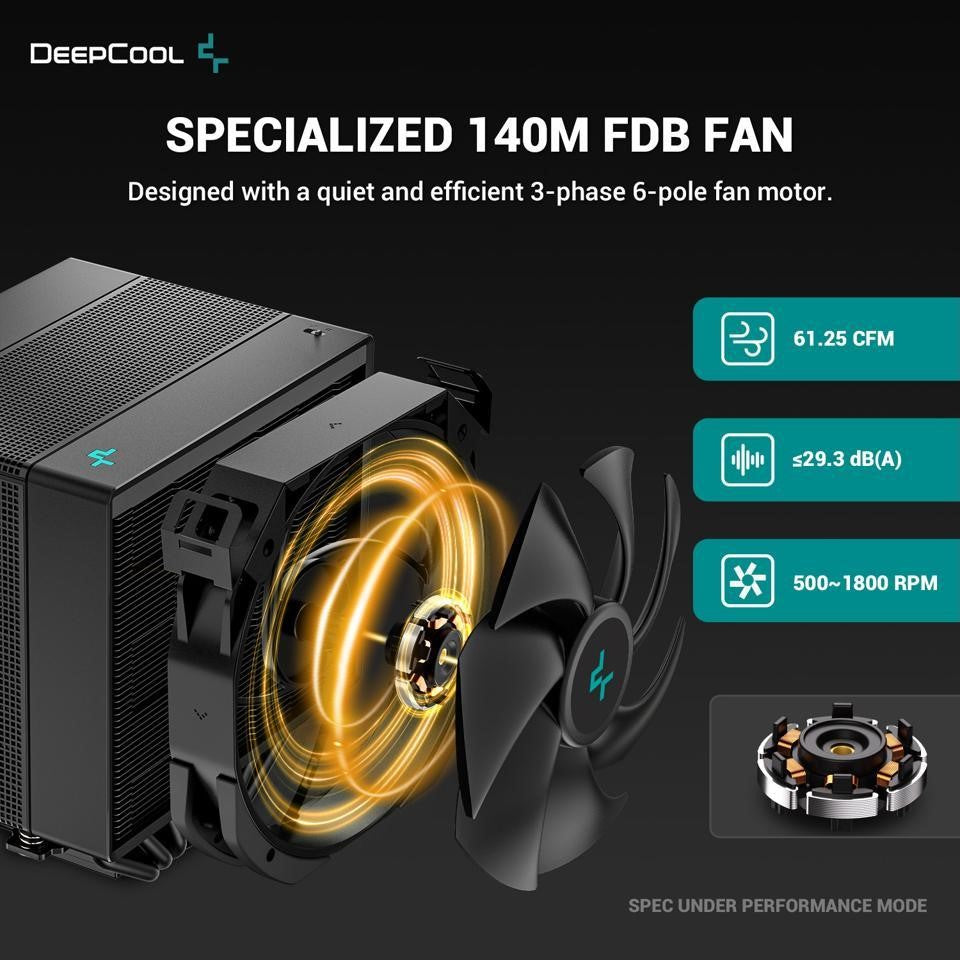

- Specialized 140m FDB Fan: Designed with a quiet and efficient 3-phase 6-pole fan motor, the 140mm fan provides optimal air flow at a low noise level.
- Industrial Grade Thermal Paste: A tube of DeepCool's industrial grade DM9 thermal paste is included.

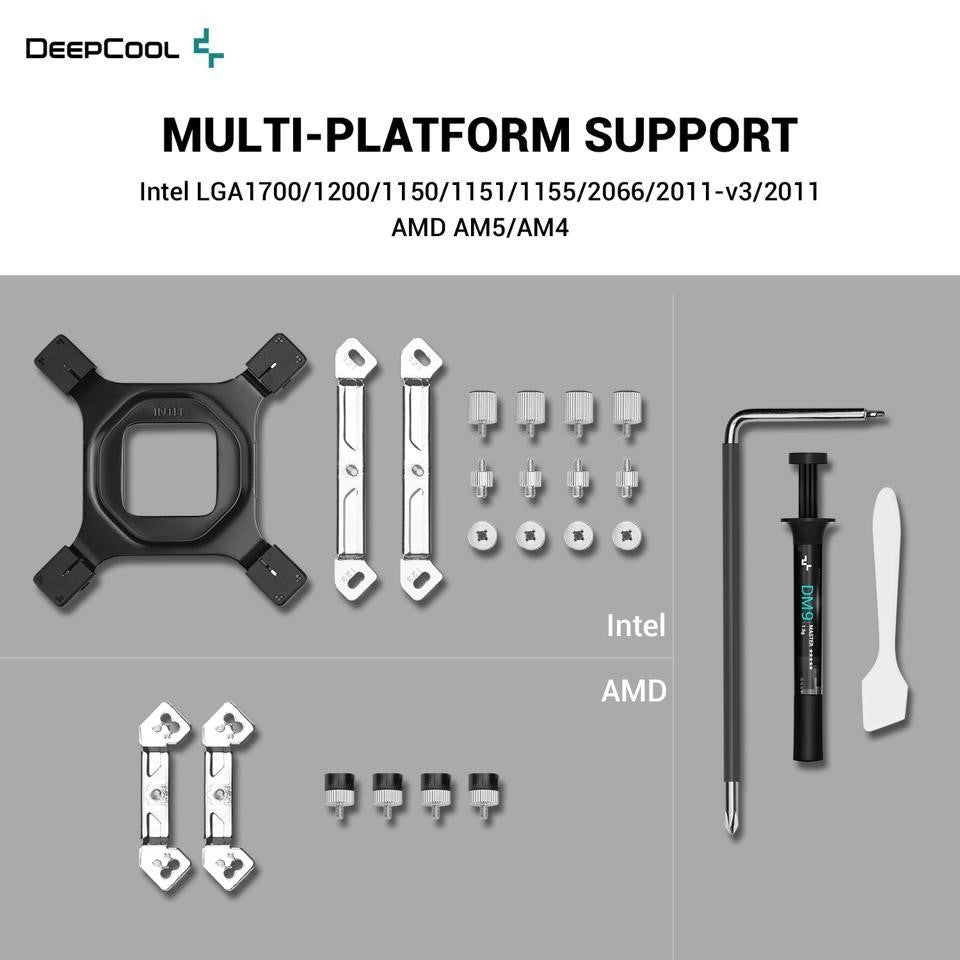

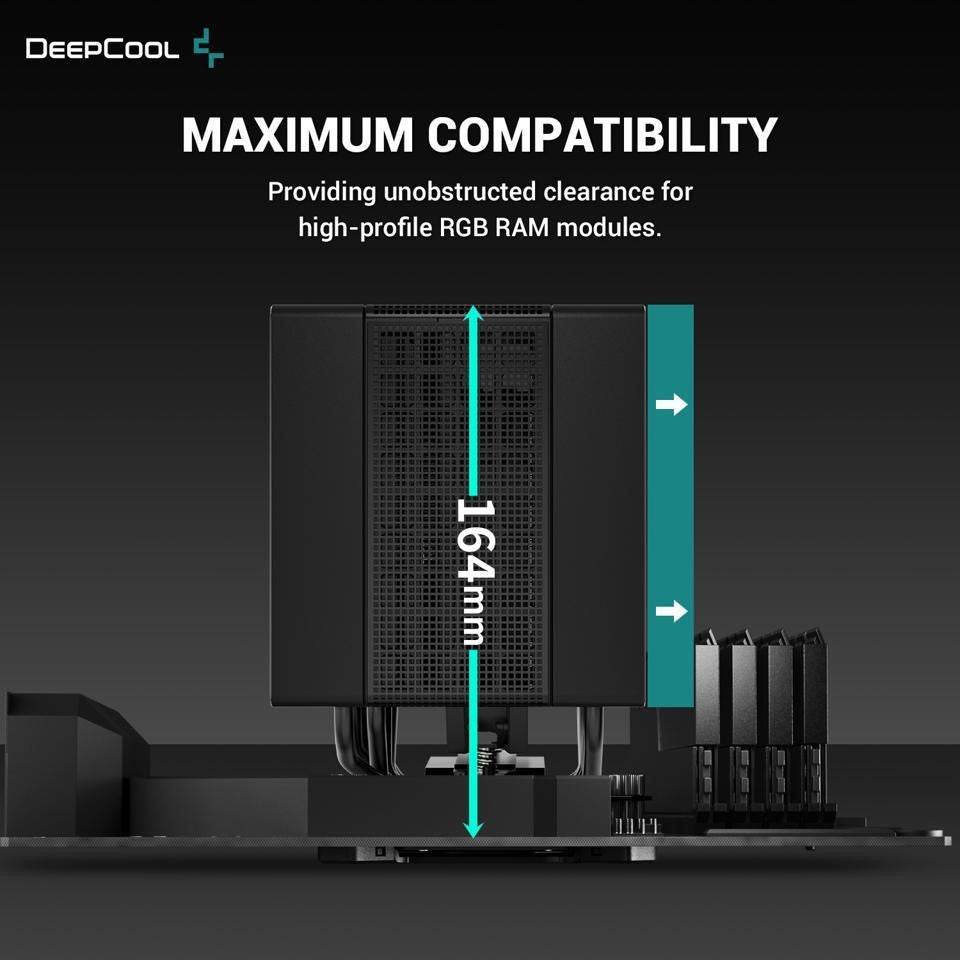

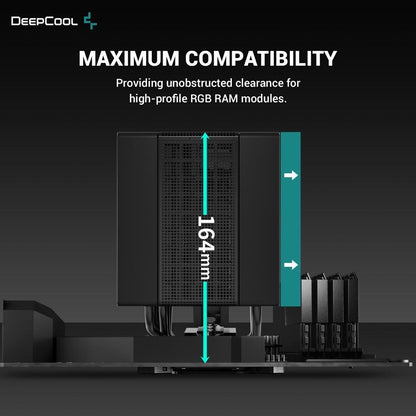

- Maximum Compatibility: Supports the vast majority of modern Intel and AMD CPUs while the relocatable 120mm fan ensures maximum compatibility for high profile RGB RAM modules.
-

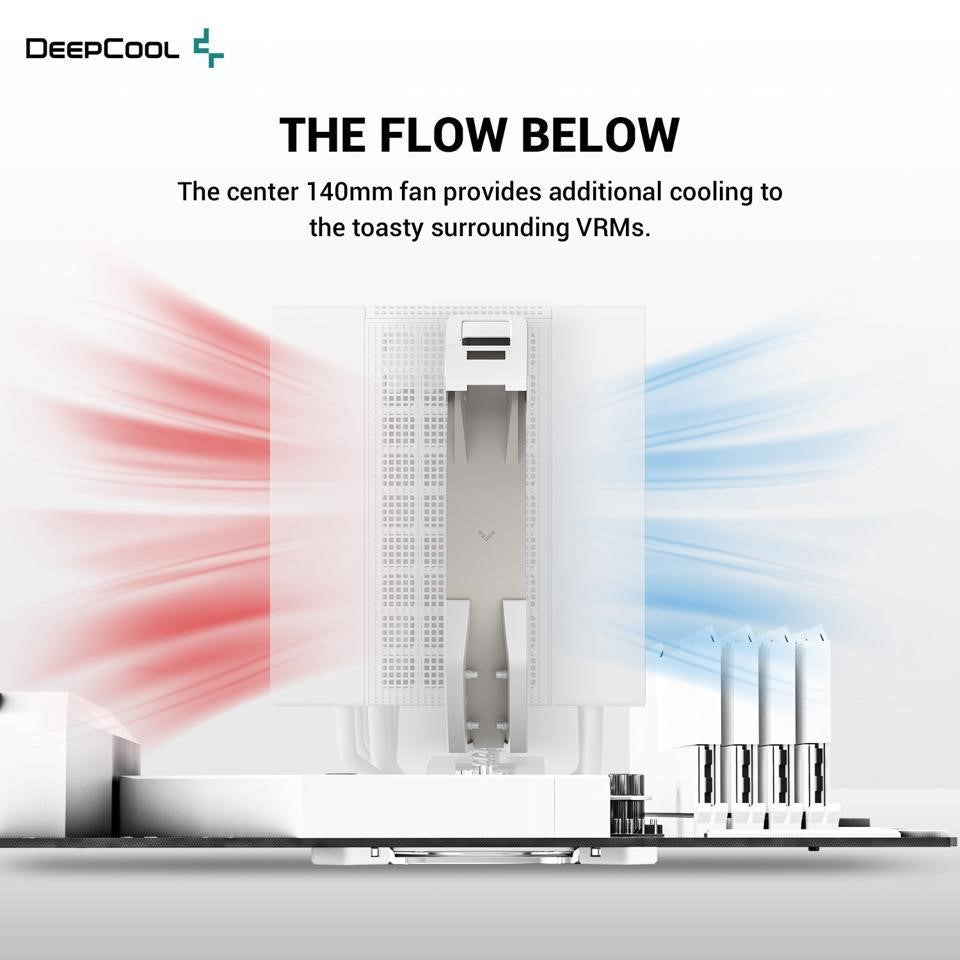

The Flow Below: Due to the center 140mm fan sitting deep into the heart of the Assassin 4S, there is a lower flow of air that provides additional cooling to the toasty surrounding VRMs.
Technical Spec
| Model | ASSASSIN 4S |
| Product Dimensions | 116×147×164 mm (L×W×H) |
| Heatsink Dimensions | 140×110×160 mm (L×W×H) |
| Net Weight | 1380 g |
| Heatpipe | Ø6 mm×7 pcs |
| Fan Dimensions | 140×140×25 mm (L×W×H) |
| Fan Speed (Performance Mode) | 500~1800 RPM±10% |
| Fan Airflow (Performance Mode) | 61.25 CFM |
| Fan Air Pressure (Performance Mode) | 3.76 mmAq |
| Overall Noise (Performance Mode) | ≤29.3 dB(A) |
| Fan Speed (Quiet Mode) | 500~1450 RPM±10% |
| Fan Airflow (Quiet Mode) | 48.55 CFM |
| Fan Air Pressure (Quiet Mode) | 2.46 mmAq |
| Overall Noise (Quiet Mode) | ≤22.6 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.2 A |
| Fan Power Consumption | 2.4 W |
| Rated Voltage | 12 VDC |
| Power Consumption (Performance Mode) | 3.6 W |
| Power Consumption (Quiet Mode) | 2.4 W |
| Application For | AMD: AM5/AM4 Intel: LGA 2066/2011-v3/2011/1851/ 1700/1200/1151/1150/1155 |
