DEEPCOOL

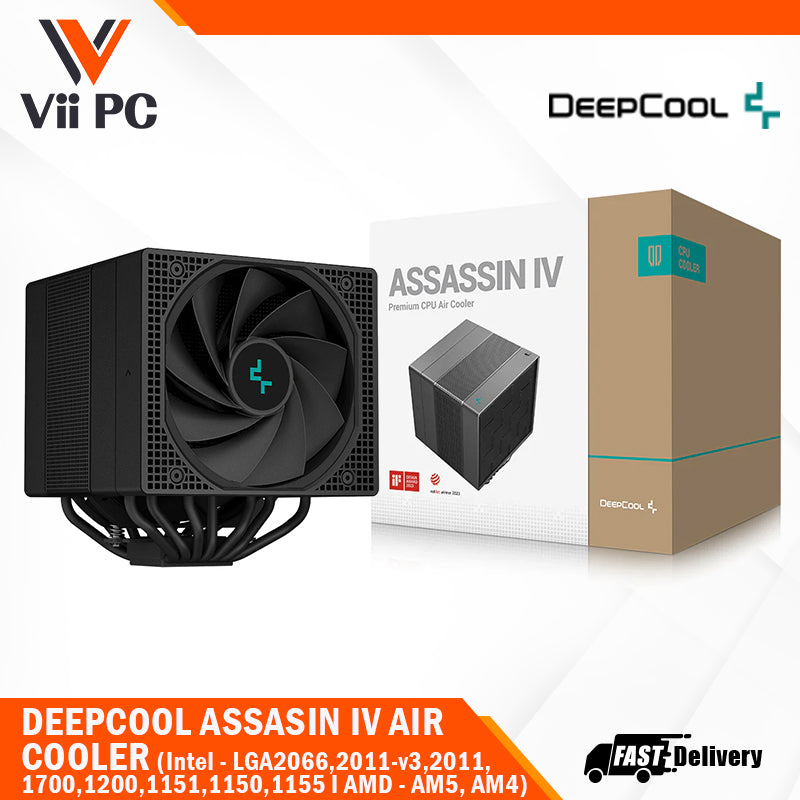

DeepCool ASSASSIN IV Premium CPU Air Cooler, Dual-Tower, 120/140mm FDB Fan Configuration, 7 Copper Heat Pipes, Quiet/Peformance Mode Switch

DeepCool ASSASSIN IV Premium CPU Air Cooler, Dual-Tower, 120/140mm FDB Fan Configuration, 7 Copper Heat Pipes, Quiet/Peformance Mode Switch

Regular price $159.00 SGD
Regular price Sale price $159.00 SGD
Sale Sold out

ASSASSIN IV

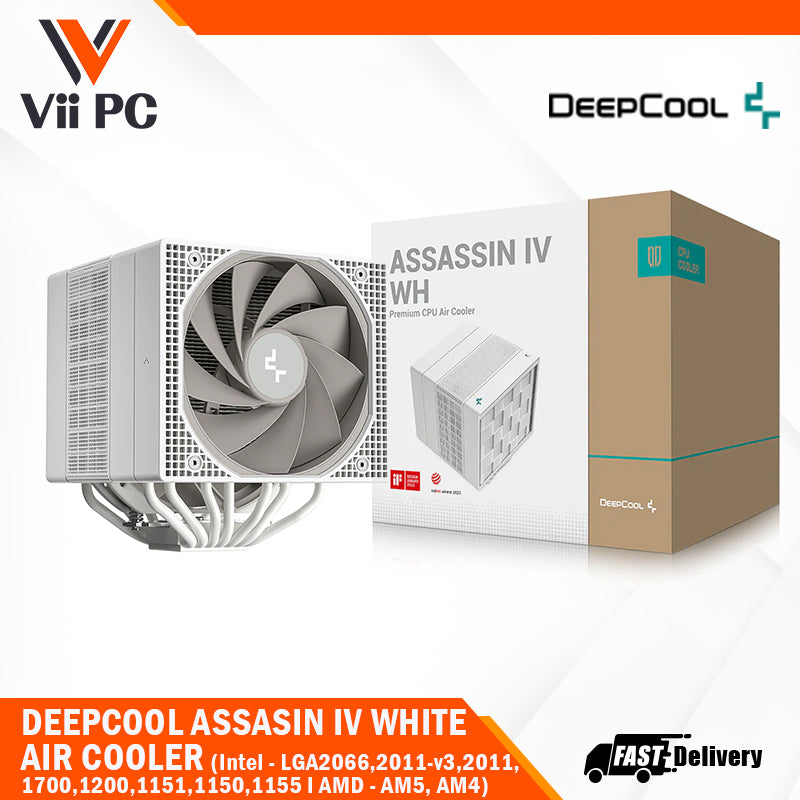

The ASSASSIN returns with a new white aesthetic and efficient cooling capacity. The ASSASSIN IV WH provides exceptional performance and is armed with seven heat pipes and newly designed 120 and 140mm FDB fans.

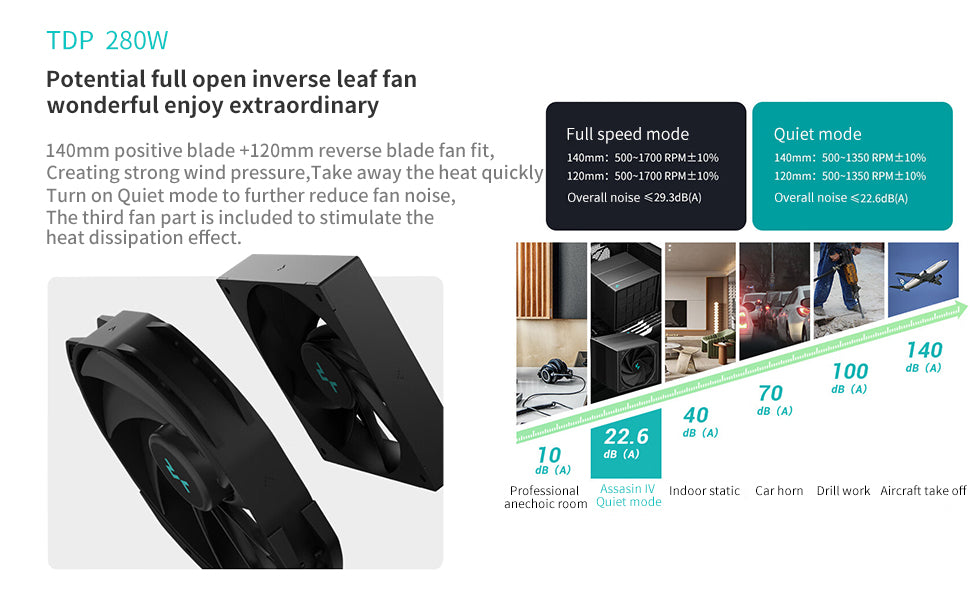

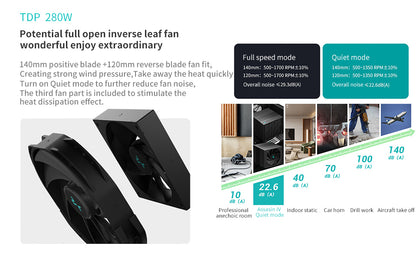

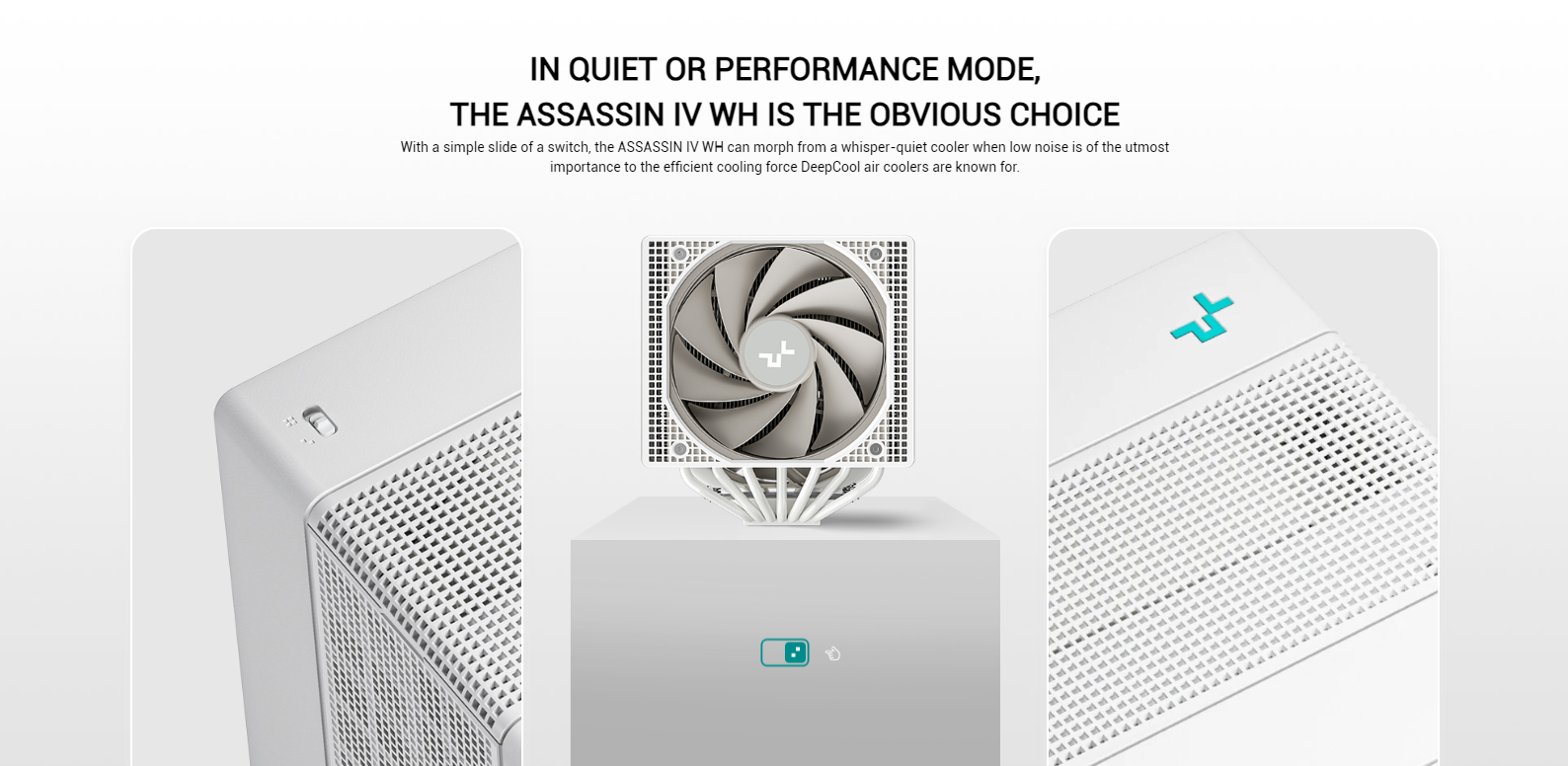

  • Quiet or Performance: Change between quiet 22.6 dB(A) and Performance modes by simply flipping a switch.

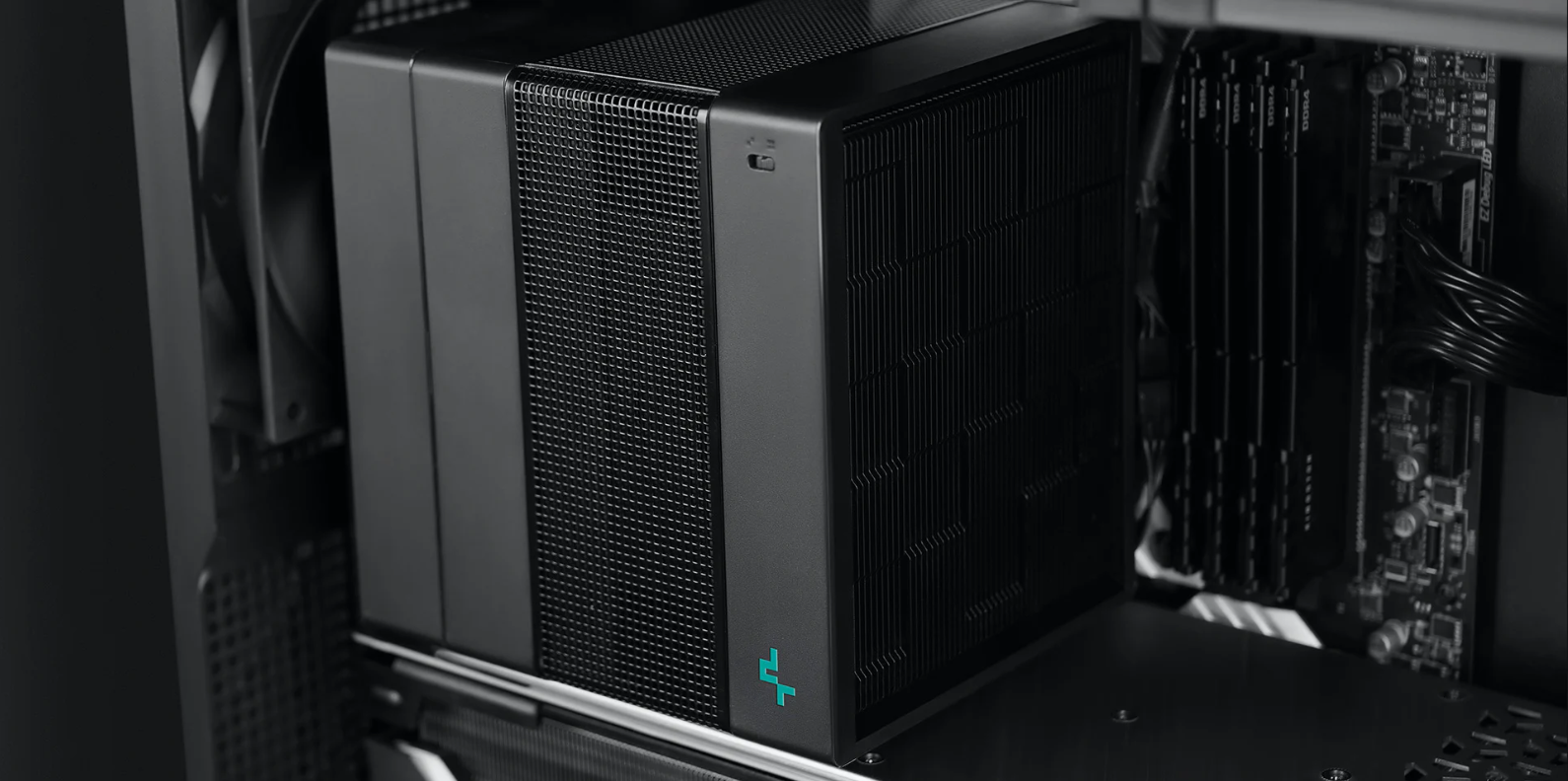

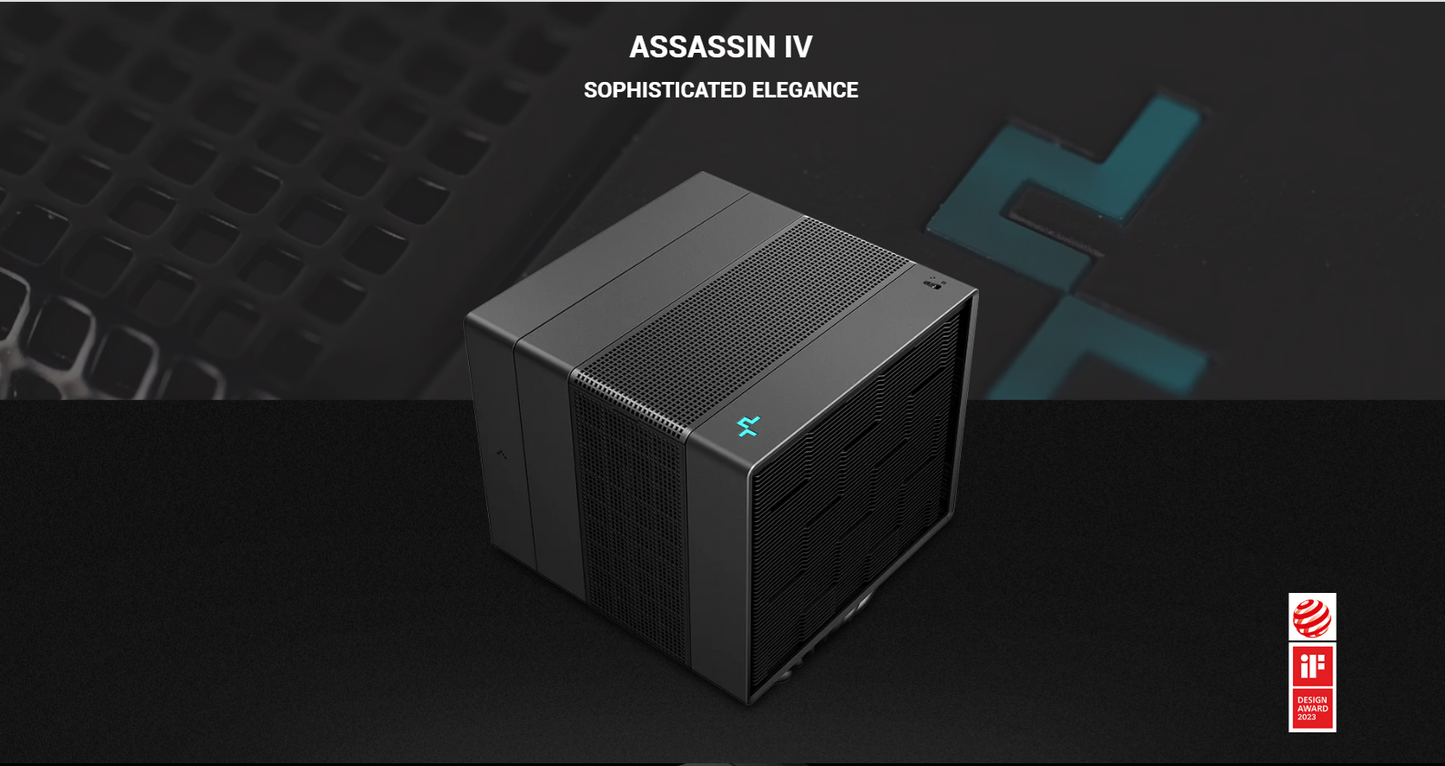

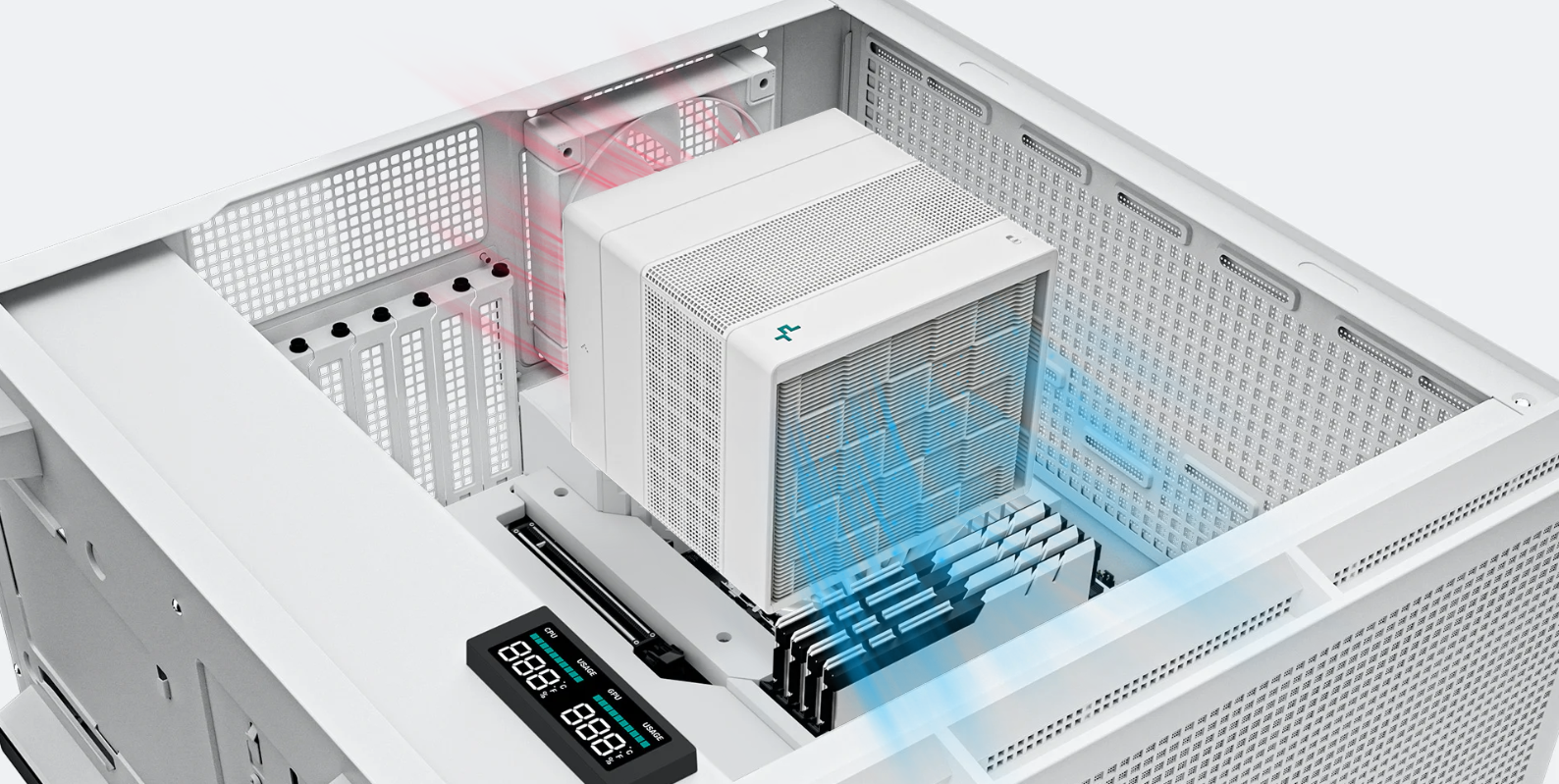

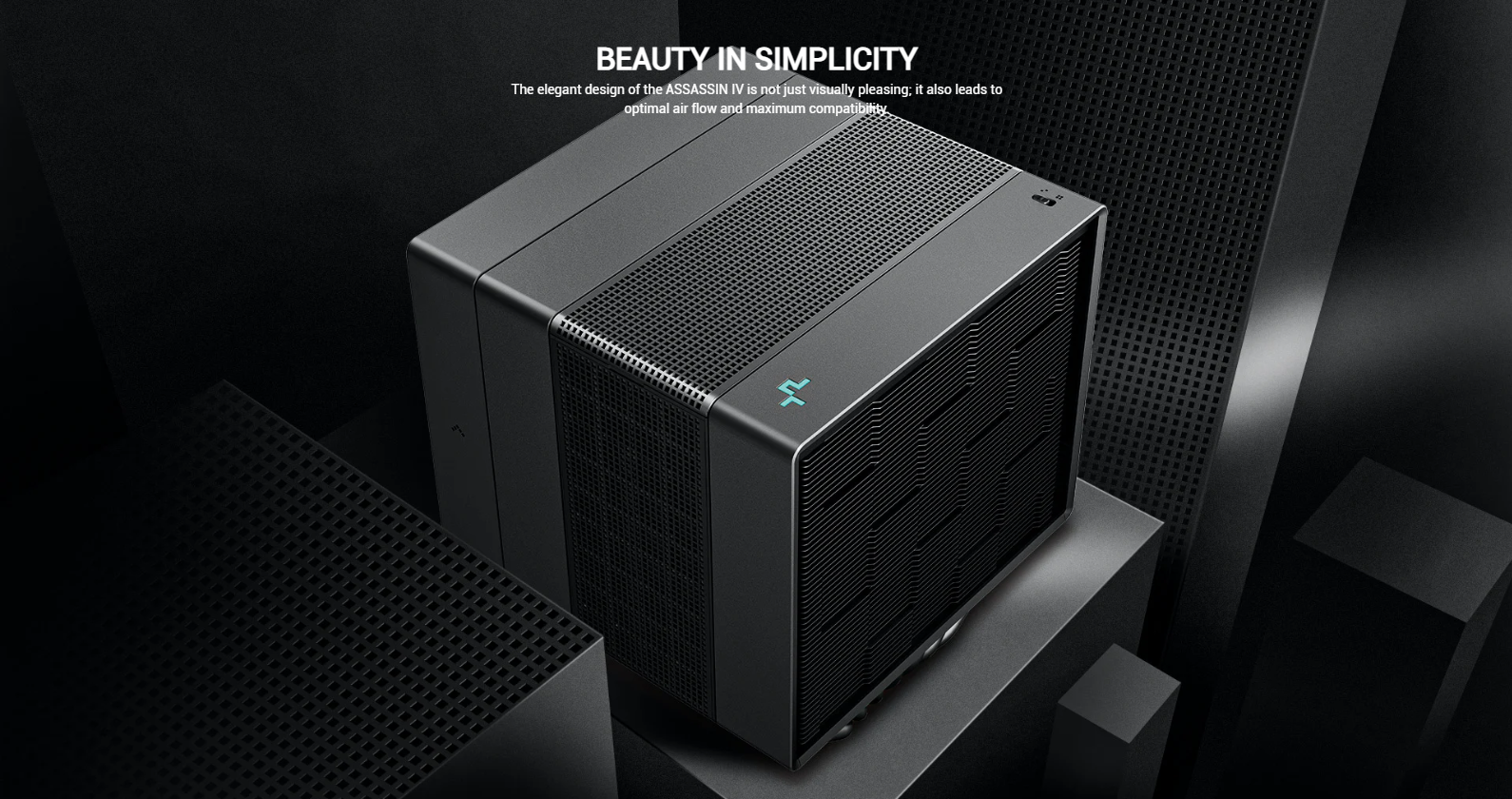

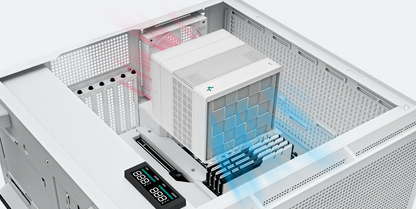

  • Sleek, Clean, and Functional: The majestic shroud, which houses dual-tower heat sinks with seven copper heat pipes, channels all the airflow through the entire cooler.

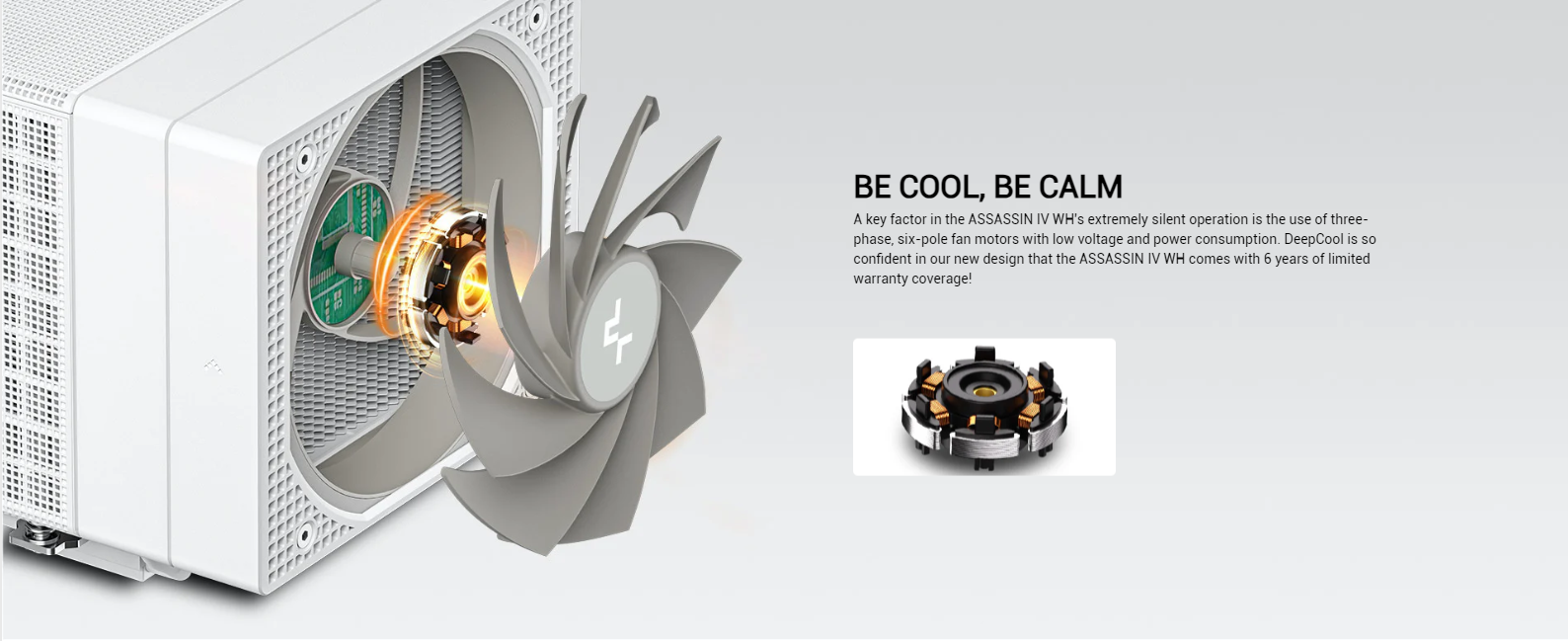

  • Specialized 120/140m Fan Configuration: Designed with a quiet and efficient 3-phase 6-pole fan motor, the 120/140mm fans provides optimal air flow at a low noise level.

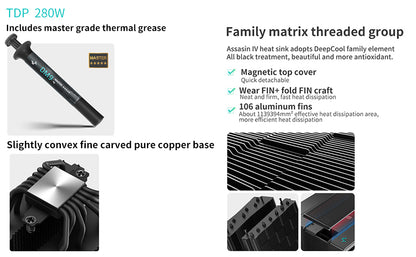

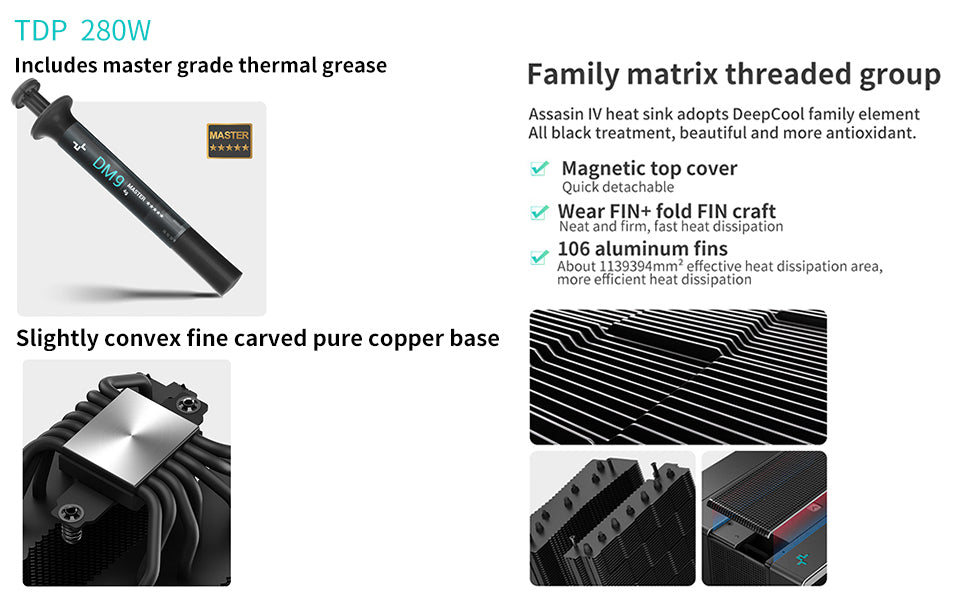

  • Industrial Grade Thermal Paste: A tube of DeepCool's industrial grade DM9 thermal paste is included.

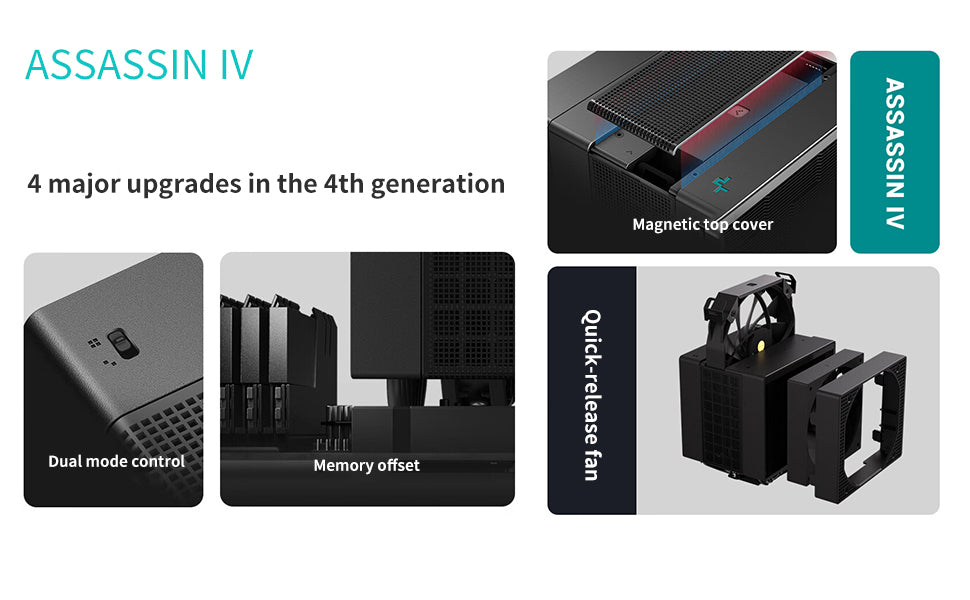

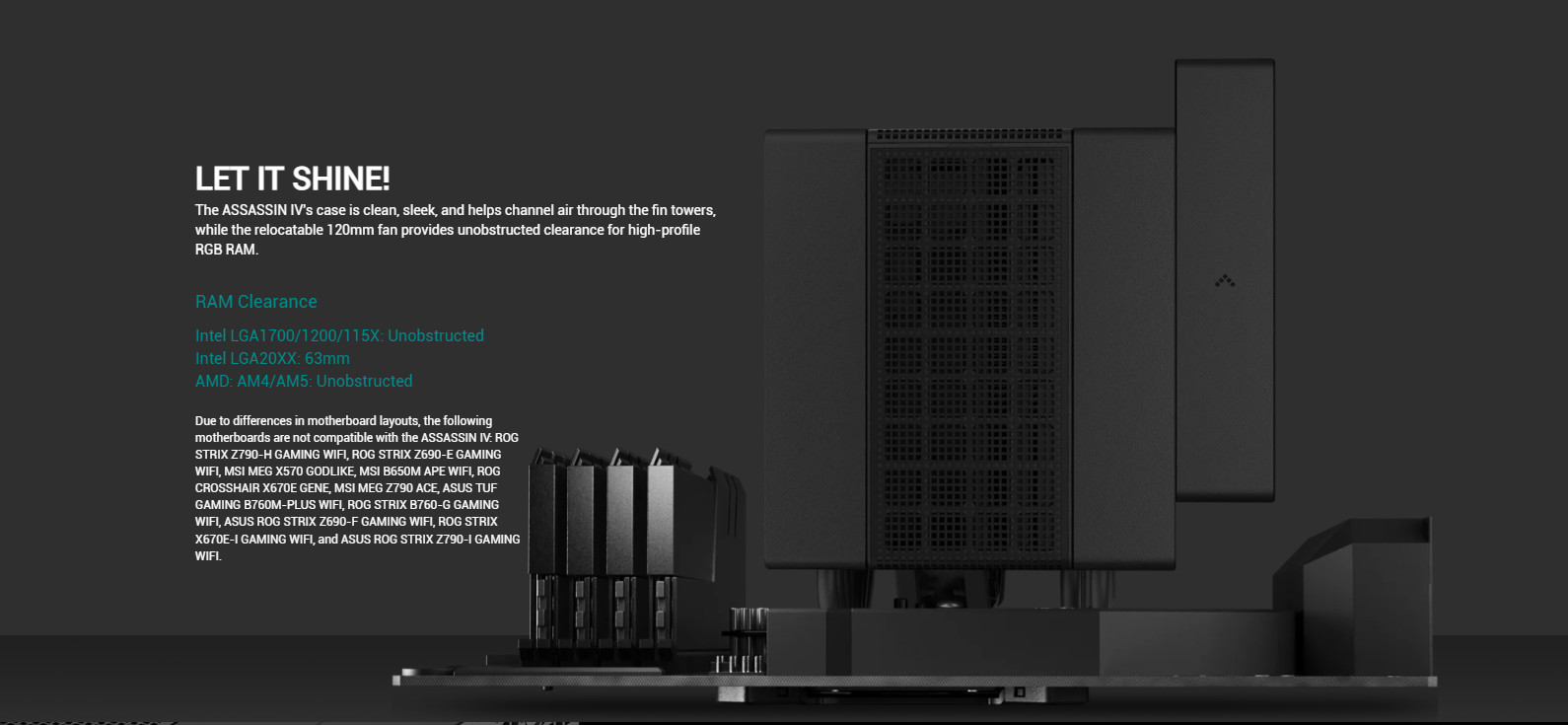

  • Maximum Compatibility: Supports the vast majority of modern Intel and AMD CPUs while the relocatable 120mm fan ensures maximum compatibility for high profile RGB RAM modules.

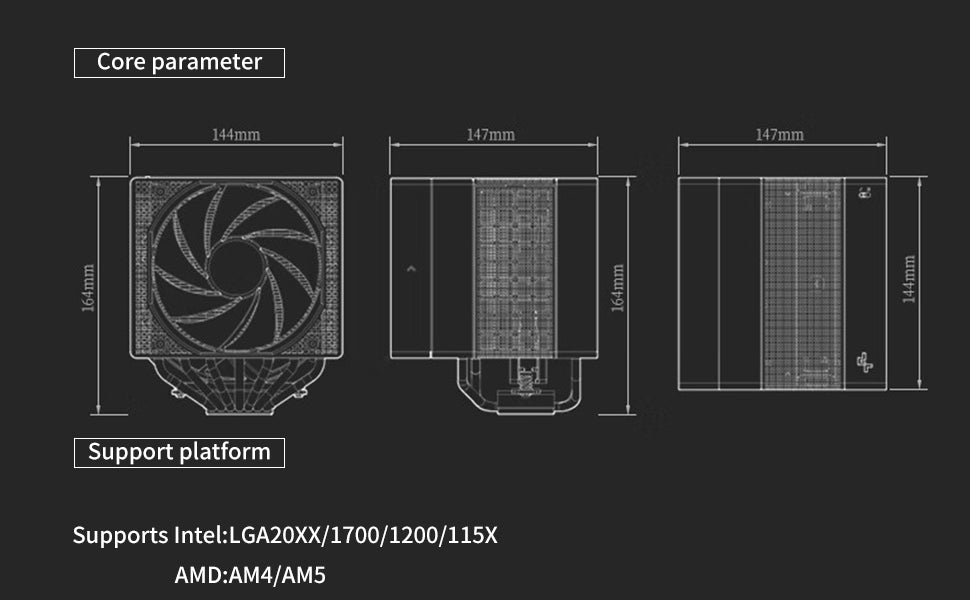

  • Dimensions: 147(L) x 148(W) x 164mm(H)

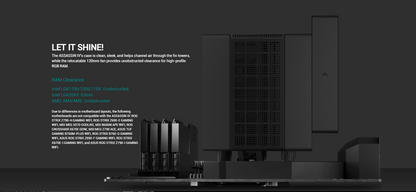

  • RAM clearance:
    • Intel LGA1700/1200/115X: Unobstructed
    • Intel LGA20XX: 63mm
    • AMD: AM4/AM5: Unobstructed

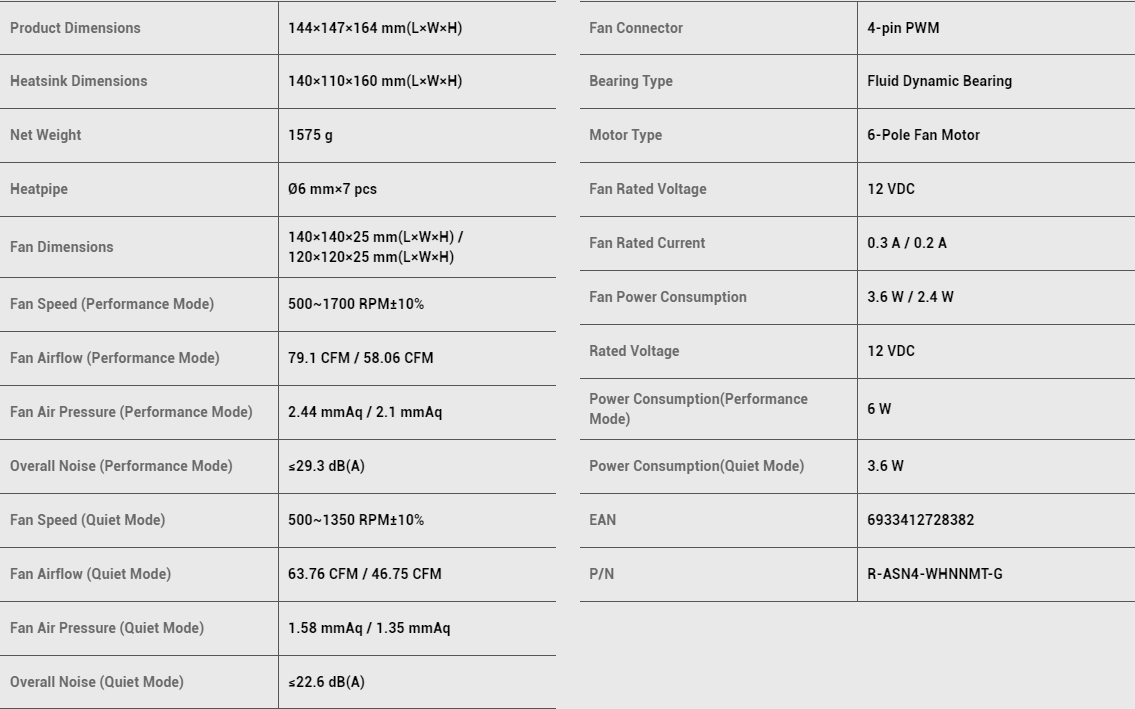

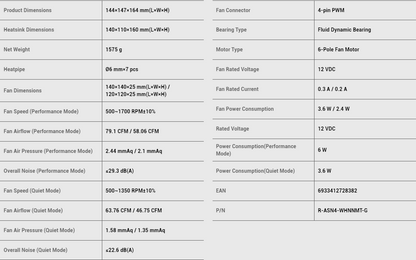

Technical Spec

Model ASSASSIN IV
Product Dimensions 144×147×164 mm (L×W×H)
Heatsink Dimensions 140×110×160 mm (L×W×H)
Net Weight 1575 g
Heatpipe Ø6 mm×7 pcs
Fan Dimensions 140×140×25 mm (L×W×H) /
120×120×25 mm (L×W×H)
Fan Speed (Performance Mode) 500~1800 RPM±10% /
500~1700 RPM±10%
Fan Airflow (Performance Mode) 61.25 CFM / 58.06 CFM
Fan Air Pressure (Performance Mode) 3.76 mmAq / 2.1 mmAq
Overall Noise (Performance Mode) ≤29.3 dB(A)
Fan Speed (Quiet Mode) 500~1450 RPM±10% /
500~1350 RPM±10%
Fan Airflow (Quiet Mode) 48.55 CFM / 46.75 CFM
Fan Air Pressure (Quiet Mode) 2.46 mmAq / 1.35 mmAq
Overall Noise (Quiet Mode) ≤22.6 dB(A)
Fan Connector 4-pin PWM
Bearing Type Fluid Dynamic Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.2 A / 0.2 A
Fan Power Consumption 2.4 W / 2.4 W
Rated Voltage 12 VDC
Power Consumption (Performance Mode) 4.8 W
Power Consumption (Quiet Mode) 3.6 W
Application For AMD: AM5/AM4
Intel: LGA 2066/2011-v3/2011/1700/ 1200/1151/1150/1155
