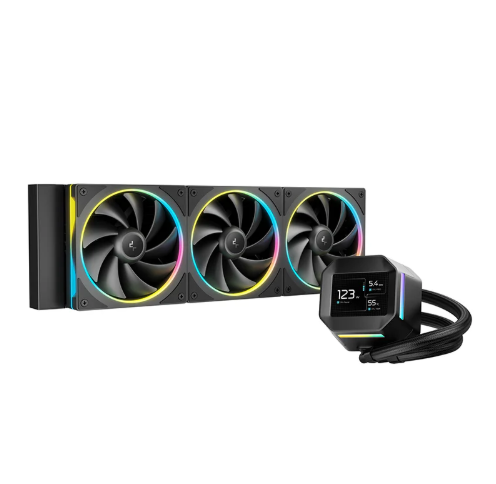

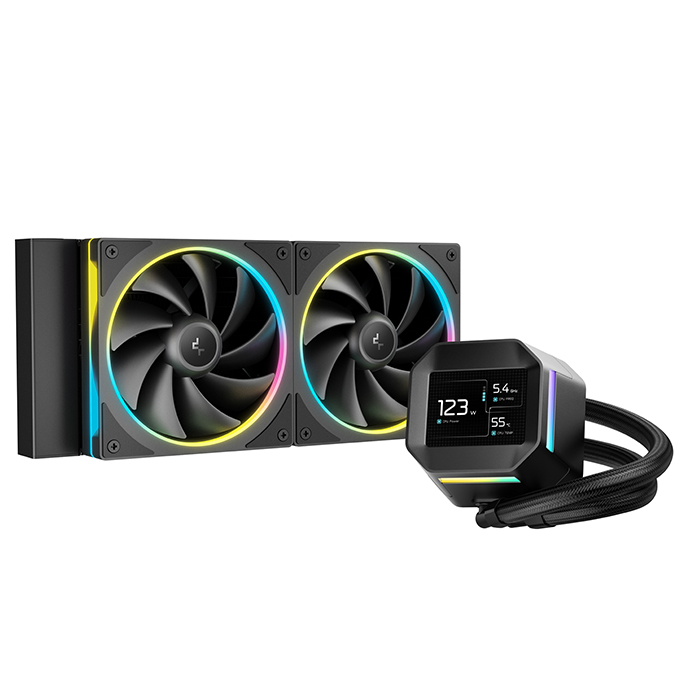

DeepCool LM240 / LM360 AIO ARGB Liquid Cooler with 2.4 IPS Mini‑LCD Display
DeepCool LM240 / LM360 AIO ARGB Liquid Cooler with 2.4 IPS Mini‑LCD Display
Couldn't load pickup availability
DeepCool LM240 / LM360
AIO ARGB Liquid Cooler with 2.4 LCD Screen
The LM series brings a fresh update to liquid cooling with a compact 2.4" IPS display that now supports MP4 video playback for a more dynamic screen experience. Cooling performance is refined with an upgraded pump for better efficiency and quieter operation.
2.4″ IPS Mini‑LCD Display
320×240 resolution, supports animated MP4s and system monitoring for real-time feedback.
6th‑Gen Pump with PWM Control
Operates at 2,500–3,600 RPM, delivering efficient and quiet thermal performance.
FL12 SE 120 mm RGB Fans
Speed range of 400–2,400 RPM for up to 66 CFM airflow and 3.27 mmH₂O static pressure.
Anti‑Leak Valve System
Internal pressure regulation enhances safety and extends long-term reliability.
ARGB Ecosystem Sync
Fully compatible with ASUS Aura Sync, MSI Mystic Light, Gigabyte Fusion, and ASRock Polychrome.
Wide Socket Compatibility
Supports Intel: LGA 1851/1700/1200/11xx and AMD: AM5/AM4 platforms.
Intuitive DeepCreative Software
Customize display media modes, monitor CPU/GPU stats, or enable Zen Mode for minimal UI.
Weight‑Balanced Design
Radiator + fan + pump total weight approx. 1.73 kg for stable performance.
Technical Spec
| Model | LM240 / LM360 |

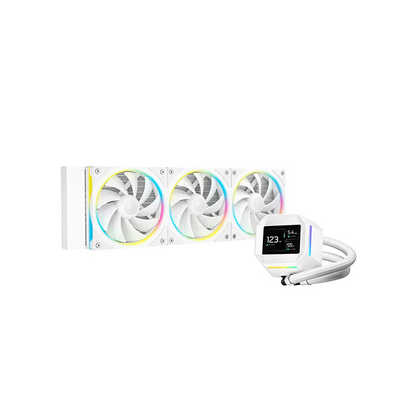

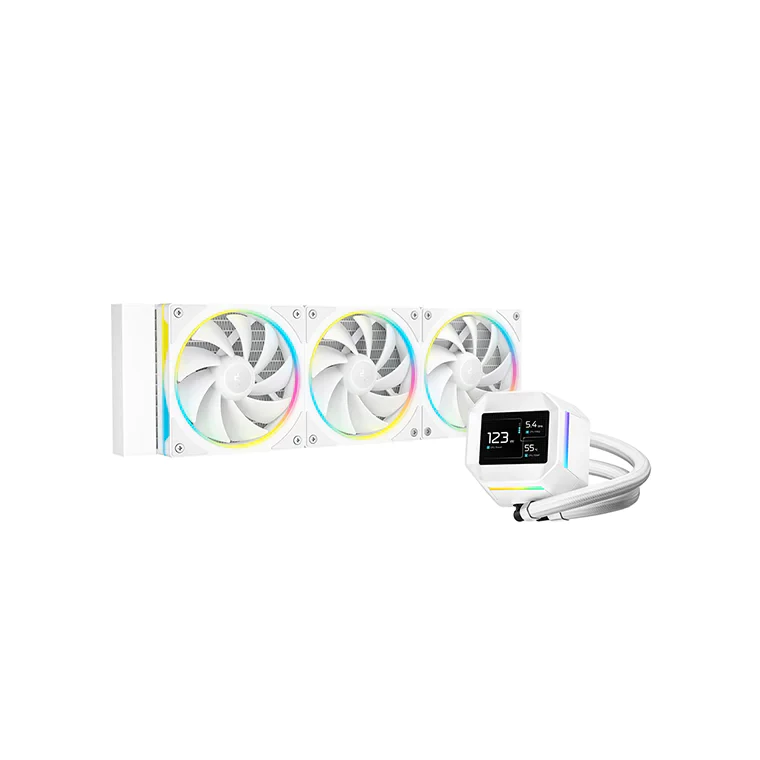

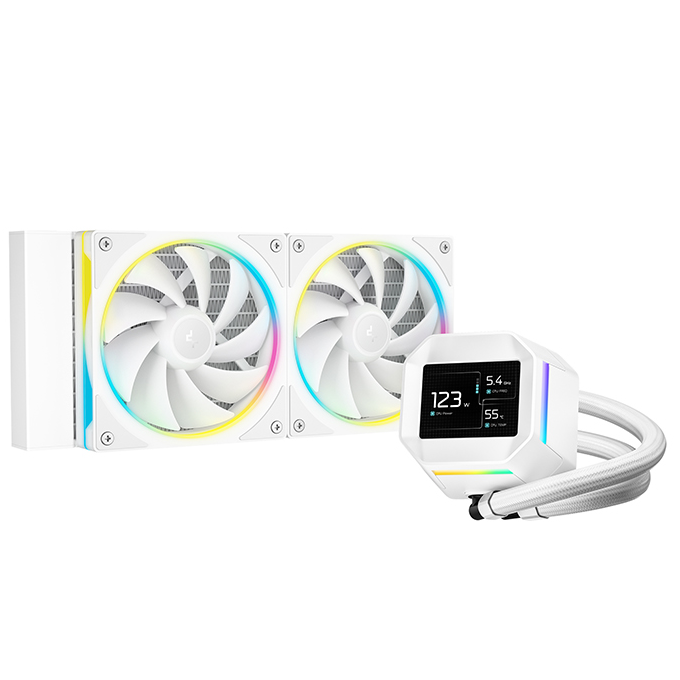

| Color | Black / White |
| Net Weight | 1404 g (LM240) / 1729 g (LM360) |
| Radiator Dimensions | 282×120×27 mm(L×W×H) |
| Radiator Material | Aluminum |
| Tube length | 410 mm (L×W×H) |
| Pump Dimensions | 90×80×63 mm (L×W×H) |
| Pump Speed | 2500～3400 RPM±10% |
| Pump Connector | 4-pin PWM |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.29 A |
| Pump Power Consumption | 3.48 W |
| Fan Dimensions | 120×120×25 mm (L×W×H) |
| Fan Speed | 400~2400 RPM±10% |
| Fan Airflow | 66.23 CFM |
| Fan Air Pressure | 3.27 mmAq |
| Fan Noise | ≤36.07 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.18 A |
| Fan Power Consumption | 2.16 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin (+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 1.5W PUMP / 3.5W (FAN×2) - LM240 1.5W PUMP / 3.5W (FAN×3) - LM360 |
