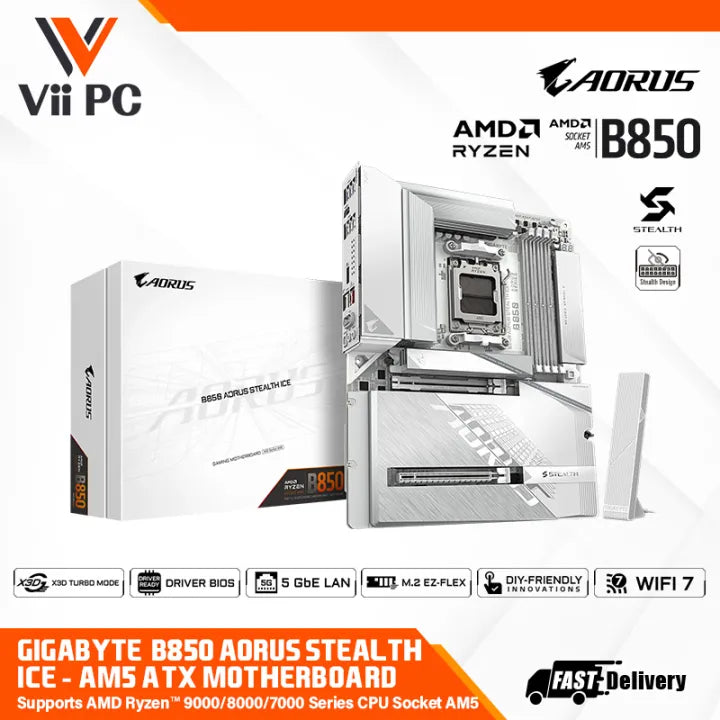

GIGABYTE B850 AORUS STEALTH ICE AM5 DDR5 5GbE LAN & Wi-Fi 7 ATX GAMING MOTHERBOARD

GIGABYTE B850 AORUS STEALTH ICE AM5 DDR5 5GbE LAN & Wi-Fi 7 ATX GAMING MOTHERBOARD

$492.00 SGD
$492.00 SGD
Sale Sold out

Highlights

Key Features

  • X3D Turbo Mode : Unleash new era gaming performance
  • DDR5 OC up to 8200MT/s
  • DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
  • AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
  • Digital twin 14+2+2 phases VRM solution
  • Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
  • M.2 EZ-Flex : high-efficiency heat dissipation & flexible baseplate for M.2 SSD (Exclusive Patented Design)
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click : M.2 heatsinks with screwless design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
  • Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
  • Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity : HDMI
  • PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
  • UD Base Plate : Experience the protection and heat dissipation with the UD Base Plate.

Description

  • CPU
  • AMD Socket AM5, support for:

    AMD Ryzen™ 9000 Series Processors/

    AMD Ryzen™ 8000 Series Processors/

    AMD Ryzen™ 7000 Series Processors

    (Go to GIGABYTE's website for the latest CPU support list.)
  • Chipset
  • AMD B850
  • Memory
  • Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.

    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

    Dual channel memory architecture

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  • Onboard Graphics
  • Integrated Graphics Processor with AMD Radeon™ Graphics support:

    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

** Support for native HDMI 2.1 TMDS compatible ports.



(Graphics specifications may vary depending on CPU support.)

  • Audio
  • Realtek® ALC1220 CODEC

* The back panel line out jack supports DSD audio.



High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.



Support for S/PDIF Out

  • LAN
  • Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
  • Expansion Slots
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

    AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode

    AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

    AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.



Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.

Form Factor

  • ATX Form Factor; 30.5cm x 24.4cm
