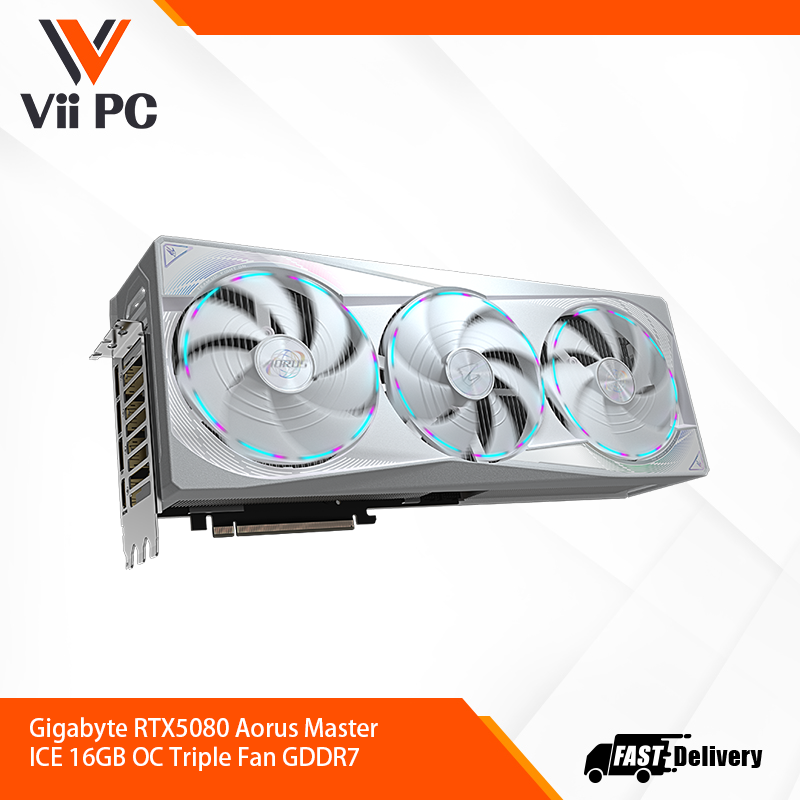

Gigabyte RTX5080 Aorus Master ICE 16GB OC Triple Fan GDDR7

Gigabyte RTX5080 Aorus Master ICE 16GB OC Triple Fan GDDR7

The Gigabyte GeForce RTX 5080 Aorus Master ICE 16G is a high-end graphics card powered by Nvidia's Blackwell architecture. It was released on January 30, 2025, alongside the RTX 5090. This model features a triple-fan WINDFORCE cooling system and a distinctive white "ICE" aesthetic.

• GPU: Nvidia GeForce RTX 5080 (GB203-400-A1 variant) with 10,752 CUDA cores.
• Memory: 16GB of GDDR7 memory with a 256-bit memory interface.
• Memory speed: 30 Gbps, providing up to 960 GB/s of memory bandwidth.
• Core clock: 2805 MHz boost clock (Gigabyte OC).
• AI performance: 1801 AI TOPS, enabled by 5th-generation Tensor Cores.
• Ray tracing: 4th-generation RT Cores optimized for full ray tracing with neural rendering.
• TDP: 360W Total Board Power (TBP).
• Power connector: One 16-pin 12V-2x6 connector, which is a revised version of the 12VHPWR standard.
• Recommended PSU: 850W or greater.
• Dimensions: 360mm (L) x 150mm (W) x 75mm (H).
• I/O: 3x DisplayPort 2.1b, 1x HDMI 2.1b.
