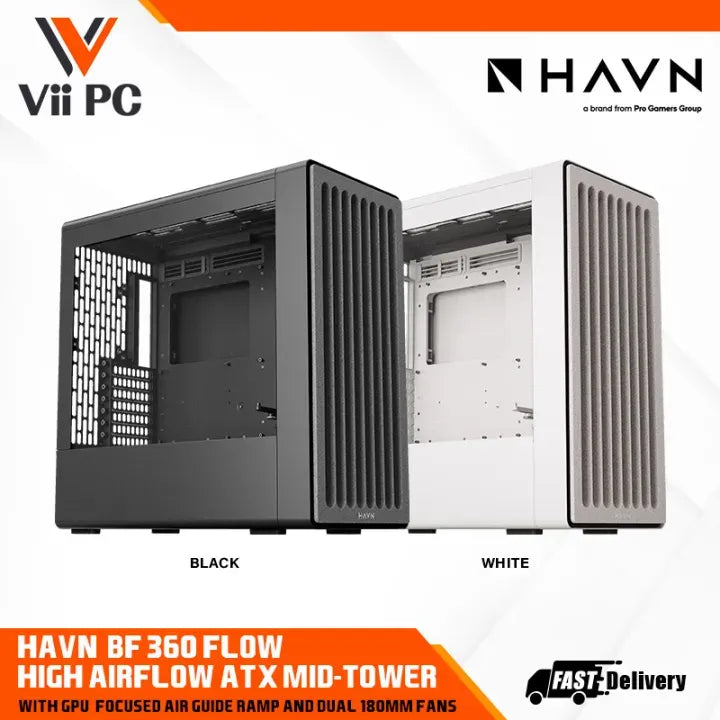

HAVN BF360 ATX mid tower with GPU air guide ramp and support for 120 to 180 mm fans BLACK OR WHITE COLOR ATX CASE

Form Factor

Mid Tower

Material

SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets

PC Case Dimensions (L x W x H)

515 x 254 x 522.6 mm

Net Weight

13.63 kg

Warranty

1 year



Notice

Warranty support is only available for orders shipped within the United States. Orders via forwarding services are not supported.

Please review our full warranty terms for more information.

Front I/O

USB 3.2 Gen 2 Type-C x1

USB 3.2 Gen 1 Type-A x2

Audio Jack x1

Power & Reset Button x1

Motherboard Support

E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX

Expansion Slots

7

Fan Support

Maximum Amount: 7

Top: 2 x 180 mm / 2 x 140 mm / 3 x 120 mm



Front: 2 x 180 mm / 3 x 140 mm / 3 x 120 mm

Left: N/A

Right: N/A

Bottom: N/A

Rear: 1 x 140 mm / 1 x 120 mm

Fan PWM Repeater

Fan Ports: 1 x PWM repeaters, 6 ports total

Location: 1 x Cable Management Tray

Fan Connectors: 6 ports per repeater x 4-pin PWM



(Connect your primary fan to the white port to control PWM signal.

All other ports mirror the white port's signal.)

Fan Rated Voltage: 12V

Fan Safety Current: Up to 2.6A across 6 ports

Power Connector: 1 x SATA Power

Power Safety Current: 1 x SATA connector power input, 12V → 2.6A (max)

CPU Tower Cooler Clearance

Height: Up to 195 mm.

Liquid Cooling Support

Top: 240 / 280 / 360 mm

Front: 240 / 280 / 360 / 420 mm

Left: N/A

Right: N/A

Bottom: N/A

Graphics Card Clearance

Length: Up to 410 mm

Width: Up to 195 mm.

GPU Support

1 - 4.5 Slots

RAM Clearance

If the radiator & fans thickness is greater than 80 mm: 280 mm - 40 mm / 360 mm - 60 mm

Power Supply Support

ATX

Length: Up to 200mm (Clearance - 260mm)

Storage

Right Mount: 2 Storage Bays: 2 x 3.5'' / 8 x 2.5''

Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5''

Storage Bay Included: 2x (2 x 3.5'' / 4 x 2.5'')

Dust Filter

Front: 1 (Built-in)

Top: 1 (Built-in)

Rear Bottom: 1 (Removable)
