Vii PC Trade Pte Ltd

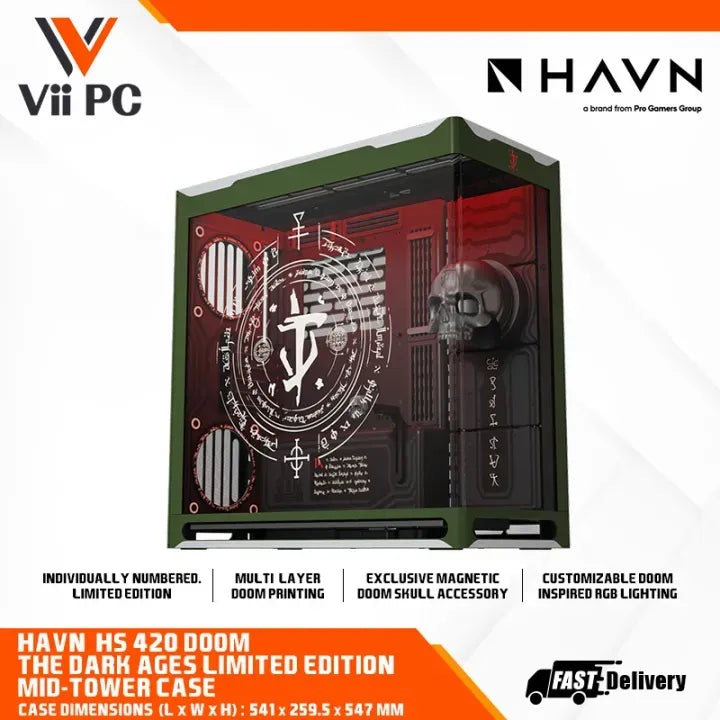

HAVN HS 420 DOOM The Dark Ages Limited Edition E-ATX ATX CASE

HAVN HS 420 DOOM The Dark Ages Limited Edition E-ATX ATX CASE

Regular price $469.00 SGD
Regular price Sale price $469.00 SGD
Sale Sold out

Highlights

HS 420 DOOM: The Dark Ages Limited Edition

 Stand And Fight, Slayer. The HAVN HS 420 DOOM: The Dark Ages Edition is the ultimate PC case for Slayers. This mid-tower case is colored to match the DOOM Slayer’s armor and adorned with multi-layer, screen-printed sigils and runes. To complete the look, there is an LED strip illuminated like the Praetor Suit power node and a magnetic skull accessory. Beneath its striking gothic aesthetic lies the signature HS 420 Hybrid Structure, a dual-chamber design engineered for optimized GPU airflow and cooling. This PC case isn’t just about style: it’s a must-have showcase piece for DOOM fans.

  • Multi-layer DOOM printing: The exterior is a striking DOOM Slayer green that’s accented with metallic details, evoking the Praetor Suit armor, while the UniSheet tempered glass panel and interior surfaces feature multi-layer, screen-printed white sigils and runes.
  • Exclusive magnetic DOOM skull accessory: A stylized magnetic metal skull. Position the large skull inside the case to cover a cooling reservoir, or mount it outside as a brutal headphone hanger. Your trophy, your way.
  • Customizable DOOM-inspired RGB lighting: Includes an RGB LED strip for personalizing your rig. Set it to crimson to echo DOOM’s infernal atmosphere, or customize the hue to match your style.

Description

Form Factor

Mid Tower

Material

SGCC sheet metal, tempered glass, ABS, nylon, silicone, zinc alloy, NdFeB magnets, aluminum, glass fiber-reinforced epoxy board, and plastic



PC Case Dimensions (L x W x H)

541 x 259.5 x 547 mm

Net Weight

18.25 kg

Warranty

1 year

Front I/O

USB 3.2 Gen 2 Type-C x1

USB 3.2 Gen 1 Type-A x2

Audio Jack x1

Power & Reset Button x1

Motherboard Support

E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX

Expansion Slots

6

Fan Support

Maximum Amount: 11

Top: 3 x 120 / 3 x 140 mm

Right: 3 x 120 / 3 x 140 mm

Bottom: 3 x 120 / 3 x 140 mm

Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm)

Fan PWM Repeater

Fan Ports: 2 x PWM repeaters, 12 ports total

Location: 1 x Cable Management Tray

1 x PSU Shroud

Fan Connectors: 6 ports per repeater x 4-pin PWM



(Connect your primary fan to the white port to control PWM signal.

All other ports mirror the white port's signal.)

Fan Rated Voltage: 12V

Fan Safety Current: Up to 2.6A across 6 ports

Power Connector: 1 x SATA Power

Power Safety Current: 1 x SATA connector power input, 12V → 2.6A (max)

CPU Tower Cooler Clearance

Height: Up to 185 mm. Tower cooler size depends on GPU width. CPU center to graphics card PCIe edge connector; ~199mm (varies by motherboard). Liquid cooling recommended.

Liquid Cooling Support

Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM)

Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO)

Bottom: 280 / 360 / 420 mm (Thickness: 120 mm)

Graphics Card Clearance

Length: Up to 480 mm

Width: Up to 195 mm. GPU width support depends on CPU cooler size. CPU center to graphics card PCIe edge connector: ~199mm (varies by motherboard). Liquid cooling recommended.

GPU Support

2 - 5 Slots

RAM Clearance

If the fan and radiator thickness is greater than 65 mm: 420 mm - 32 mm / 360 mm - 43 mm

Power Supply Support

ATX

Length: Up to 220mm (Clearance - 290mm)

Storage

Right Fan Mount: 4 Storage Bays: 4 x 3.5'' / 8 x 2.5''

Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5''

Storage Bay Included: 4x

Internal Display Support

VESA Mounting: 75 x 75 mm / 100 x 100 mm

Display Size: 14 in. (Max)

Location: Front Right Pillar

Dust Filter

Bottom: 1 (Removable)

Top: 1 (Built-in)

Right: 1 (Built-in)

Rear Bottom: 1 (Removable)

Accessories

Controllable RGB Light Strip - Top: 1 (Built-in)



Magnetic Skull - Side: 1 (Removable)



Aluminium Plate - Bottom: 1 (Built-in)
