JONSBO D300 Large Micro-ATX BLACK/WHITE TOWER CASING - One-piece Glass Panel AO270 Deg View , MATX Back Plug-in BTF MB, Support 360 AIO, Support 40-series GPU, No Fans Included

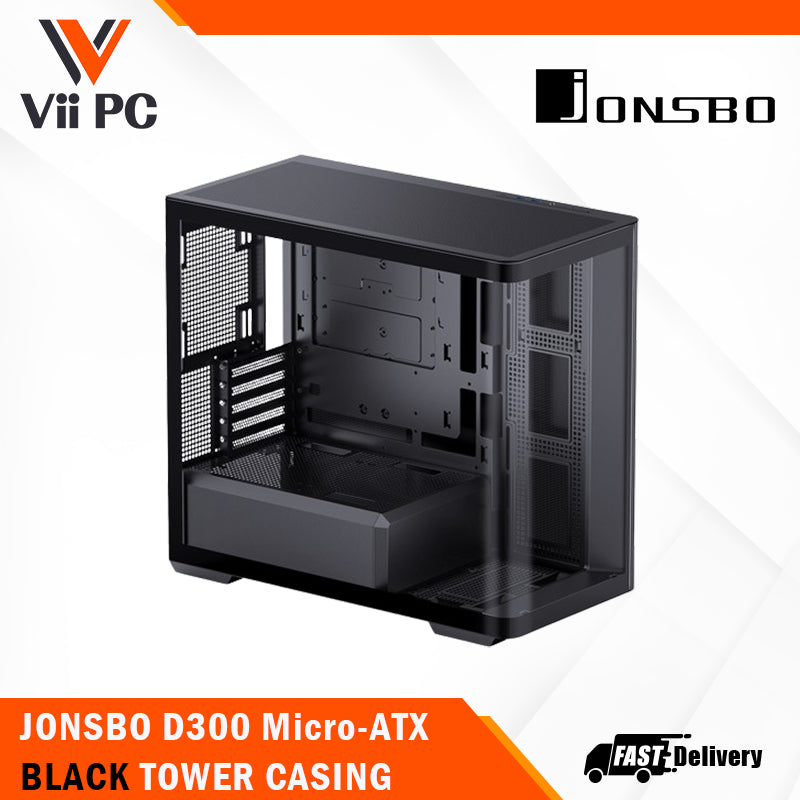

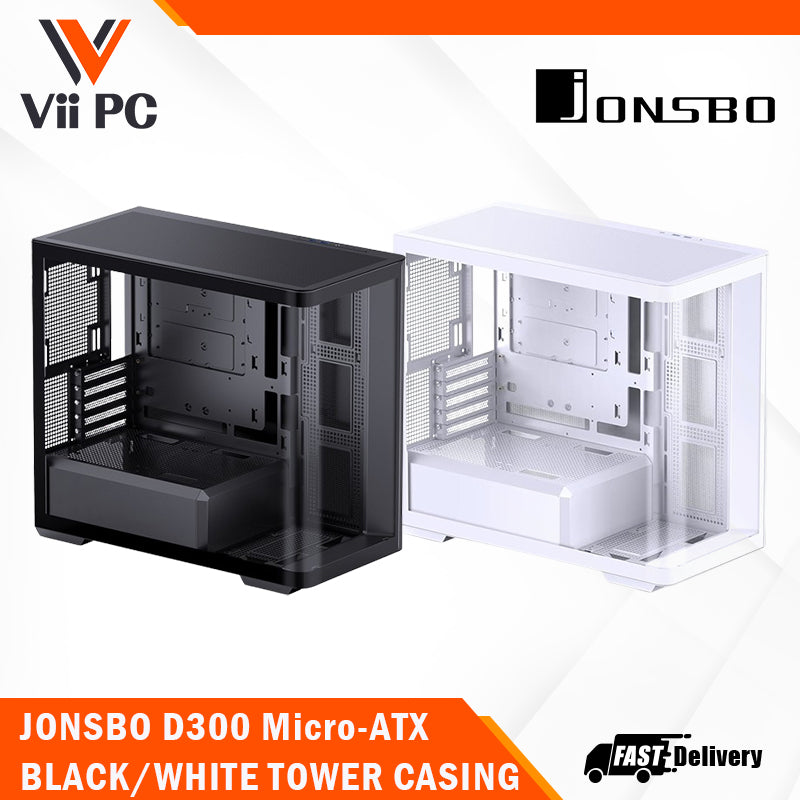

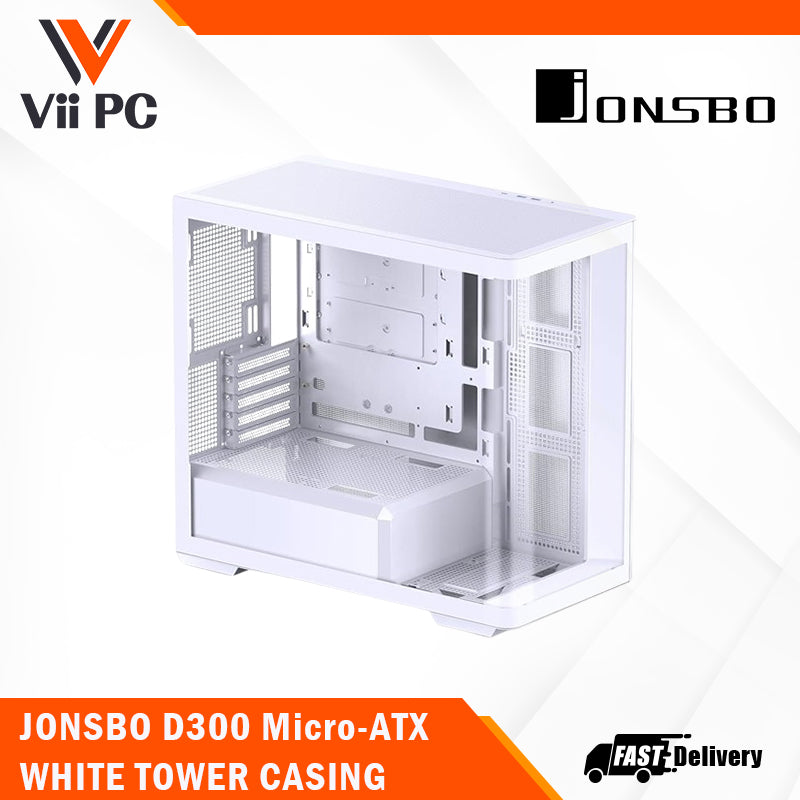

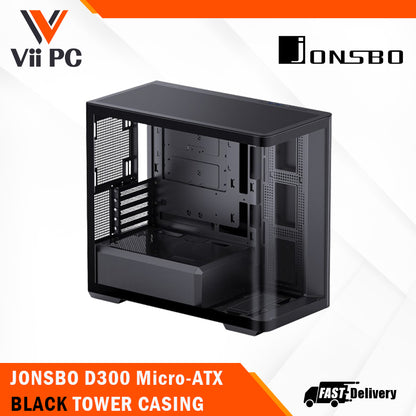

JONSBO D300 Micro-ATX/ITX BLACK/WHITE TOWER CASING

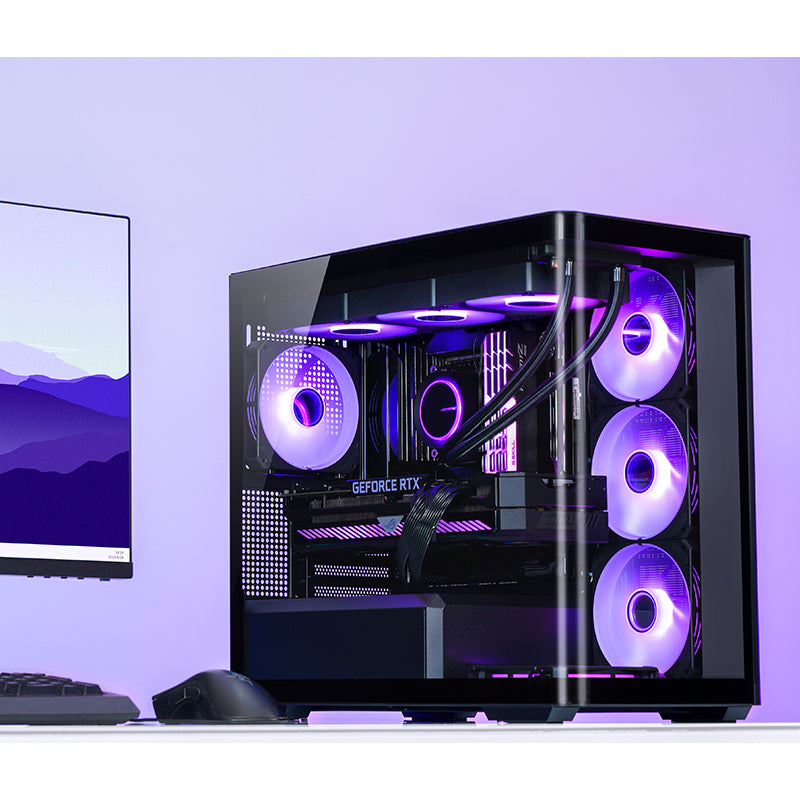

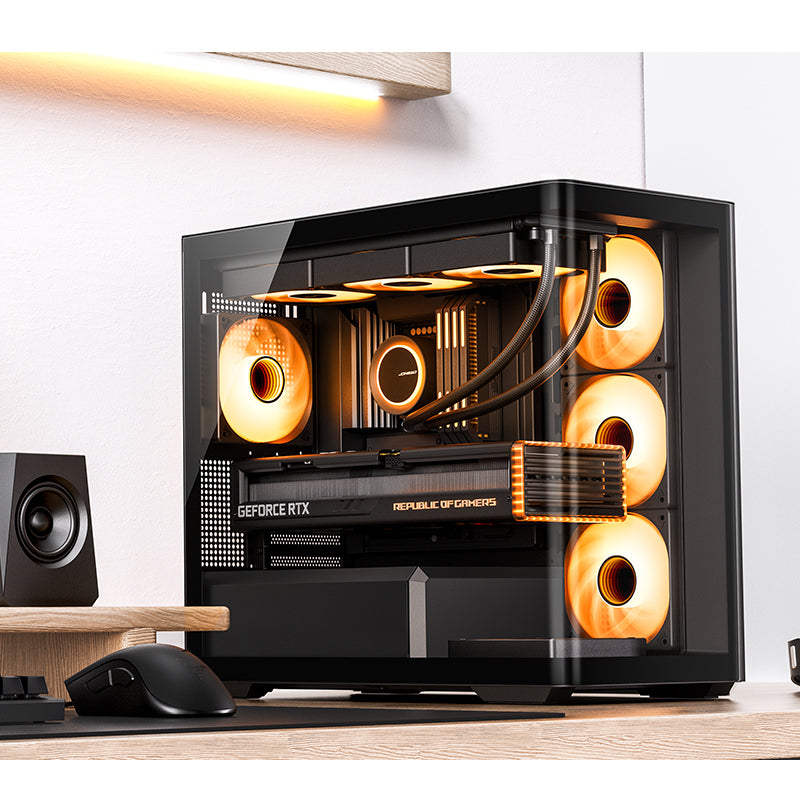

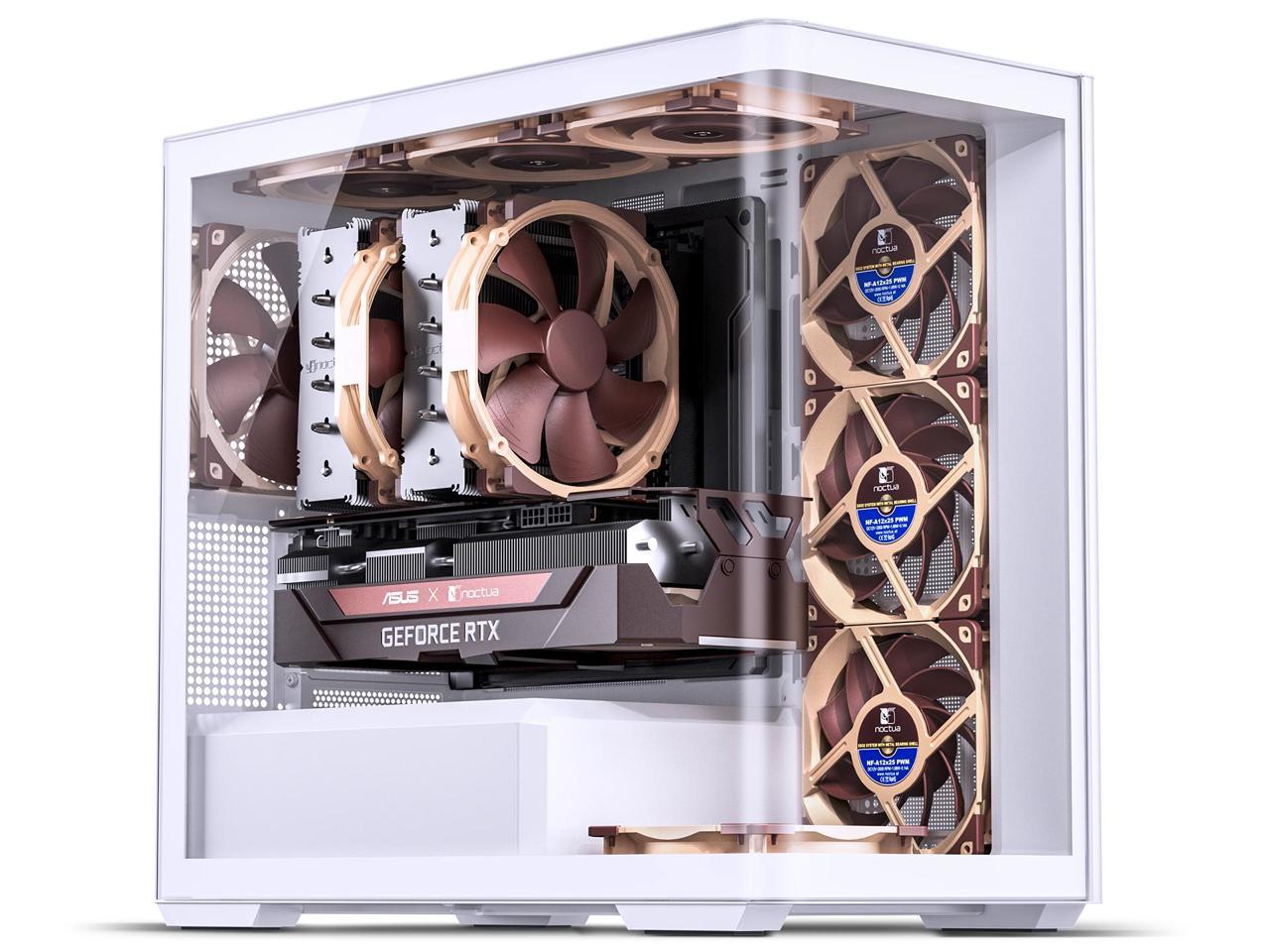

JONSBO D300 is a breakthrough in the use of curved integrated bent tempered glass design, providing a 270-degree ultra-wide view of the display hardware, the R corner transition is natural and elegantly rounded, providing a distinctive host temperament, the top cover and the back side of the line with a large area of the MESH holes combined with the 10 groups of fans with a variety of combinations of cooling methods, taking into account the light effect and air ducts. 5 PCI slots designed to be more friendly and support 40% of the graphics card installation. The 5-position PCI slot design is more friendly to support the installation of 40-series graphics cards, and the multi-angle side perspective display allows for more reasonable desktop space planning.

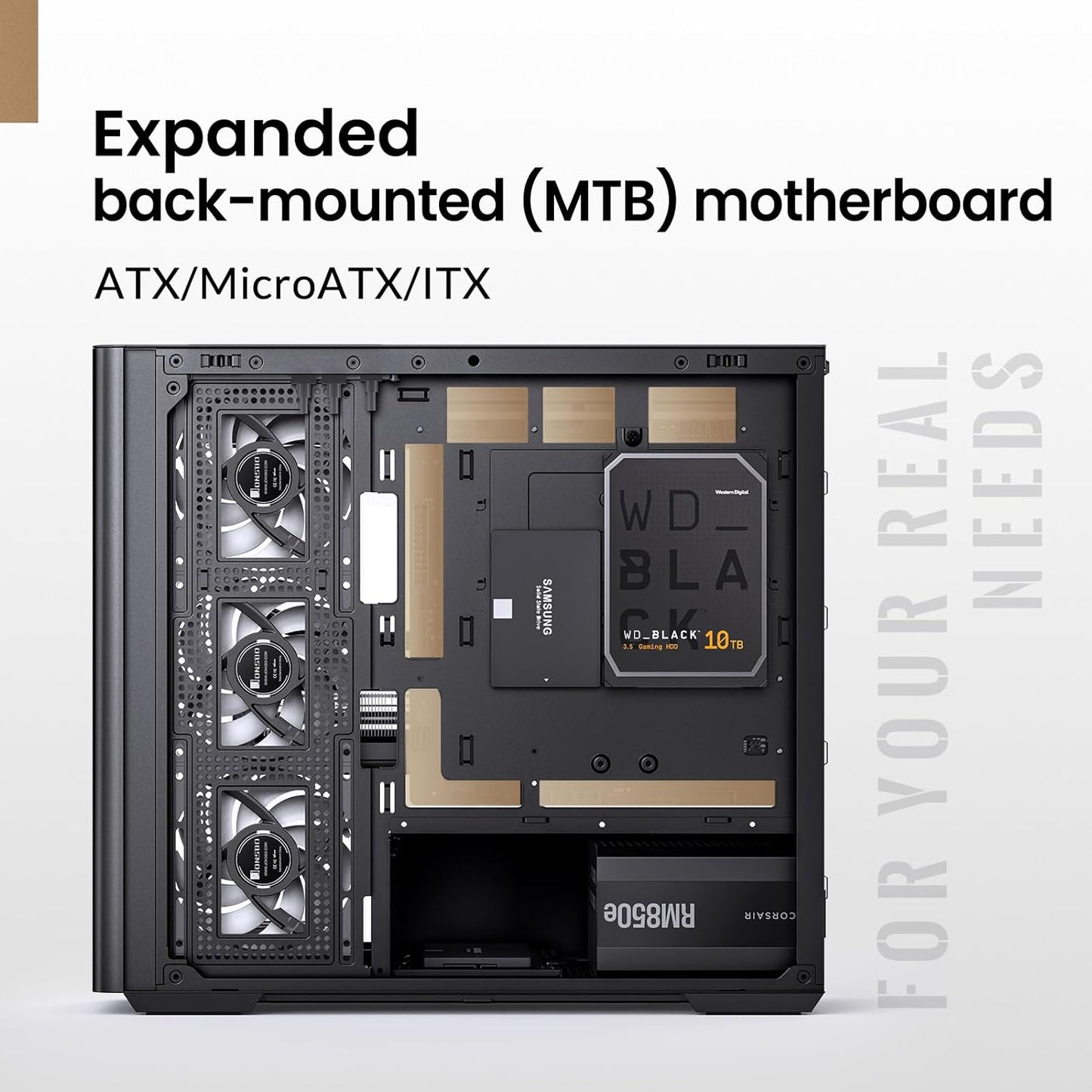

• JONSBO D300 BLACK/WHITE M-ATX Computer Case,One-piece Glass Panel, Compatible with BTF Motherboard
• ** Case comes with 3PCS SL-120BR ARGB Reverse fans and 1PCS SL-120B ARGB FAN for your DIY freely.
• Motheboard: Micro-ATX / ITX
• Power Supply: ATX200mm / 7.87 inch
• CPU Cooler: 180mm / 7.09 inch
• GPU: 430mm / 16.93 inch
• AIO: TOP 240mm / 360mm
• Drive Bay: Back: 2.5SSD*2 or 3.5HDD*1+2.5SD*1 Bottom: 3.5HDD *1 or 2.5SSD*1

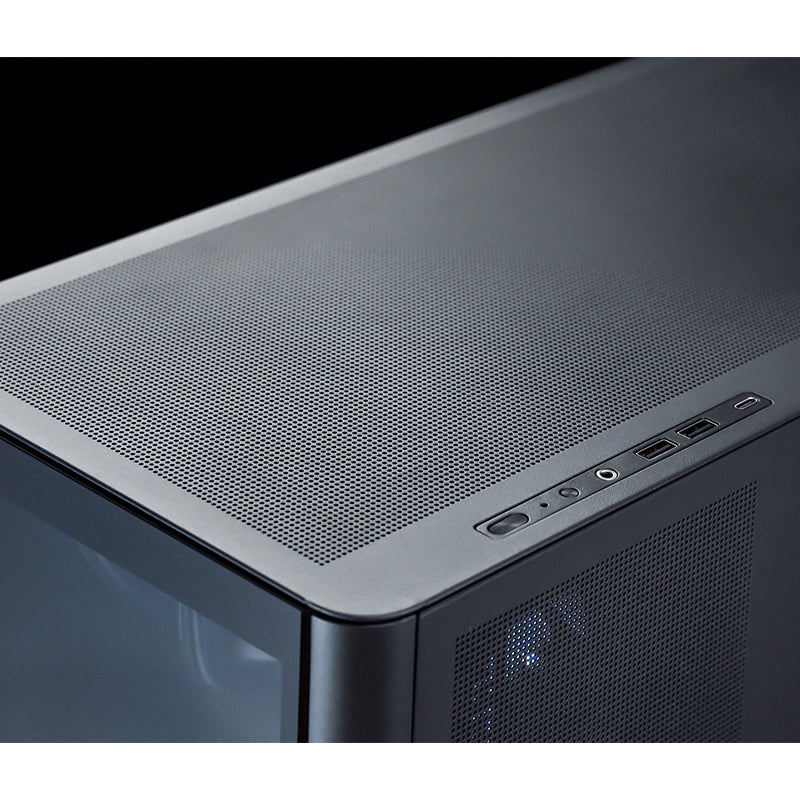

• Front interface: USB3.2 Gen2 Type-C*1 / USB3.0*2 / AUDIO & MIC*1

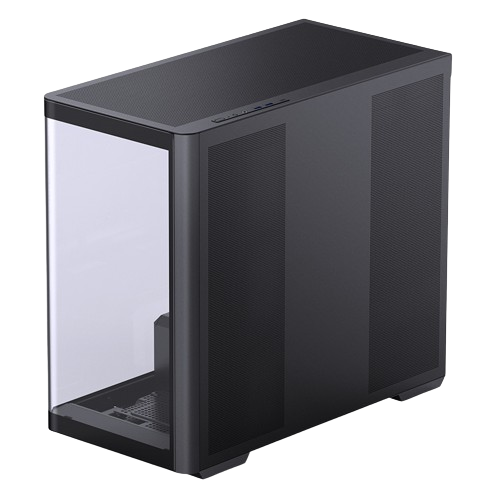

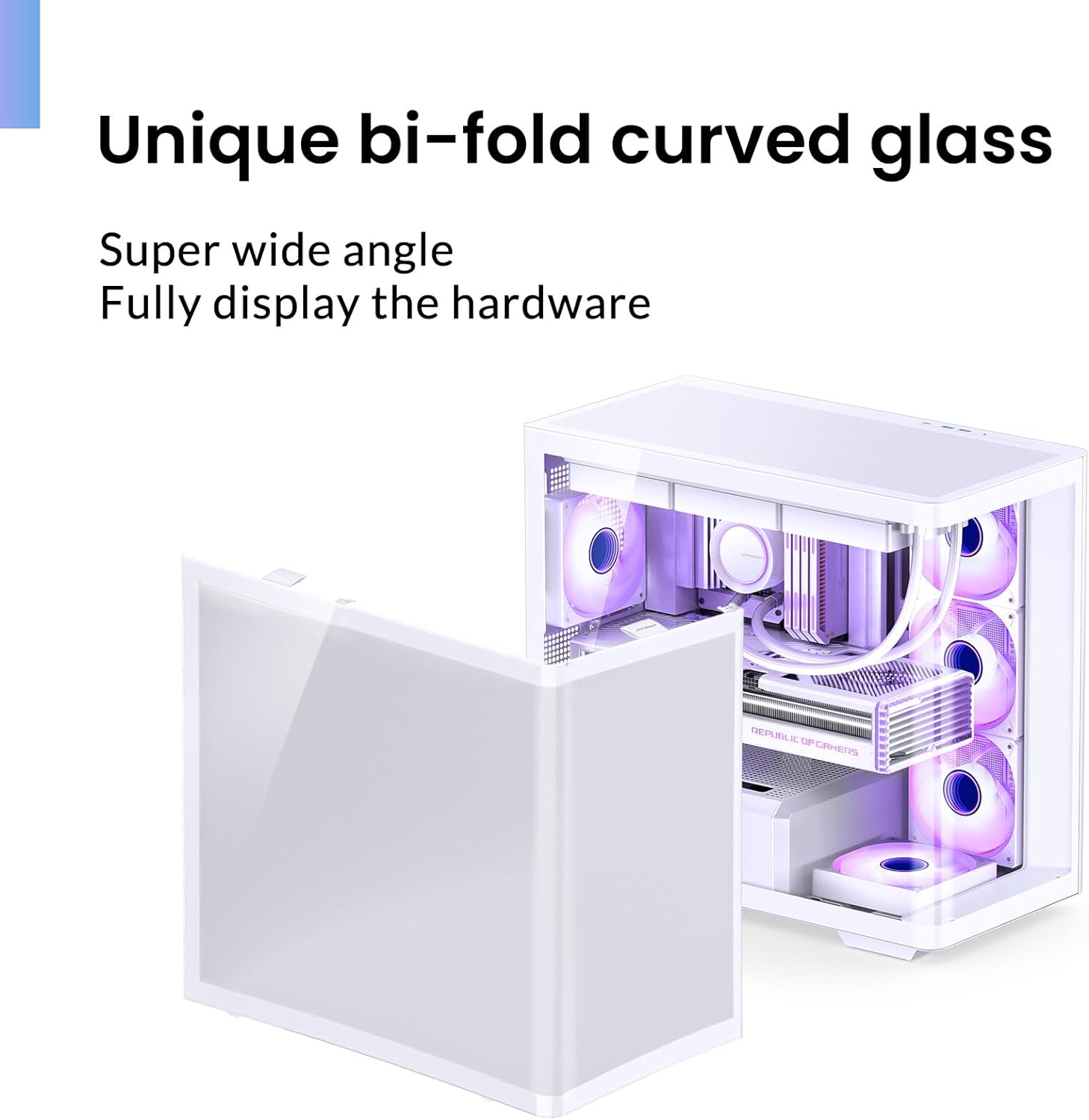

• Curved Super Wide View: AO270 Ultra Wide View
• Size: 236.4(W) x 420.9(H) x 460.2(D) mm
• N.W: 17.64lb

SPECIFICATIONS

MODEL: D300
COLOR: Black / White
DIMENSION: 236.4mm (W) * 420.9mm (H) * 460.2mm (D)
MOTHERBOARD: ITX/M-ATX

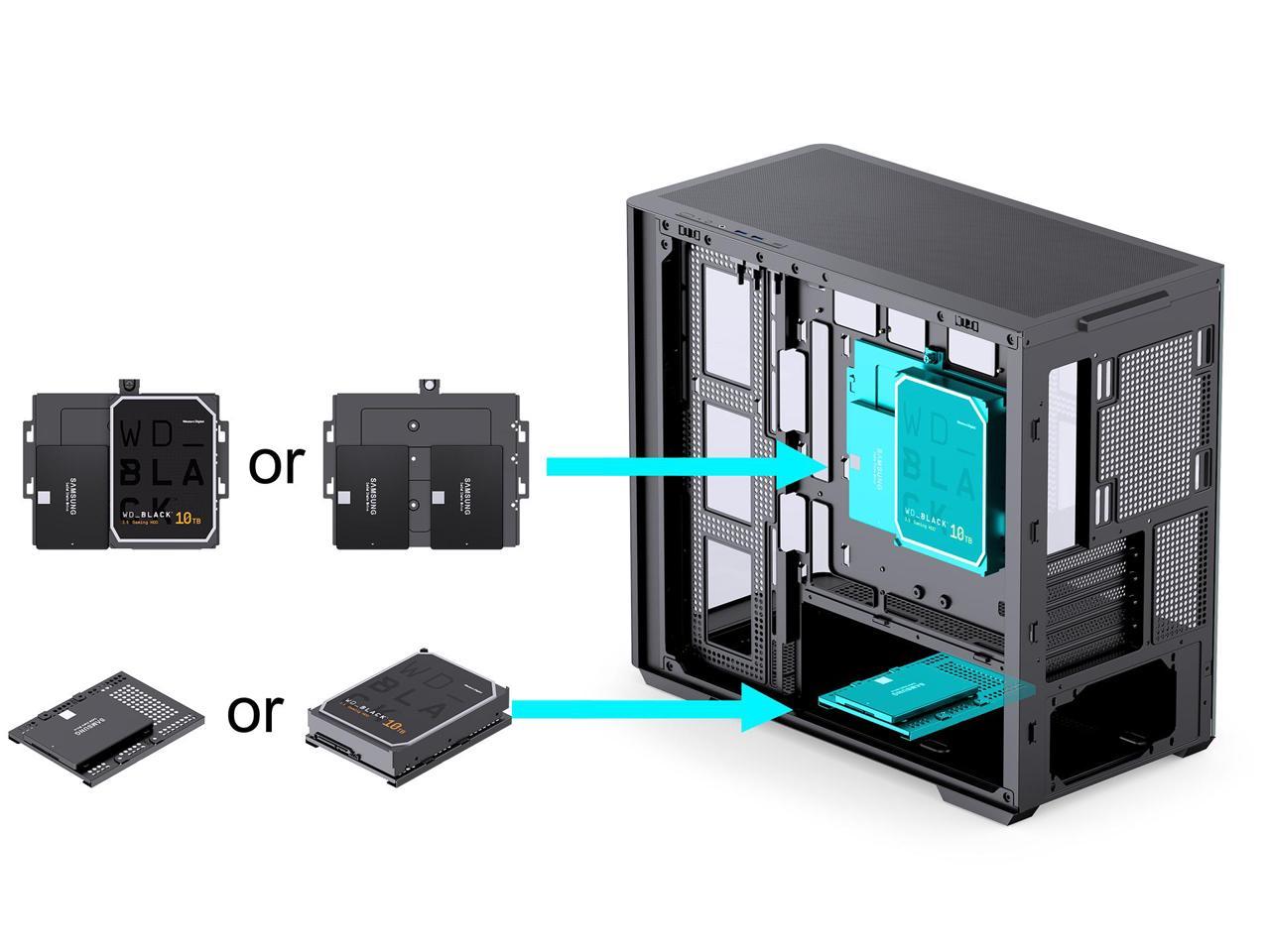

DRIVE BAY:
• 2.5"SSD*2
• 3.5"HDD*1 or 2.5"SSD*1
• 3.5"HDD*2 OR 2.5"SSD*3

FRONT IO PORT: USB3.2 Gen2 Type-C*1 / USB3.0*2 / AUDIO & MIC*1
POWER SUPPLY: ≤200mm
CPU COOLER: ≤180mm

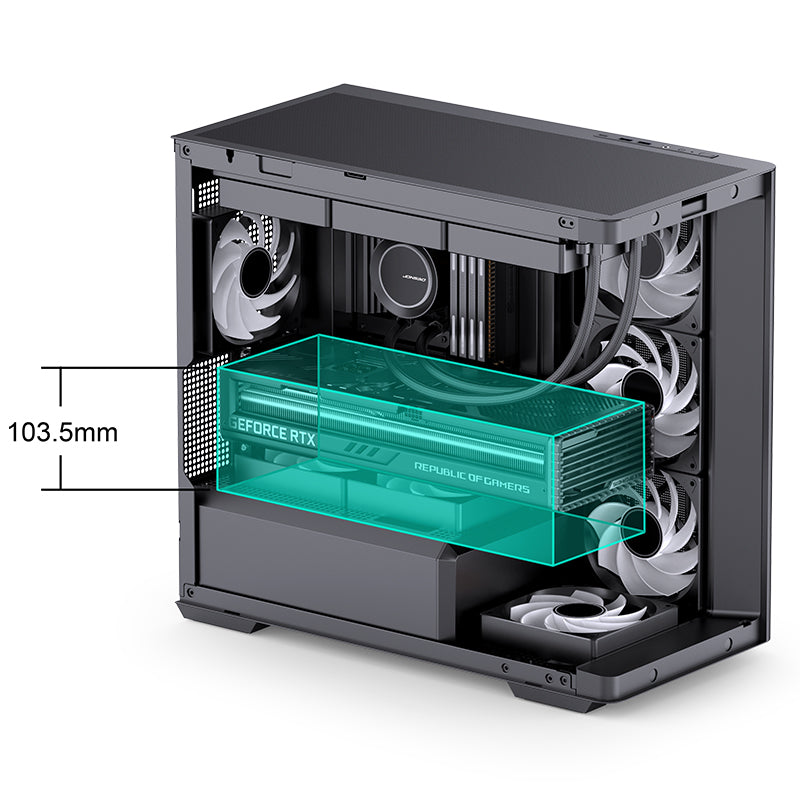

VIDEO CARD: ≤430mm

RADIATOR SUPPORT:
• TOP: 240mm / 360mm
• Rear: 120mm / 140mm

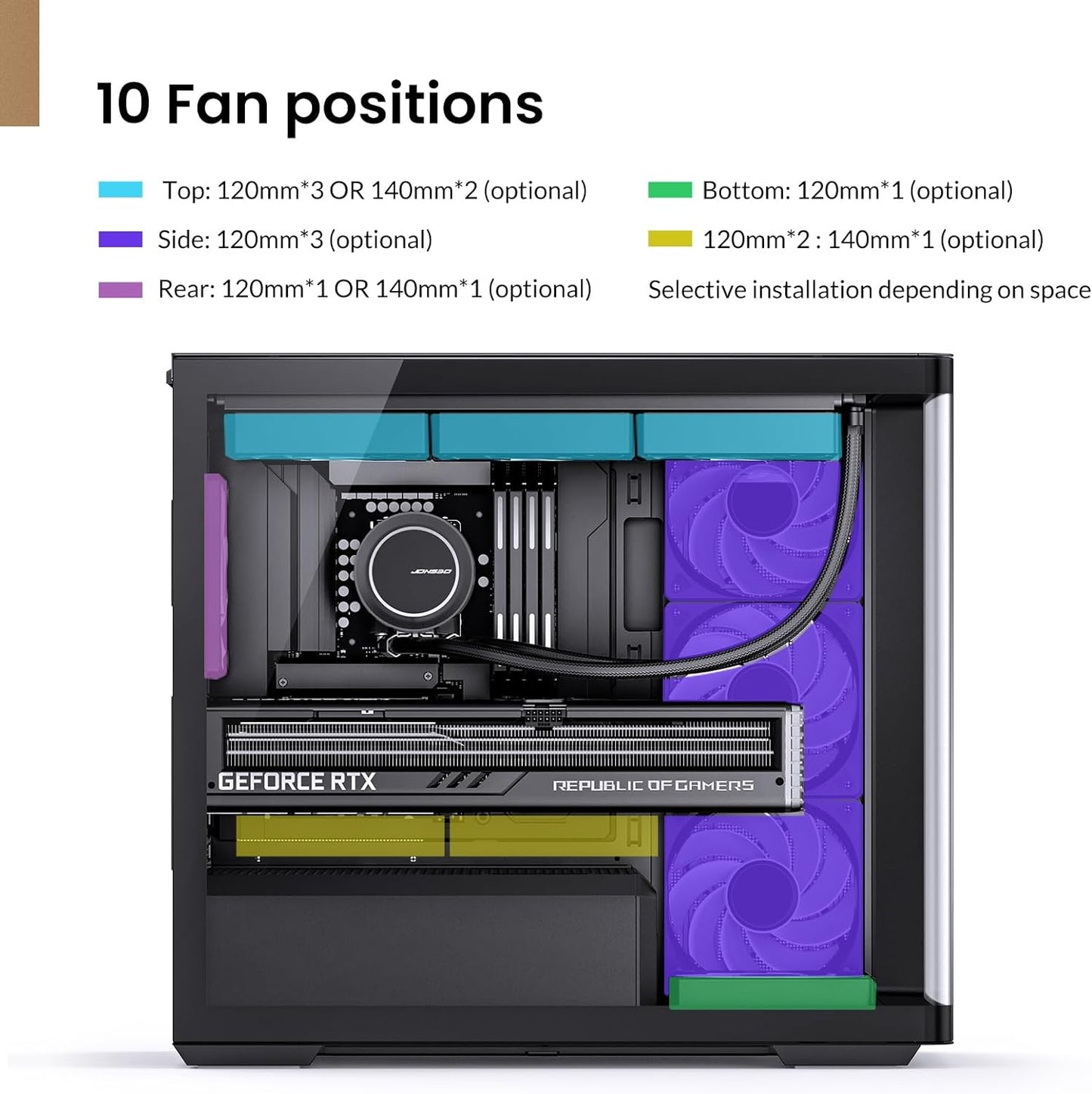

FAN MOUNTING POSITION
• Top: 120mm*3 or 140mm*2 (optional)
• Side: 120mm*3 (optional)
• Rear: 120mm*1 or 140mm*1 (optional)
• Bottom: 120mm*1 (optional)
• Power supply chamber: 120mm*2 or 140mm*1 (optional)

WEIGHT: Net 8.0kg
