Kingston NV2 M.2 2280 PCIe 4.0 x4 NVMe SSD (250GB / 500GB / 1TB / 2TB / 4TB) - Read/Write speeds up to 3,500/2,800MB/s, for Laptops and Small Form Factor PCs
Kingston NV2 M.2 2280 PCIe 4.0 x4 NVMe SSD (250GB / 500GB / 1TB / 2TB / 4TB) - Read/Write speeds up to 3,500/2,800MB/s, for Laptops and Small Form Factor PCs
Couldn't load pickup availability

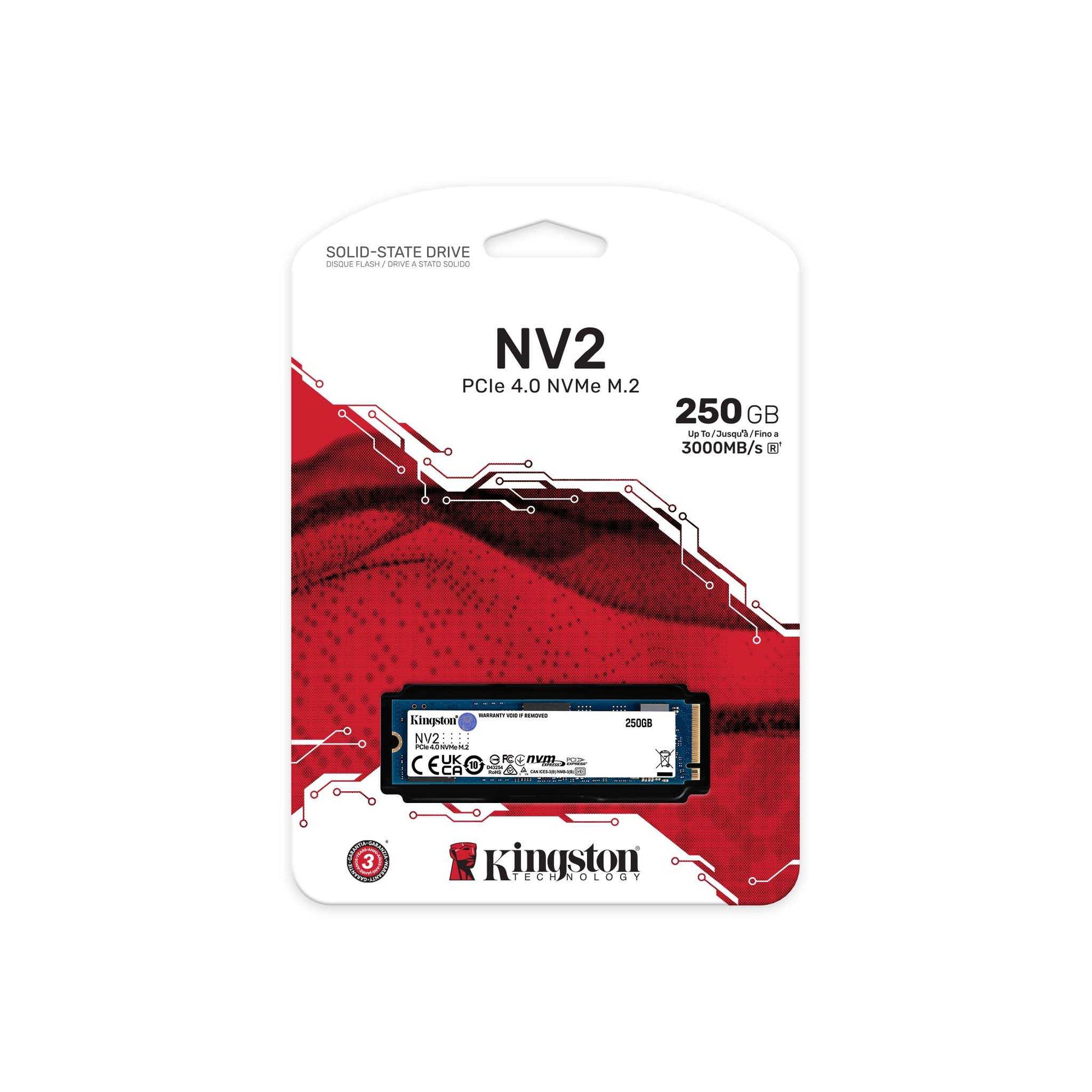

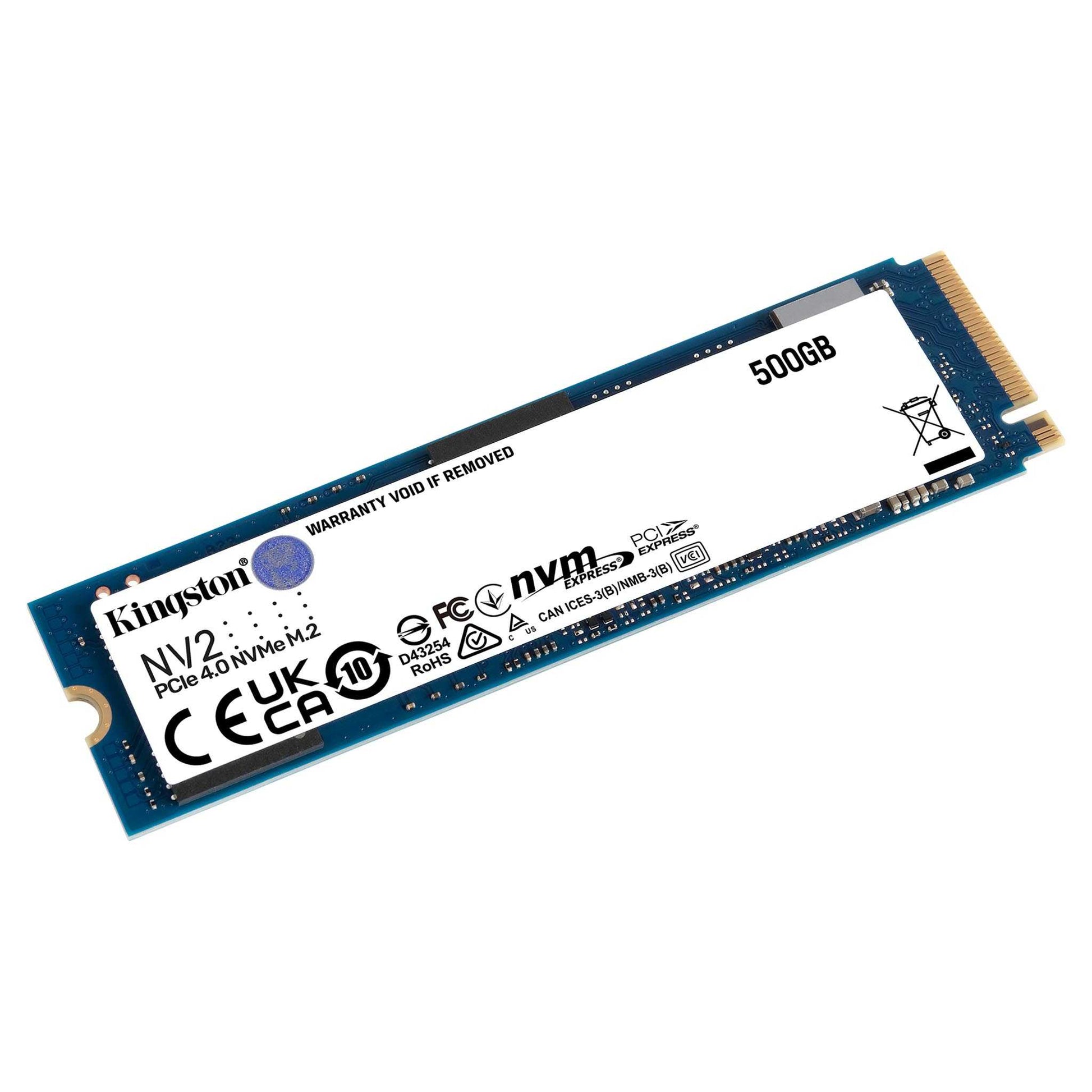

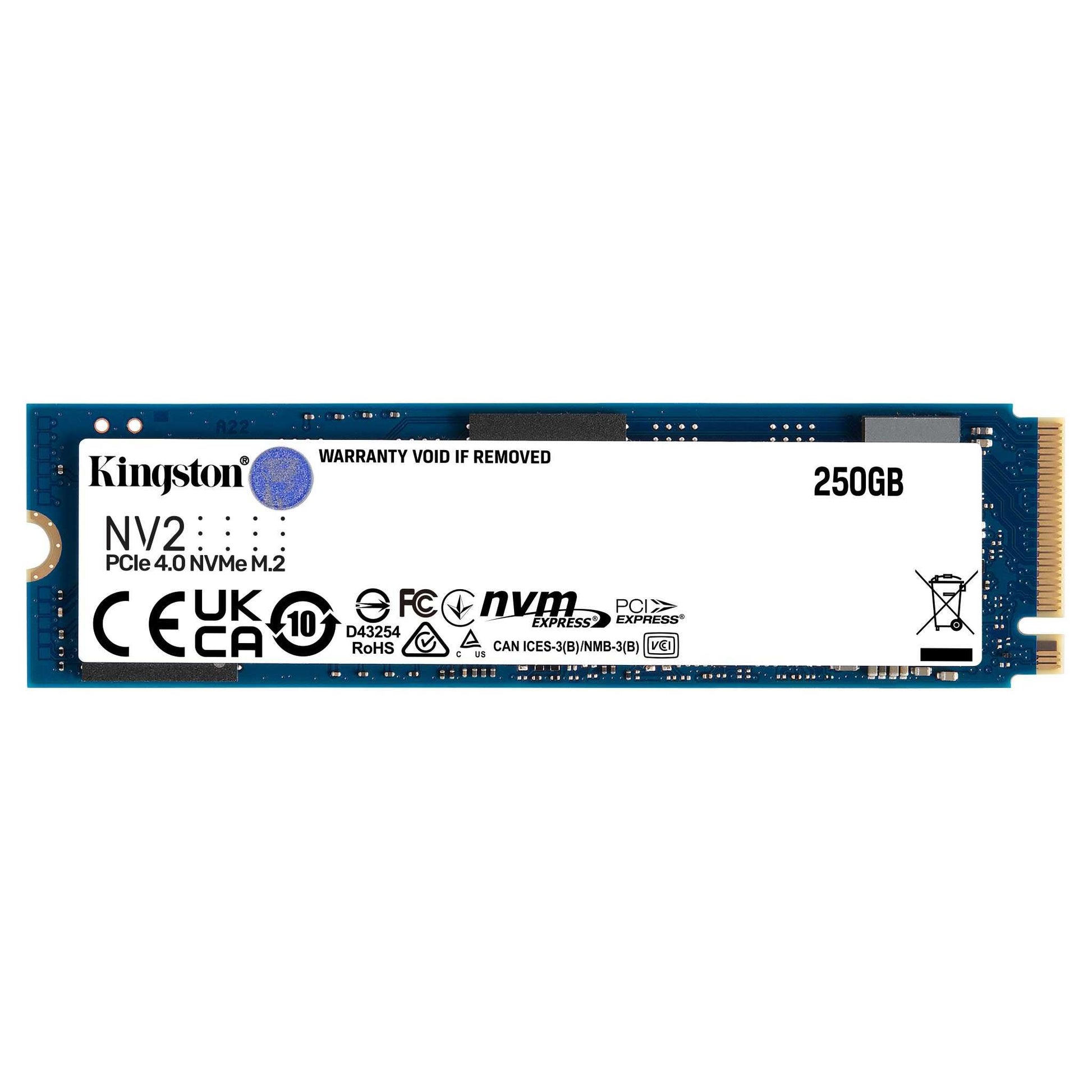

NV2 PCIe 4.0 NVMe SSD
Kingston’s NV2 PCIe 4.0 NVMe SSD is a substantial next-gen storage solution powered by a Gen 4x4 NVMe controller. NV2 delivers read/write speeds of up to 3,500/2,800MB/s1 with lower power requirements and lower heat to help optimise your system’s performance and deliver value without sacrifice. The compact single-sided M.2 2280 (22x80mm) design expands storage by up to 4TB2 while saving space for other components, making NV2 ideal for thinner notebooks, small-form-factor (SFF) systems and DIY motherboards.
Available in capacities from 250GB – 4TB2 to give you all the space you need for applications, documents, photos, videos and more.
FEATURES / BENEFITS
Gen 4x4 NVMe PCIe performance
Delivers read/ write speeds of up to 3,500/2,800MB/s for an overall faster system.
Ideal for systems with limited space
Easily integrate into designs with M.2 connectors. Perfect for thin laptops and small-form-factor PCs.
Extended capacities
Available in a range of high capacities up to 4TB to meet your data storage requirements.
Specifications
| Form factor | M.2 2280 |
| Interface | PCIe 4.0 x4 NVMe |
| Capacities | 250GB, 500GB, 1TB, 2TB, 4TB |
| NAND | 3D |
| Sequential read/write | 250GB – 3,000/1,300MB/s 500GB – 3,500/2,100MB/s 1TB – 3,500/2,100MB/s 2TB-4TB – 3,500/2,800MB/s |
| Storage temperature | -40°C~85°C |
| Operating temperature | 0°C~70°C |
| Dimensions | 22mm x 80mm x 2.2mm |
| Weight | 7g (all capacities) |
| Vibration operating | 2.17G (7-800 Hz) |
| Vibration non-operating | 20G (20-1000Hz) |
| MTBF | 2,000,000 hours |
| Warranty/support | Limited 3-year warranty with free technical support |
| Endurance (TBW-total bytes written) |
250GB – 80TB 500GB – 160TB 1TB – 320TB 2TB – 640TB 4TB – 1280TB |
This SSD is designed for use in desktop and notebook computer workloads and is not intended for server environments.
1. Based on “out-of-box performance” using a PCIe 4.0 motherboard. Speed may vary due to host hardware, software and usage.
2. Some of the listed capacity on a Flash storage device is used for formatting and other functions and is thus not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston’s Flash memory guide at kingston.com/flashguide.
3. Total Bytes Written (TBW) is derived from the JEDEC Client Workload (JESD219A).
4. Limited warranty based on 3 years or “Percentage Used”, which can be found using the Kingston SSD Manager (Kingston.com/ SSDManager). For NVMe SSDs, a new unused product will show a Percentage Used value of 0, whereas a product that reaches its warranty limit will show a Percentage Used value of greater than or equal to one hundred (100). See Kingston.com/wa for details.
