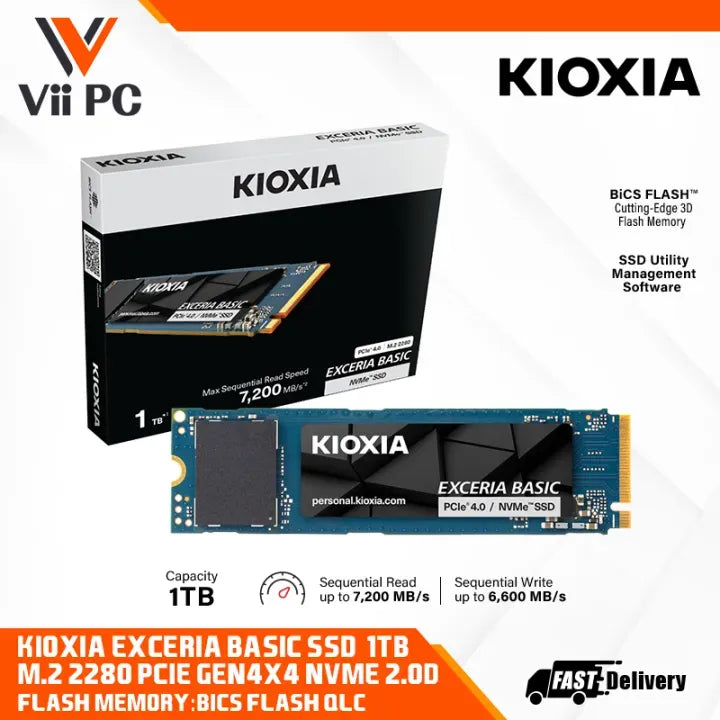

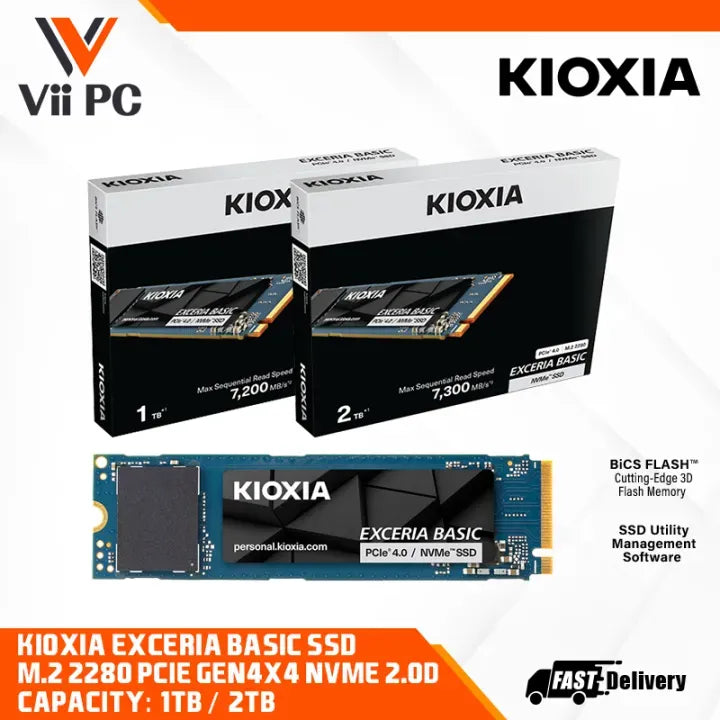

KIOXIA EXCERIA BASIC SSD M.2 2280 PCIe Gen4x4 NVME 2.0 Capacity 1TB / 2TB READ WRITE SPEED 7,200/6,600 MB/s GEN 4 SSD

EXCERIA BASIC SSD Product Specifications

Capacity / dimensions

• Capacity

1TB, 2TB

• Form Factor

M.2 Type 2280-S3-M

• Interface

PCI Express® Base Specification Revision 4.0 (PCIe®)

• Flash Memory type

BiCS FLASH™ QLC

• Interface Maximum Speed

64 GT/s (PCIe® Gen4 x4)

• Dimension (Max: LxWxH)

80.15 x 22.15 x 2.38 mm

• Interface Protocol

NVM Express™ Base Specification 2.0d

• Weight

5.6 g (typ.)

Performance

• Max Sequential Read Speed*1

1TB: 7,200 MB/s

2TB: 7,300 MB/s

• Max Sequential Write Speed*1

1TB: 6,600 MB/s

2TB: 6,800 MB/s

• Max Random Read Speed*2

1,000,000 IOPS

• Max Random Write Speed*2

1TB: 1,150,000 IOPS

2TB: 1,250,000 IOPS

• Endurance: TBW (Total Bytes Written)*3

1TB: 300 TB

2TB: 600 TB

• MTTF

1.5 million hours

Operating environment / protection performance

• Operating Temperature

0 ℃ (Ta) to 85 ℃ (Tc)

• Storage Temperature

-40 ℃ to 85 ℃

• Certification

RoHS compliant*5

• Shock Resistance

9.806 km/s2 {1,000 G} 0.5 ms half sine wave

• Vibration

25.4mm peak-to-peak (10Hz to 20Hz), 20G peak (20Hz to 2000Hz), (20min /Axis) x 3 Axis

• Supply Voltage

3.3 V ±5 %

• Power Consumption

PS3: 50 mW (typ.)

PS4: 3 mW (typ.)

• Power Consumption (Active)

1TB: 3.8 W (typ.)

2TB: 4.3 W (typ.)

Compatibility

• Connector Type

M.2 M key Socket

• Target Applications

Client desktops and laptops

Others

• Services and Support

Up to 5-year manufacturer's warranty*4

• Performance Optimization

TRIM, Idle Time Garbage Collection, Host Memory Buffer

Product Info

• 1TB

PN: LSF10Z001TG8

EAN: 4582761161108

• 2TB

PN: LSF10Z002TG8

EAN: 4582761161115
