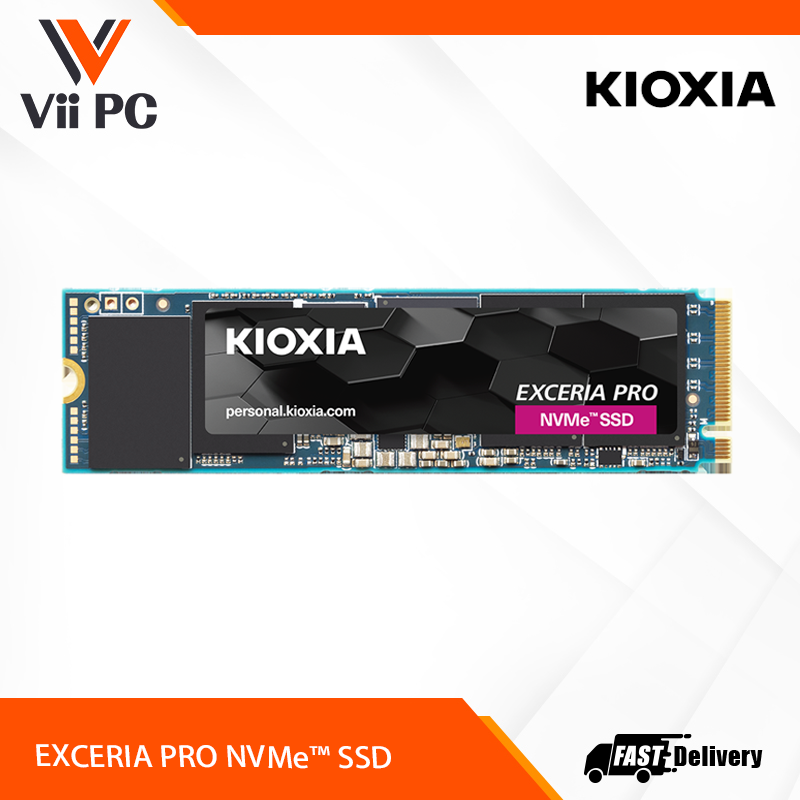

KIOXIA EXCERIA PRO NVMe SSD, M.2 2280 Form Factor, 1TB/2TB, 7300MB/s,
800,000 IOPS, PCI Express 4.0 Technology
The all-new KIOXIA EXCERIA PRO SSD Series uses next generation technology to take your high-end computing and gaming into a new realm of possibilities.Leveraging PCIe® 4.0 technology, this M.2 2280 single-sided drive offers up to 2TB of capacity—ideal for high-performance desktops and notebooks needing maximum speed.
⚡ Game-Changing Performance With sequential read speeds up to 7,300 MB/s and write speeds up to 6,400 MB/s, the EXCERIA PRO Series is designed to reduce game loading times, accelerate video editing, and speed up graphic rendering—perfect for content creators and serious gamers.
📏 Compact & Easy Upgrade Its slim M.2 2280 form factor allows direct installation onto your motherboard, eliminating cable clutter and enabling a quick and clean upgrade.
🚀 Powered by PCIe® 4.0 & NVMe™ 1.4 This "hero-class" SSD delivers next-gen performance, pushing the boundaries of flash storage to deliver real-world speed that hardcore gamers and creators demand.
🧠 Built with BiCS FLASH™ 3D TLC NAND Utilizing vertically stacked BiCS FLASH™ memory, the EXCERIA PRO delivers advanced reliability and speed.
🛠️ SSD Utility Management Software Monitor your SSD’s health, update firmware, and optimize performance with KIOXIA’s SSD Utility. Use it to check your drive's status and Percentage Life Left to ensure long-term reliability.
Physical Specifications
-
Capacity: 1TB, 2TB
-
Form Factor: M.2 Type 2280-S2-M
-
Interface: PCI Express® Base Specification Revision 4.0 (PCIe® Gen4 x4)
-
Flash Memory Type: BiCS FLASH™ TLC
-
Max Interface Speed: 64 GT/s
-
Interface Command Set: NVM Express™ Revision 1.4
-
Dimensions (L × W × H): 80.15 mm × 22.15 mm × 2.23 mm
-
Drive Weight:
-
1TB: 7.6g (typical)
-
2TB: 8.0g (typical)
-
Performance Specifications
-
Max Sequential Read Speed: 7,300 MB/s
-
Max Sequential Write Speed: 6,400 MB/s
-
Max Random Read Speed (IOPS):
-
1TB: 1,000,000 IOPS
-
2TB: 800,000 IOPS
-
-
Max Random Write Speed (IOPS):
-
1TB: 1,100,000 IOPS
-
2TB: 1,300,000 IOPS
-
-
Endurance (TBW):
-
1TB: 400 TB
-
2TB: 800 TB
-
-
MTTF: 1.5 million hours
Environmental & Power Specifications
-
Operating Temperature: 0 °C (Ta) to 85 °C (Tc)
-
Storage Temperature: -40 °C to 85 °C
-
Certification: RoHS compliant
-
Shock Resistance: 9,806 m/s² (1,000 G), 0.5 ms half sine wave
-
Vibration Resistance: 196 m/s² (20 G) peak, 10–2,000 Hz, 20 min/axis × 3 axes
-
Supply Voltage: 3.3V ± 5%
-
Power Consumption (Active): 8.9 W (typical)
-
Power Consumption (Idle):
-
PS3: 50 mW (typical)
-
PS4: 5 mW (typical)
-
Compatibility
-
PCI Express: Compatible with PCI Express® Base Specification Revision 4.0 and NVM Express™ Revision 1.4 command set
-
Connector Type: M.2 M-Key Socket
-
Target Applications: Client desktops and laptops
