Lexar

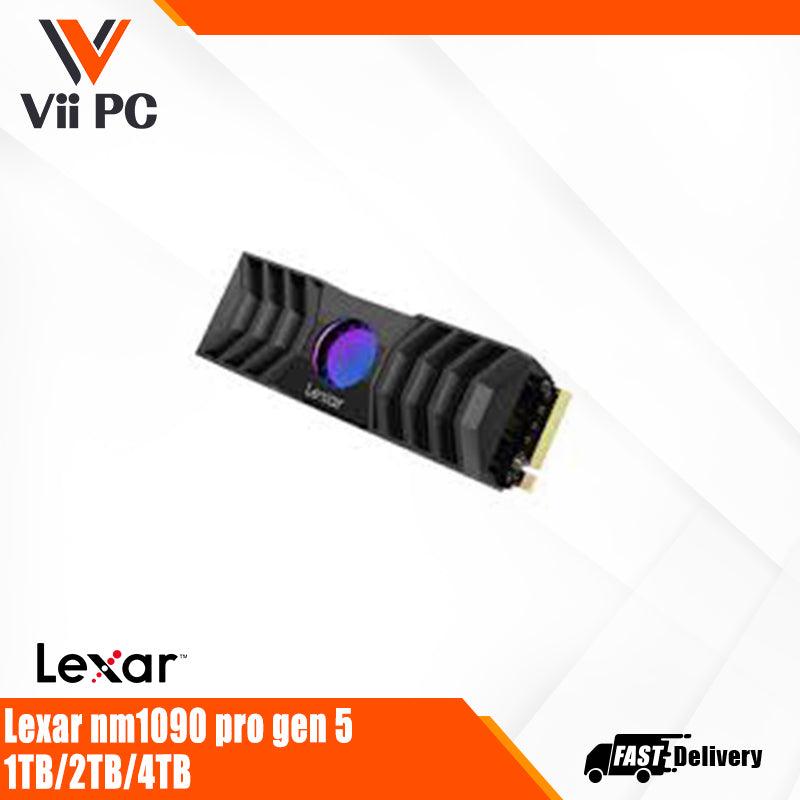

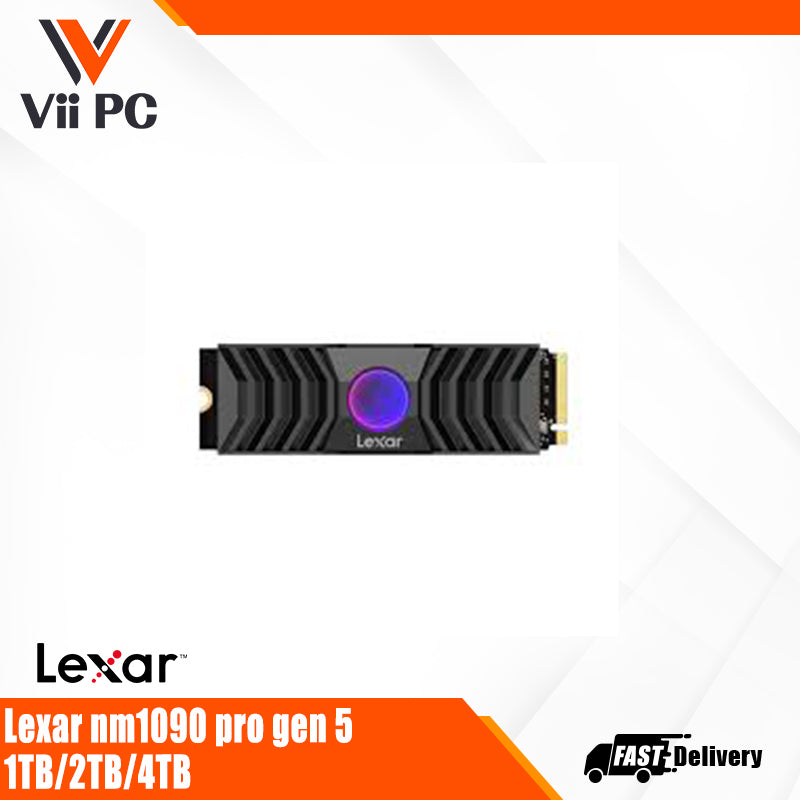

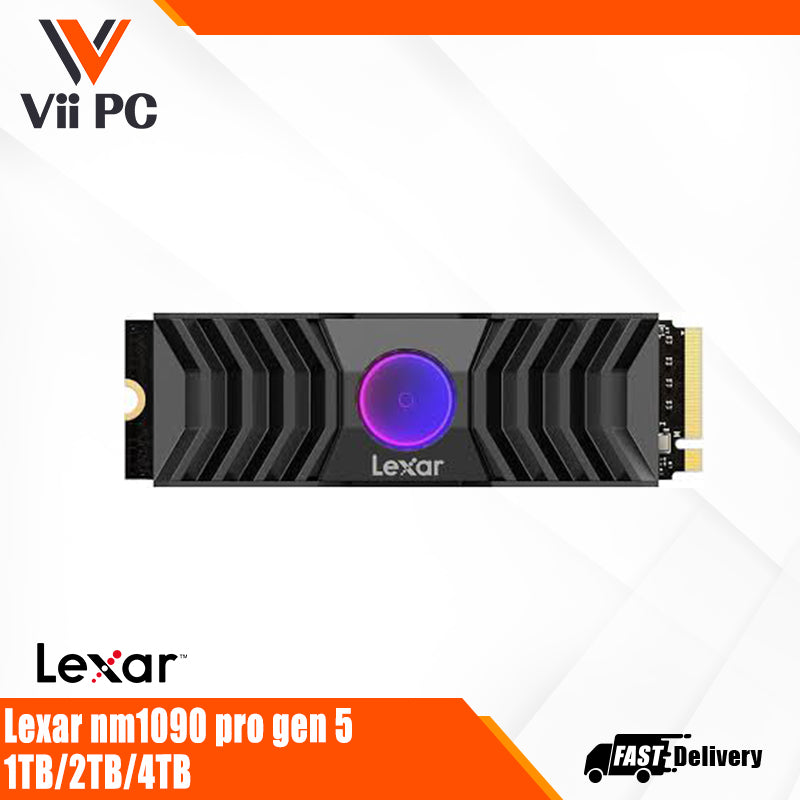

Lexar Professional NM1090 PCIe 5.0 SSD (1TB / 2TB / 4TB) - Read/Write speed up to 12000/11000MB/s, RGB heatsink with a heat-blasting fan

Lexar Professional NM1090 PCIe 5.0 SSD (1TB / 2TB / 4TB) - Read/Write speed up to 12000/11000MB/s, RGB heatsink with a heat-blasting fan

Regular price $399.00 SGD
Regular price Sale price $399.00 SGD
Sale Sold out

Lexar Professional NM1090 PCIe 5.0 SSD

Sequential Read to 12,000MB/s Read, Sequential Write Speed up to 11,000MB/s

Key Features:

  • Unique and potent heatsink features a heat-blasting fan plus bright RGB lighting
  • DRAM-based with SLC dynamic cache to improve performance and reduce latency
  • Supports Microsoft DirectStorage
  • Compatible with Intel 13th and 14th gen & AMD Ryzen 7000 series CPUs
  • Use Lexar DiskMaster disk management tool to optimize and protect the drive to achieve higher performance, better data security, and a longer lifespan

Full-throttle Performance, Maximized Cooling
With lightning-fast speeds up to 12000MB/s read, 11000MB/s write and an RGB heatsink with a heat-blasting fan, the Lexar Professional NM1090 PCIe 5.0 SSD is designed for superior performance. The drive features SLC dynamic cache which improves performance and reduces latency, plus it supports Microsoft DirectStorage and is compatible with Intel 13 and 14 and AMD Ryzen 7000 series CPUs.

Twice as Fast as PCIe 4.0
PCIe 5.0 speeds of up to 12000MB/s read, 11000MB/s write deliver cutting-edge performance.

Exceptionally Cool Design
A unique and potent heatsink features a heat-blasting fan plus programmable RGB lighting for the ultimate in cool.

Built to Perform
The Lexar Professional NM1090 PCIe 5.0 SSD is DRAM-based and uses SLC dynamic cache to improve performance, reduce latency, and support Microsoft DirectStorage.

CPU Compatibility
Compatible with Intel 13th and 14th gen and AMD Ryzen 7000 series CPUs.

Monitor Drive Health and Optimize Performance
Supports Lexar DiskMaster disk management tool.

Rigorously Tested
All Lexar products undergo extensive testing in the Lexar Quality Labs, facilities with thousands of different cameras and digital devices to ensure performance, quality, compatibility, and reliability.

Specifications

Capacity 1TB / 2TB / 4TB
Form Factor M.2 2280
Interface PCIe Gen5x4
Speed 1TB: Sequential read up to 11,500MB/s, write up to 9,000MB/s, Random read up to 1300K IOPs,
random write up to 1400K IOPs

2TB: Sequential read up to 12,000MB/s, write up to 11,000MB/s, Random read up to 1400K IOPs,
random write up to 1400K IOPs

4TB: Sequential read up to 12,000MB/s, write up to 11,000MB/s, Random read up to 1400K IOPs,
random write up to 1400K IOPs
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Shock Resistant 1500G, duration 0.5ms, Half Sine Wave
Vibration Resistant 10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis (X, Y, Z)
Total Bytes Written (TBW) 1TB: 700TBW
2TB: 1400TBW
4TB: 3000TBW
MTBF 1,500,000 Hours
Dimensions 80 x 24 x 17.35mm / 3.15” x 0.94” x 0.68”
Weight 72.5g / 0.16 lbs
Warranty 5-year limited warranty


1 Up to 12000MB/s read transfer, up to 11000MB/s write. Speeds based on internal testing. Actual performance may vary.
2 Comparison based on published performance of PCIe 4.0 drives. Actual performance may vary.
3 Coming in mid-2024. Lexar is not liable for any loss of data or images.
Actual usable memory capacity may vary. 1GB equals 1 billion bytes.
