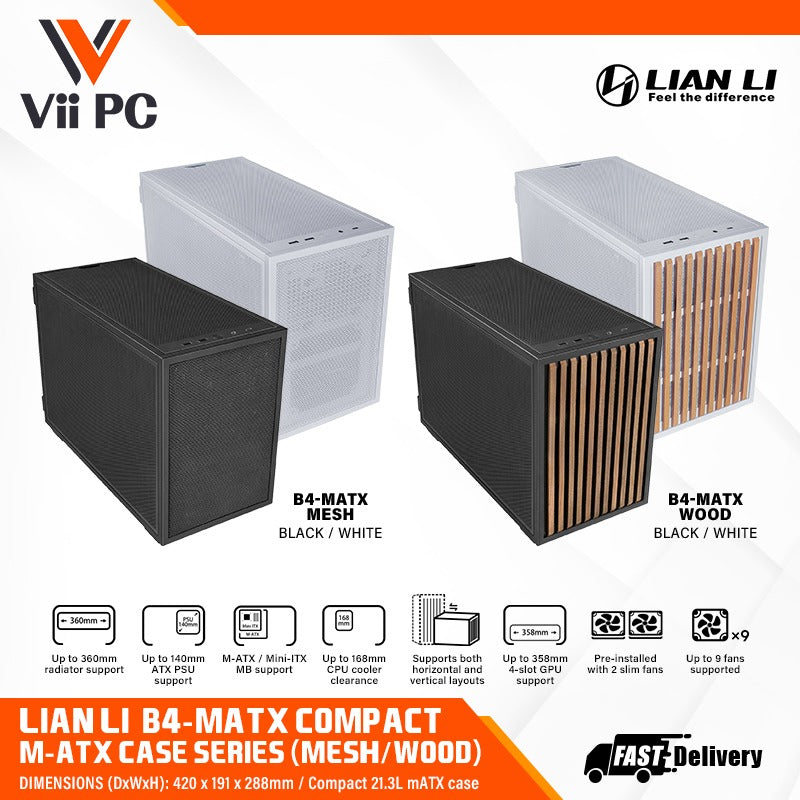

LIAN LI B4 MATX CASE MESH / WOOD / BLACK /WHITE SUPPORT UP TO 360MM AI

Highlights

Compact 21.3L mATX case with broad compatibility.
Supports M-ATX / Mini-ITX, 358mm 4-slot GPUs, and 140mm ATX PSUs.
Supports up to 360mm radiators with SFX PSU, or 240mm with ATX PSU.
Up to 168mm CPU cooler clearance, or 162mm with side fan bracket.
Includes 2 pre-installed 120 × 120 × 15mm slim top fans.
Supports up to 9 fans across top, side, bottom, rear, and front.
Removable top bracket simplifies CPU 8-pin routing and fan setup.
Removable front bracket allows easier large GPU installation.
Supports both horizontal and vertical layouts.
Optional Vertical AeroDeck adds up to 3 × 120mm or 2 × 140mm fans for GPU cooling.

Description

PRODUCT NAME	B4-mATX Mesh	B4-mATX Wood	B4-mATX Vertical AeroDeck
MODEL NO.	B4X/B4W	B4X-WD/B4W-WD	B4-1X/B4-1W
COLOR	Black / White	Black / White	Black / White
DIMENSIONS (DxWxH)	420 x 191 x 288mm	420 x 191 x 288mm	407x 191 x41.2mm
MATERIAL	Steel	Steel, Wood (Walnut / Beech)	Tempered Glass, Steel Wood (Walnut / Beech)
MOTHERBOARD SUPPORT	Back-Connect: NO / Micro-ATX, Mini ITX
STORAGE	Front: 2.5” SSD x 1 Bottom: 3.5” HDD x 1 or 2.5” SSD x 1
GPU LENGTH CLEARANCE	358mm
CPU COOLER HEIGHT CLEARANCE	162mm (168mm without side fan bracket)
PSU SUPPORT	ATX (Up to 140mm) / SFX
RADIATOR SUPPORT	Side (With SFX PSU) 360mm / 280mm /240mm Side (With ATX PSU): 240mm
FAN SUPPORT	Top: 120mm x 2 (Pre-installed) Side (With SFX PSU) 120mm x 3 / 140mm x 2 Side (With ATX PSU): 120mm x 2 Front (With SFX PSU ONLY): 120mm slim fan x 1 Bottom: 120 mm x 3 / 140mm x 2 Rear: 120 mm x 1		Top：120mm x 1 Side（With SFX PSU）：120mm x 3 / 140mm x 2 Side（With ATX PSU）：120mm x 2 Front：120mm x 3 Bottom：120mm x 1
INCLUDED FANS	Top: 120x120x15mm (x2)
DUST FILTER	Bottom: Magnetic Filter x 1		PVC Dust Filter x 1
I/O PORTS	USB 3.0 Type A x 2 Power Button x 1 Audio x 1 USB 3.2 Type C x 1
WARRANTY	1-Year
