LIAN LI

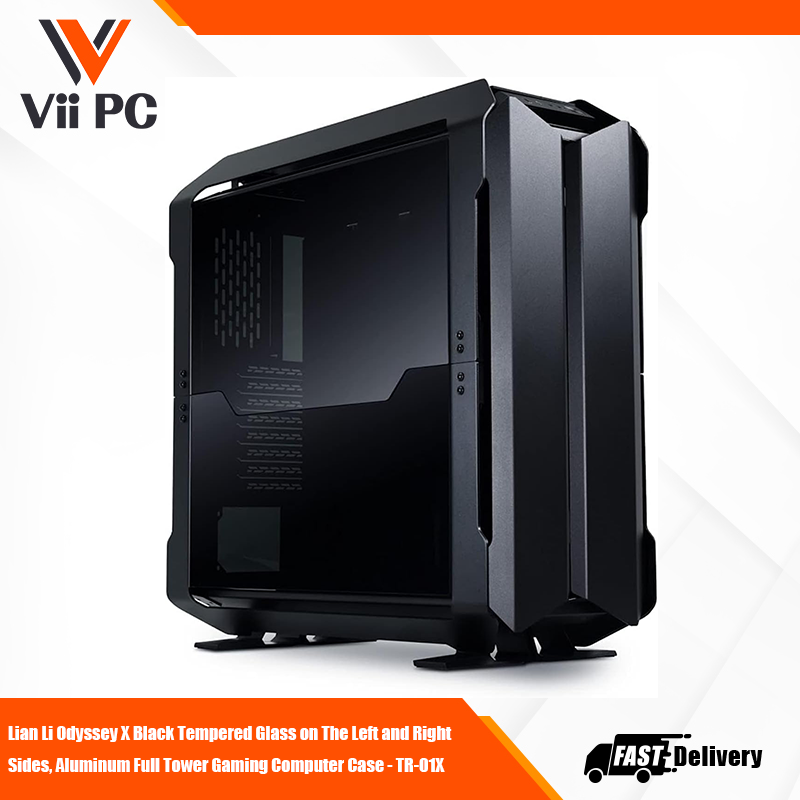

LIAN LI Odyssey X Black Aluminum Full Tower Gaming Computer Case (TR-01X) - Tempered Glass on the Left and Right Sides
LIAN LI Odyssey X Black Aluminum Full Tower Gaming Computer Case (TR-01X) - Tempered Glass on the Left and Right Sides
Couldn't load pickup availability
ODYSSEY X
ODYSSEY X is a high-quality aluminum chassis that established a unique look for performance-oriented enthusiasts with an open airflow design and spacious main chamber for large components.
- Sandblasted anodized finish aluminum full tower chassis
- Open airflow design with dual-side folding tempered glass panels
- Supports up to EEB/E-ATX motherboard with 8 expansion slots
- Ample water-cooling mounting space: Support up to 480mm radiator, includes water pump mounting bracket
- Cable management at ease
Premium Aluminum Craftsmanship
Each bracket is sturdily designed with high-end materials.
Premium Aluminum Craftsmanship
The entire designed concept of the ODYSSEY X revolves around an open airflow case for the system to run at maximum performance without thermal throttling. Lighting components are well displayed through the 4mm thick tinted tempered glass panels while abundant airflow comes through large gaps present in the glass panel fold.
Optimized Cable Management and Ample Drive Mounting Space
With rubber grommets covering the cable pass-through holes and the presence of the 5 cable channels equipped with Velcro straps, routing cables in the ODYSSEY X is an easy job. Moreover, the Dynamic mode top cover is converted into a cable cover in Performance mode, enhancing the look of the build.
There are 3 mounting spaces for 2.5” SSD or 3.5”HDD behind the motherboard tray.
Front I/O Module
The I/O port module can be relocated to another place in a different mode and can be oriented in the user’s preferred direction.
Supports up to EEB Motherboard
No matter configured in which mode, the ODYSSEY X can fit up to EEB motherboards with 8 expansion slots.
Flexible Layout for Long GPU and PSU
The ODYSSEY X can accommodate GPUs of up to 423mm in length and PSUs of up to 280mm.
SPECIFICATIONS
| MODEL NAME | ODYSSEY X | |
|---|---|---|
| MODEL NO. | TR-01X | |
| COLOR | BLACK | |
| DIMENSIONS |
Dynamic / Dynamic-R (Rotate) (D) 575.5mm x (W) 234mm x (H) 558.5mm Performance (D) 537.1mm x (W) 368.6mm x (H) 596.7mm |
|
| MATERIALS | Aluminum Steel 4.0mm Black tempered glass (both sides) |
|
| MOTHERBOARD SUPPORT | EEB /E-ATX / ATX / Micro-ATX / Mini-ITX | |
| FAN SUPPORT |
Dynamic Front：3 x 120mm or 2 x 140mm Top：3 x 120mm or 2 x 140mm Side：3 x 120mm or 2 x 140mm Dynamic-R (Rotate) Front：3 x 120mm or 2 x 140mm Base：4 x 120mm or 3 x 140mm Performance Front：4 x 120mm or 3 x 140mm Top：3 x 120mm or 2 x 140mm RADIATOR SUPPORT: Dynamic Front：1 x 360/280/240mm Side：1 x 360/280/240mm Dynamic-R (Rotate) Front：1 x 360/280/240mm Base：1 x 480/420/360/280/240mm Performance Front：1 x 480/420/360/280/240mm Top：1 x 360/280/240mm |
|
| PSU SUPPORT LENGTH | Max 280mm | |
| GPU LENGTH CLEARANCE | Max 423mm | |
| CPU COOLER HEIGHT CLEARANCE | Max 167mm | |
| DRIVE | 3 X 3.5″ HDD or 3 X 2.5″ SSD | |
| EXPANSION SLOT | 8 | |
| I/O PORTS | 2 X USB 3.0, 1 X USB 3.1 TYPE-C, 1 X HD AUDIO | |
| WARRANTY | 1 year | |
