LIAN LI

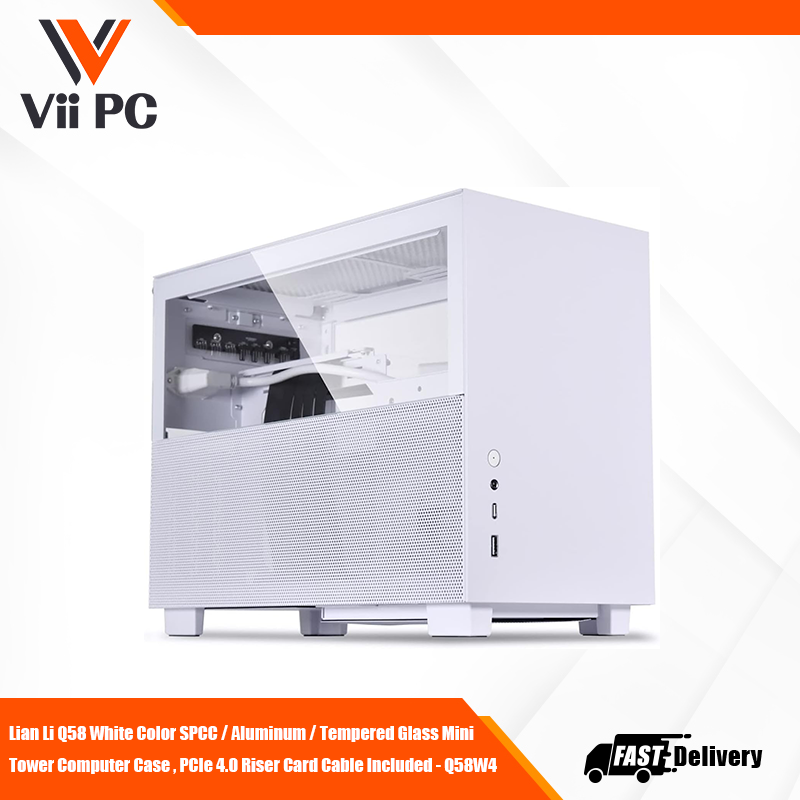

LIAN LI Q58 Mini-ITX Aluminum Chassis (White - Q58W4) - SPCC / Aluminum / Tempered Glass Side panels, PCIe 4.0 Riser Card Cable Included

LIAN LI Q58 Mini-ITX Aluminum Chassis (White - Q58W4) - SPCC / Aluminum / Tempered Glass Side panels, PCIe 4.0 Riser Card Cable Included

$225.00 SGD
$225.00 SGD
Sale Sold out

Q58 Mini-ITX Aluminum Chassis

COMPACT DESIGN ENORMOUS VERSATILITY

The ultimate 14.5L mini-ITX chassis choice

  • Mini-ITX Aluminum Chassis
  • Features swappable hinged glass and mesh panels
  • Included PCIe 3.0 riser cable for vertically mounted GPU
  • Supports SFX PSU and up to 160mm long ATX PSU
  • Supports up to 325mm long radiator in certain circumstances
  • Supports 4 storage drive mounting locations
  • Cable management friendly with tie points and included LED/ fan hub

Features a fully white-coated frame, silver screws, white USB 3.0, and a white PSU cable extension.

SWAPPABLE HINGE PANELS
The dual side split hinged panels feature two 3.0mm thick tempered glass panels and two 1.0mm fine mesh panels that are swappable.

MODULAR DESIGN FOR SFX/ATX POWER SUPPLY
Compatible for both SFX and ATX PSU, the Q58 comes with an additional bracket to transform from SFX PSU mode to ATX PSU mode.

DETAILS MAKE PERFECTION: BUILD LIKE A PRO – AVOID GLASS DAMAGES
The hinged glass panel features a curve hole at the rear, which allows opening of the panel without removing the thumbscrew, and helps avoid any possible damage caused to the glass by preventing it from leaning on the table.

EFFORTLESS CONNECTION – INCLUDED LED/ FAN HUB


Flip the LIAN LI logo plate at the rear to access the LED/fan hub that supports 3 PWM fan headers and 3 LED headers ( 5V 3 Pin ARGB) without dealing with cable clutter.

ADVANCE KIT – TOOLLESS HOT SWAP SSD TRAY
Exclusively design for the Q58, a toolless hot swap SSD tray is located at the front top of the case. Simply open the top and front panel to quickly remove or replace the SSD without unplugging any cables.


FLEXIBLE COOLING SUPPORT
In SFX PSU mode, the Q58 has room for a 280mm AIO. Depending on the mounting configuration employed, the actual supported length of the AIO varies.

1. Radiator directly mount on the top fan bracket
2. Radiator mount below the fan
3. Radiator mount below the fan + Removed front SSD tray

COMPACT YET SPACIOUS GPU SUPPORT WITH RISER CABLE
The Q58 implements a PCIe 3.0 or PCIe 4.0 riser cable to vertically mount a GPU up to 3 slots thick and 320mm long.

USB 3.1 TYPE C PORT
The Q58 I/O ports are located at the front panel and feature a Type C port with efficient transmission speeds.

COMPREHENSIVE CABLE MANAGEMENT
Several Velcro straps and multiple cable tie-down points are provided to tidy up the cables and the bottom fan bracket helps to snuggle the cables into the Q58.

STOP THE DUST
Two magnetic dust filters are attached at the bottom of the chassis and the mesh panel to prevents dust from entering the case.



SPECIFICATIONS

MODEL NAME Q58
MODEL NO. Q58W4 WHITE
COLOR White
RISER CABLE GENERATION PCIe4.0
DIMENSIONS (D) 342mm x (W) 170mm x (H) 250mm
MATERIALS Aluminum Exterior
SPCC Steel Interior
3.0mm tinted tempered glass side panels
MOTHERBOARD SUPPORT Mini-ITX
FAN SUPPORT SFX PSU Mode:
Top：2x 120mm or 2x 140mm
Bottom：1x 120mm
ATX PSU Mode:
Top：1x 120mm or 1x 140mm
Bottom：1x 120mm
RADIATOR SUPPORT SFX PSU Mode:
Top：1x 240mm or 280mm
(Max length 315mm, or max 325mm if remove front SSD tray)
Bottom：1x 120mm
ATX PSU Mode:
Top：1x 120mm
Bottom：1x 120mm
PSU SUPPORT SFX / SFX-L / ATX (max length 160mm)
GPU LENGTH CLEARANCE Max 320mm
CPU COOLER CLEARANCE Max 67mm
DRIVE SUPPORT SFX PSU Mode:
4x 2.5” SSD or 3x 2.5” SSD + 1x 3.5” HDD
ATX PSU Mode:
2x 2.5” SSD
EXPANSION SLOT 3
I/O PORTS 1x USB 3.0, 1x USB 3.1 TYPE-C, 1x HD AUDIO
DUST FILTER 2 x bottom magnetic
WARRANTY 1 year
