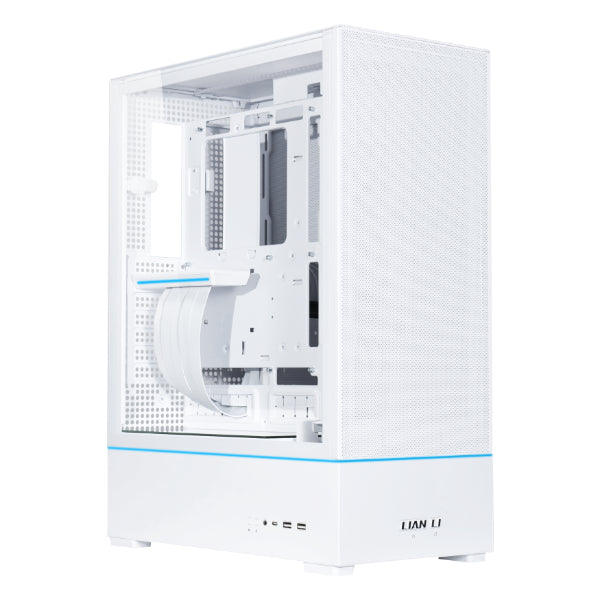

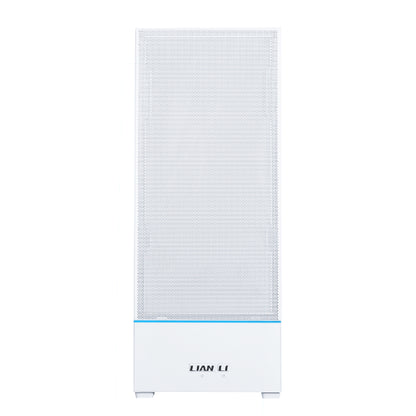

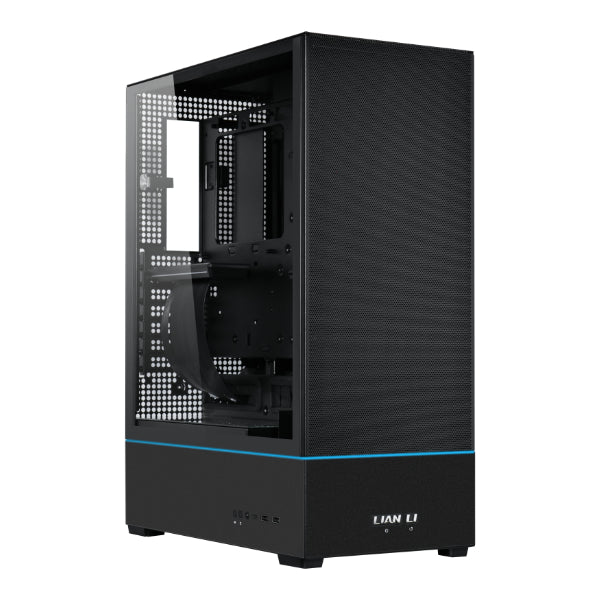

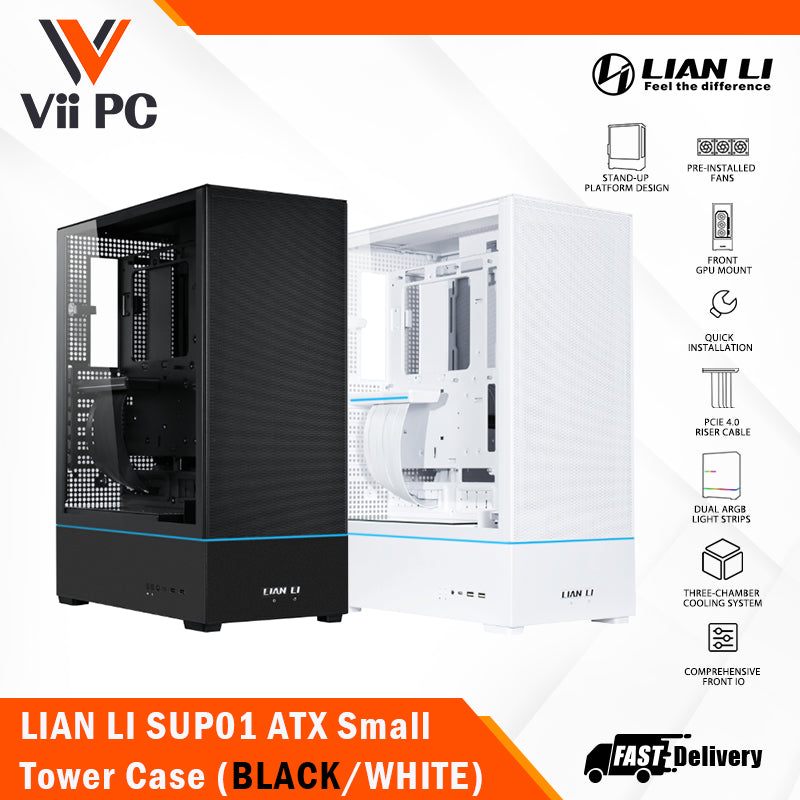

LIAN LI SUP01 ATX Small Tower Case (Black/White) - 45-liter, 510mm PCIe 4.0 riser cable with an RGB lighting cover included
LIAN LI SUP01 ATX Small Tower Case (Black/White) - 45-liter, 510mm PCIe 4.0 riser cable with an RGB lighting cover included
Regular price
$160.00 SGD
Regular price
Sale price
$160.00 SGD
Unit price
per
Couldn't load pickup availability

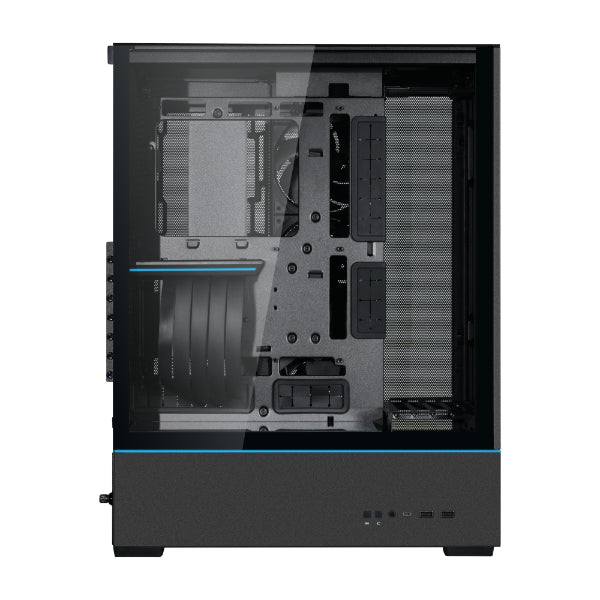

SUP01 ATX Small Tower
Optimize your desktop with the LIAN LI SUP01, the stand-up platform design not only minimizes footprint but also ensures impeccable hardware compatibility and superior cooling efficiency.
- 45-liter stand-up platform case for a minimal footprint

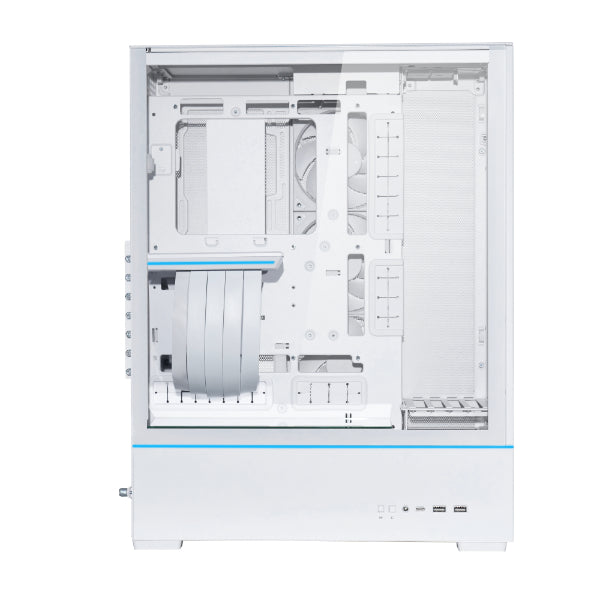

- Front-facing GPU installation with adjustable mounting brackets for a unique visual and cooling approach
- Independent chambered direct cooling design that brings the most effective heat dissipation for all core components
- Includes 510mm PCIe 4.0 riser cable with an RGB lighting cover that shares the same lighting effects with the case ARGB strip
- Includes an exterior 120mm fan mounting bracket at the rear to push fresh air into the chassis

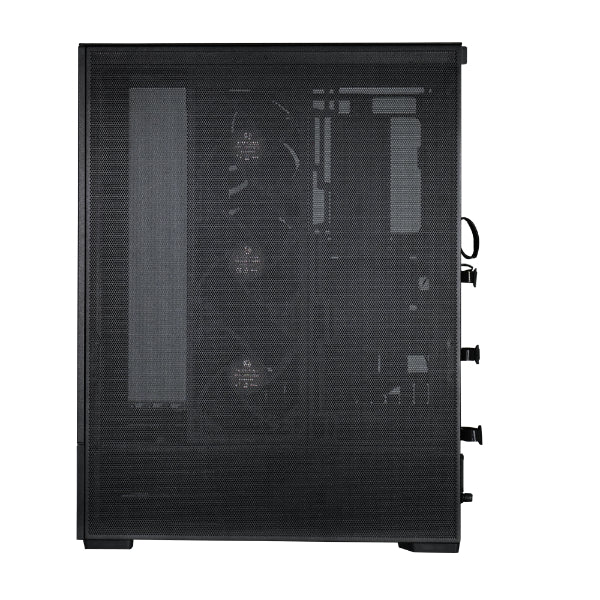

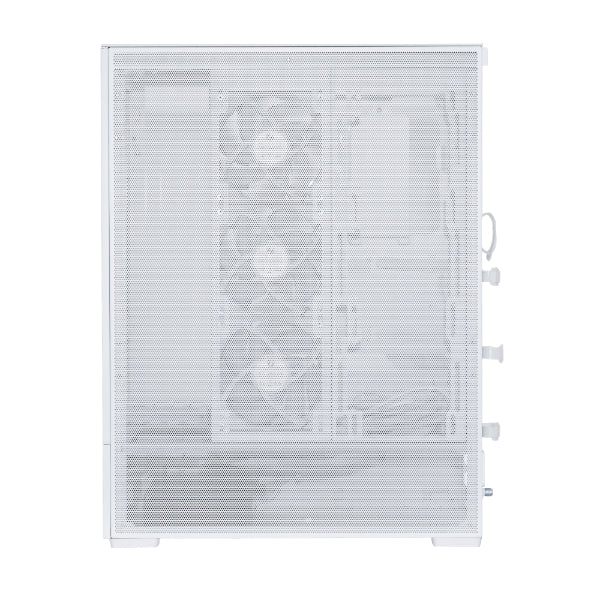

- Includes 3 x 120mm performance fans at the side for GPU exhaust
- Supports 360mm/280mm AIO with a maximum pump height of 88.2mm
- Supports standard motherboards up to ATX size and back-connect ATX motherboards
| MODEL NAME | SUP01 | |
|---|---|---|
| MODEL NO. | SUP01X BLACK | SUP01W WHITE |

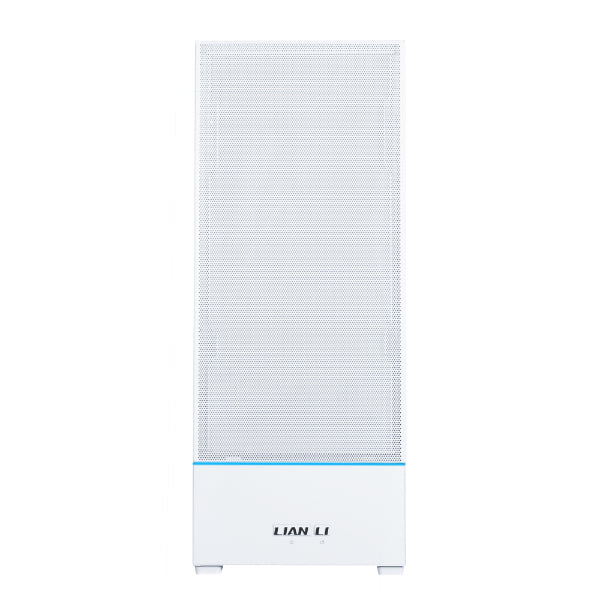

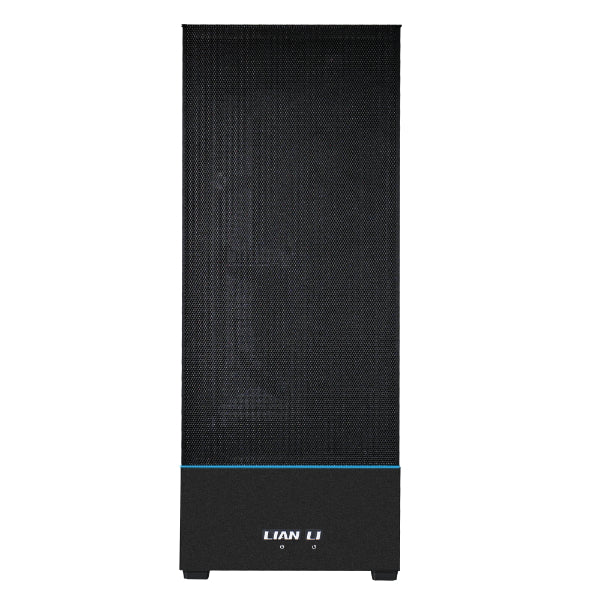

| COLOR | Black | White |
| CASE TYPE | Small Tower Case | |
| DIMENSION | (D) 403.45mm x (W) 212mm x (H) 534mm (D) 403.45mm x (W) 212mm x (H) 524mm (w/o feet) |
|
| CAPACITY | 44.8L | |
| MATERIAL | Steel 4.0mm Tempered Glass |
|
| RISER CABLE TYPE | PCIE 4.0 | |
| MOTHERBOARD SUPPORT | ATX/M-ATX/ITX ATX Back Connect |
|
| PSU SUPPORT | ATX (Max 220mm) | |
| INCLUDED FAN | 3 x 120mm PWM | |
| FAN SUPPORT | Side 1: 3 x 120mm Side 2: 3 x 120mm or 2 x 140mm Rear exterior: 1 x 120mm |
|
| RADIATOR SUPPORT | Side 2: 360mm or 280mm | |
| DRIVE SUPPORT | Drive Cage: 2 × 2.5” SSD or 2 × 3.5” HDD Above PSU shroud:2 × 2.5” SSD |
|
| GPU LENGTH CLEARANCE | Max 400mm | |
| CPU HEIGHT CLEARANCE | Max 88.2mm | |
| EXPANSION SLOTS | 7 (for low profile card) 4 (for standard profile card with extension cable) |
|
| I/O PORTS | 1 x Power Button 1 x Reset Button 2x USB 3.0 TYPE-A 1x USB 3.1 TYPE-C 1x Mic 1 x Light Color Button (C) 1 x Light Mode Button (M) |
|
| DUST FILTER | 1 x bottom tray 1 x front magnetic 1 x top magnetic |
|
| WARRANTY | 1 year | |
