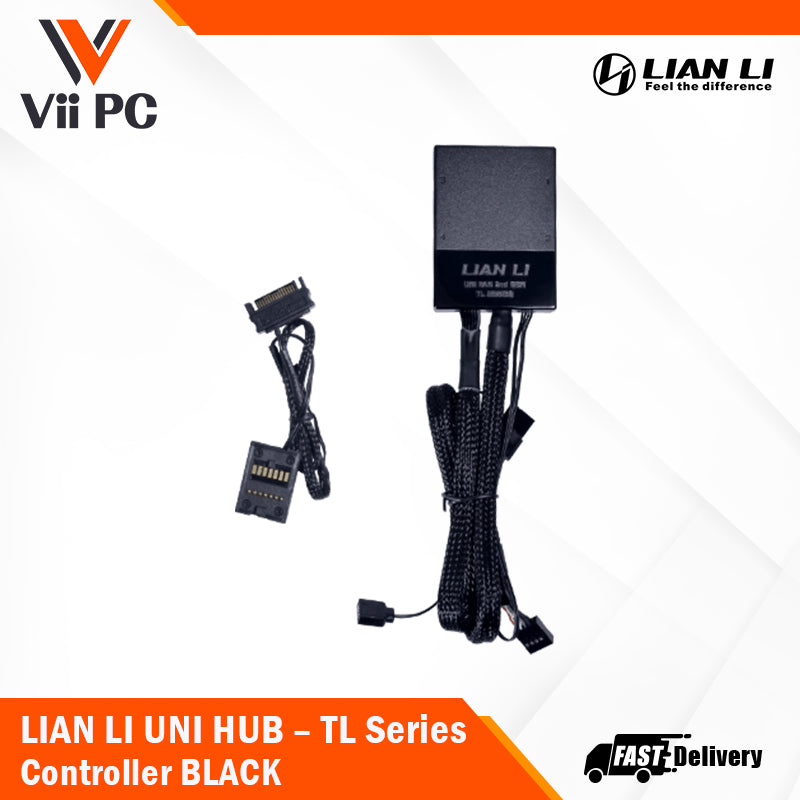

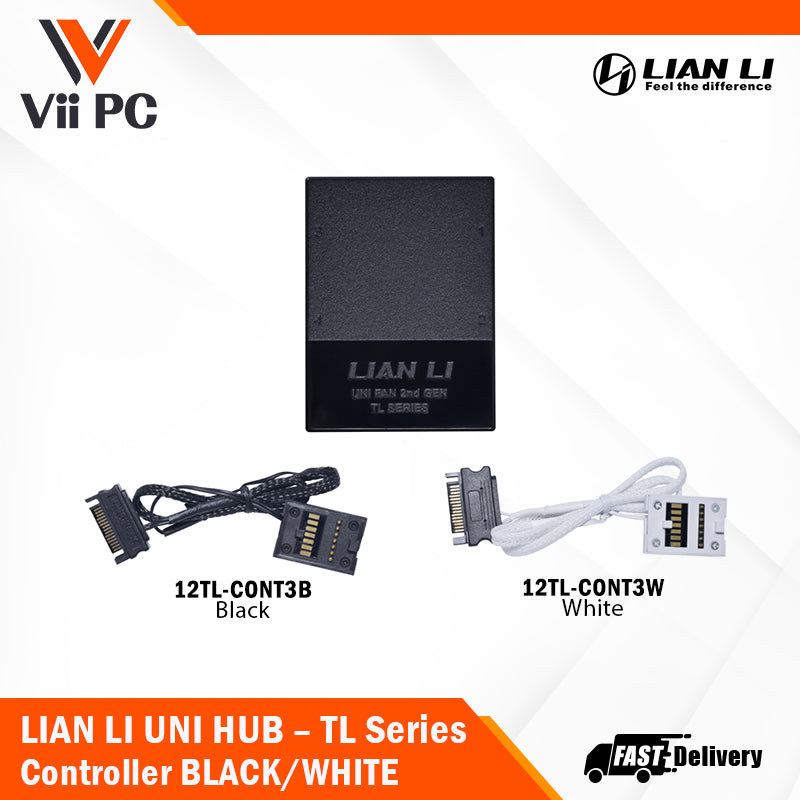

LIAN LI UNI HUB – TL Series Controller (Black/White)

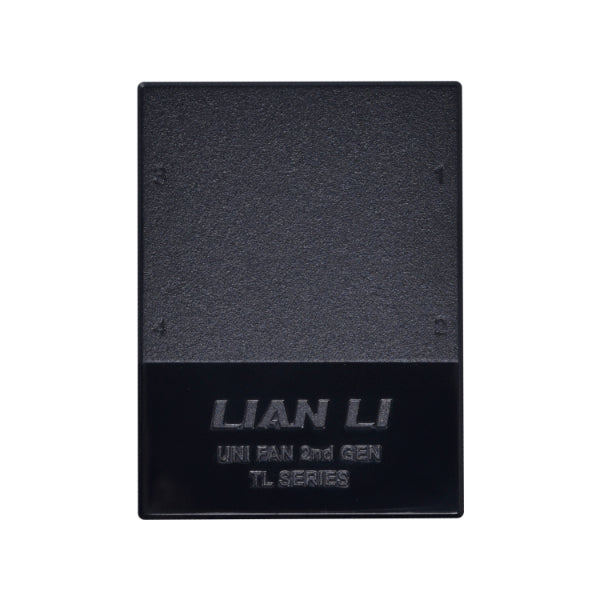

UNI HUB - TL Series Controller

• The controller for UNI FAN TL and TL LCD fans.

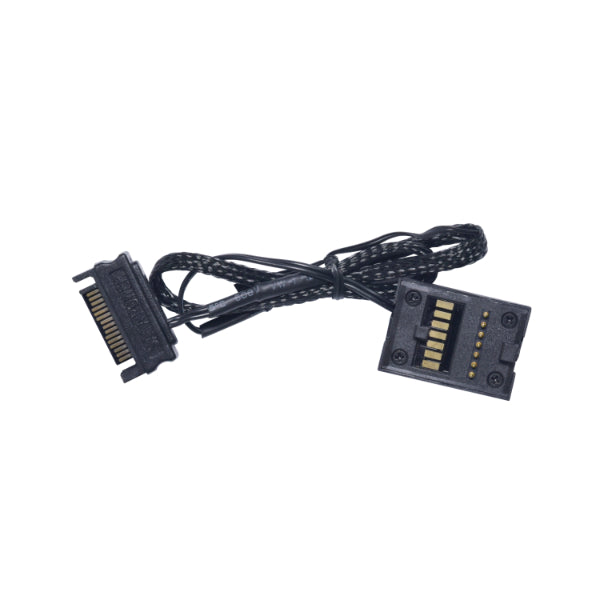

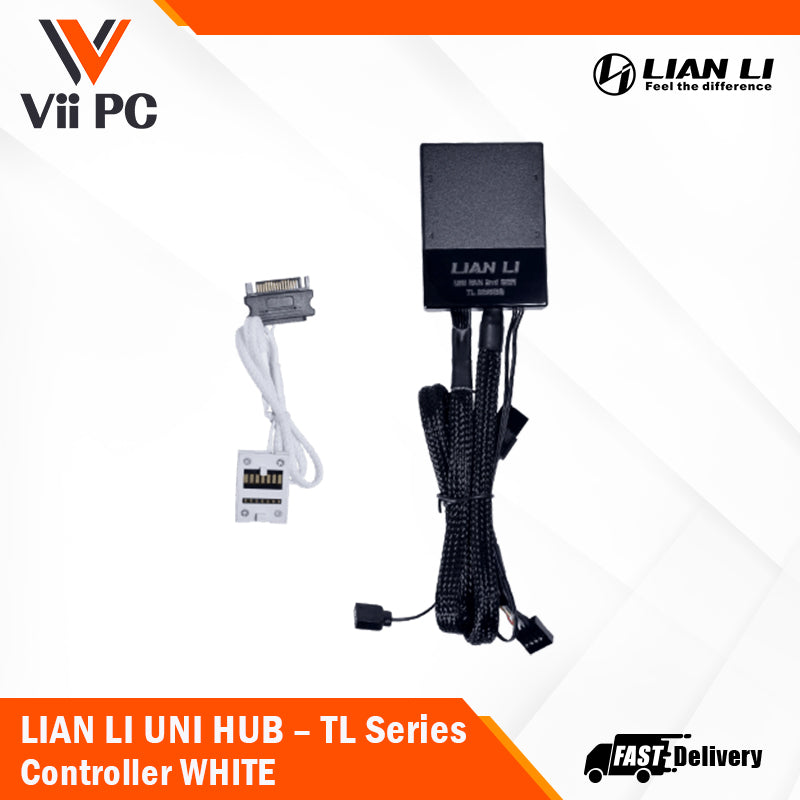

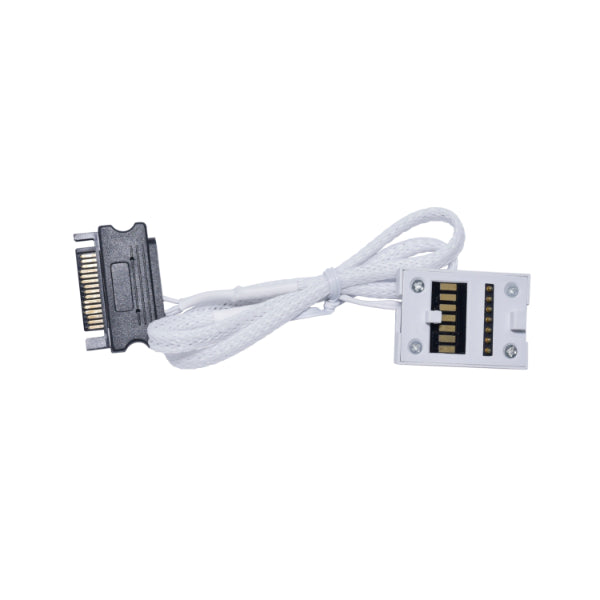

• Includes controller and a TL extra power adapt cable to connect to SATA.
• Complete software control with L-Connect 3.

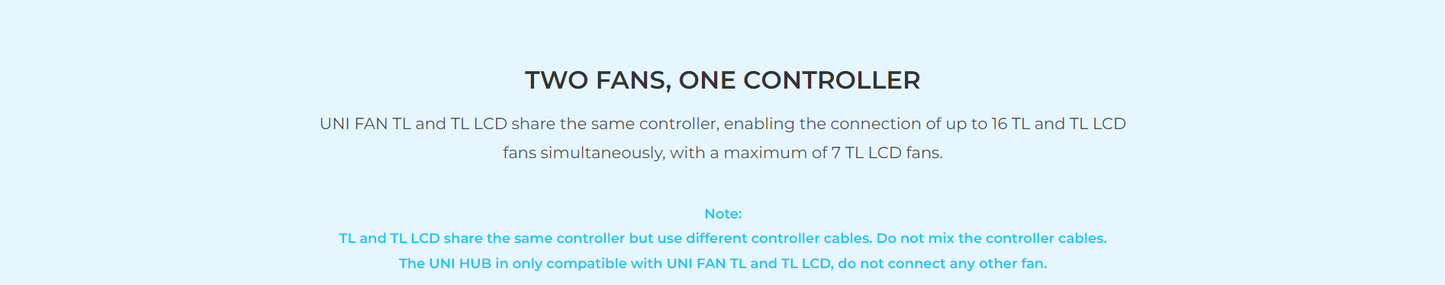

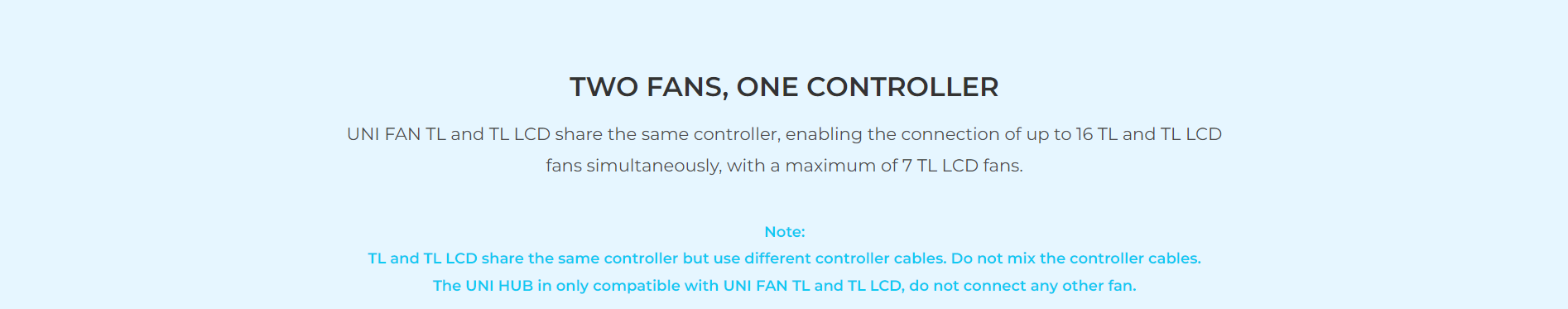

TWO FANS, ONE CONTROLLER

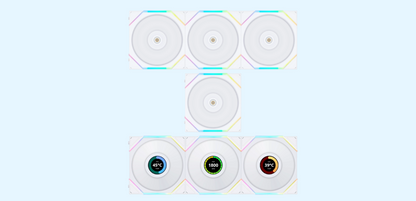

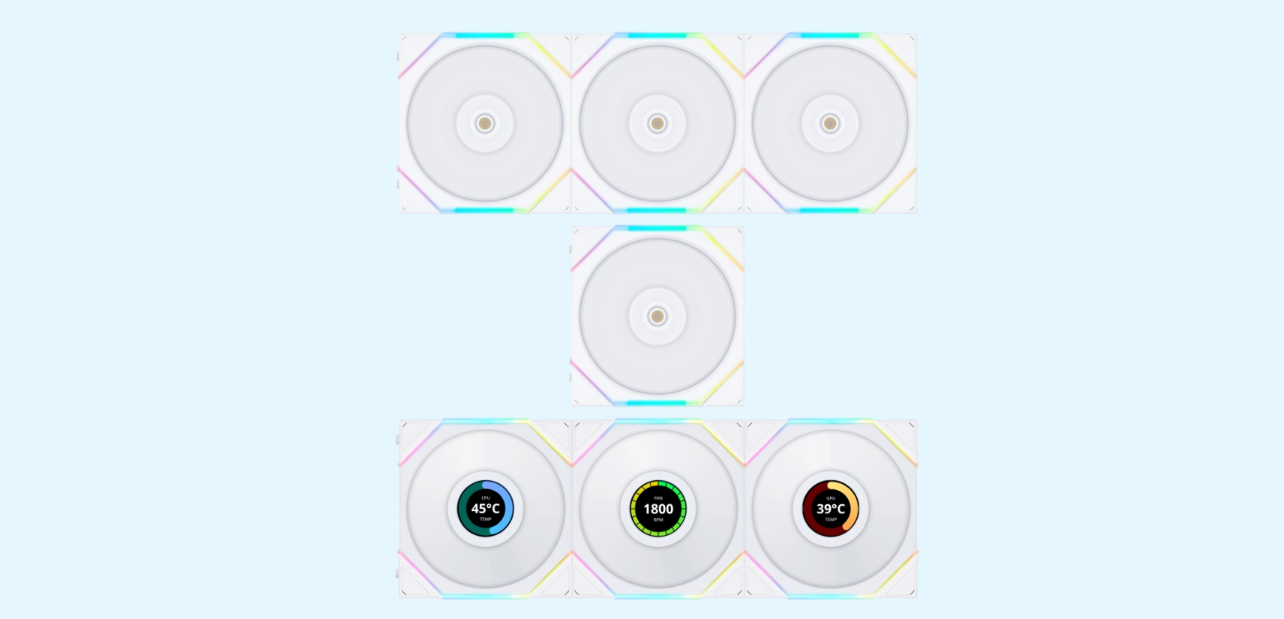

UNI FAN TL and TL LCD share the same controller, enabling the connection of up to 16 TL and TL LCD fans simultaneously, with a maximum of 7 TL LCD fans.
Note: TL and TL LCD share the same controller but use different controller cables. Do not mix the controller cables. The UNI HUB in only compatible with UNI FAN TL and TL LCD, do not connect any other fan.

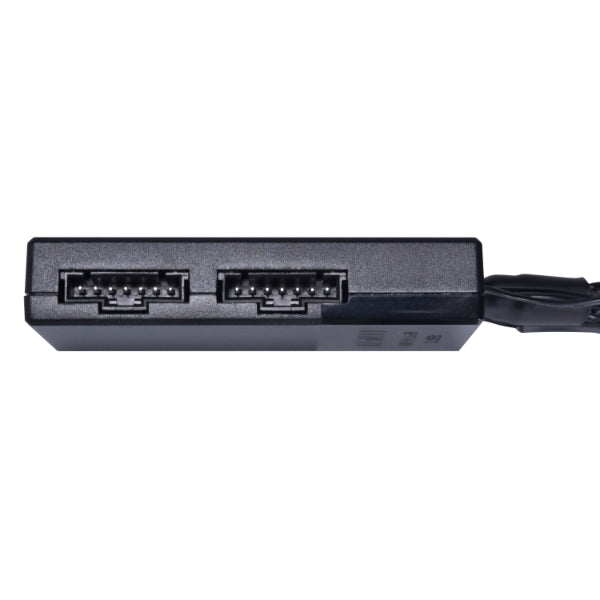

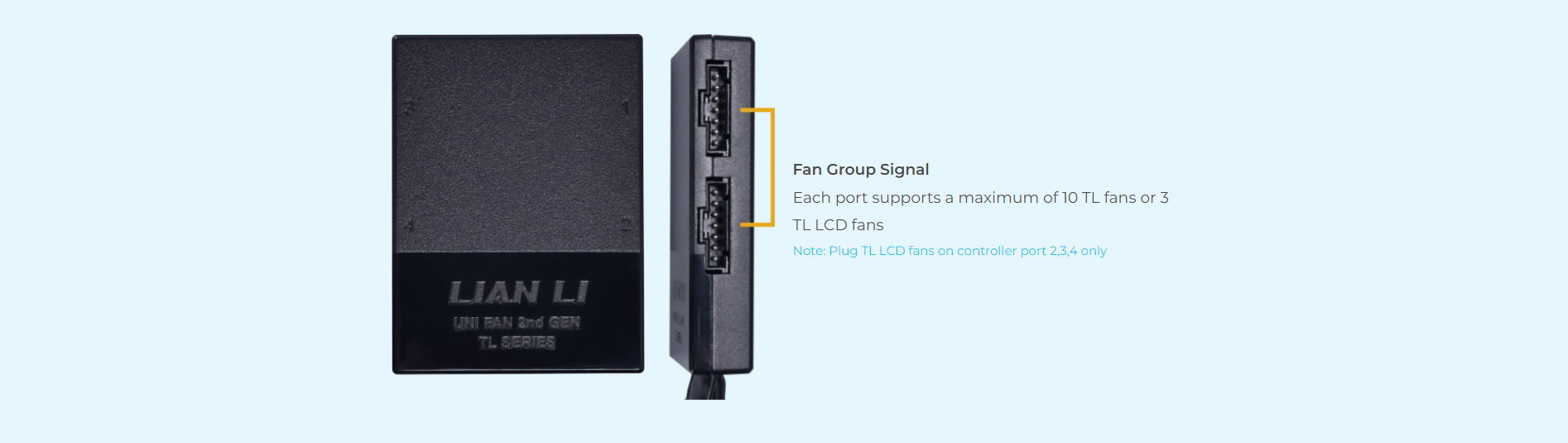

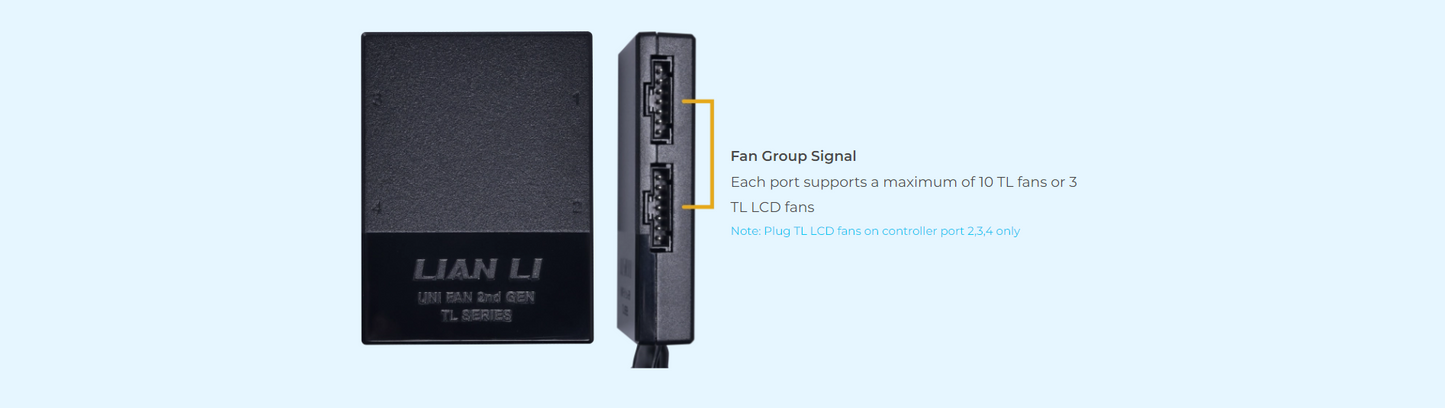

Fan Group Signal
Each port supports a maximum of 10 TL fans or 3 TL LCD fans
Note: Plug TL LCD fans on controller port 2,3,4 only

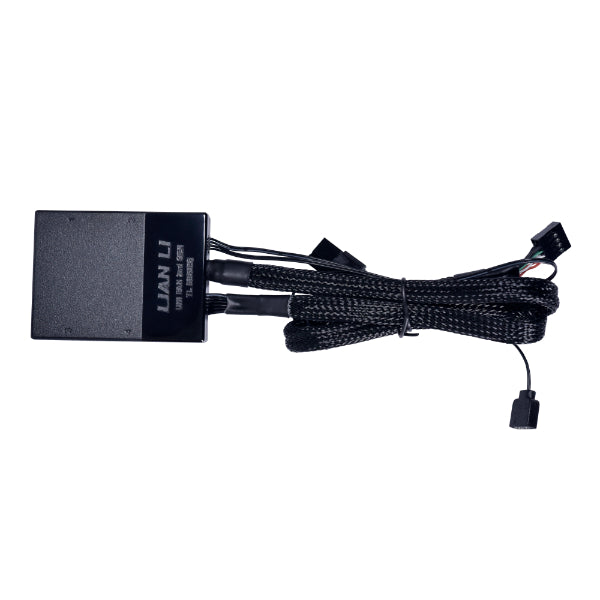

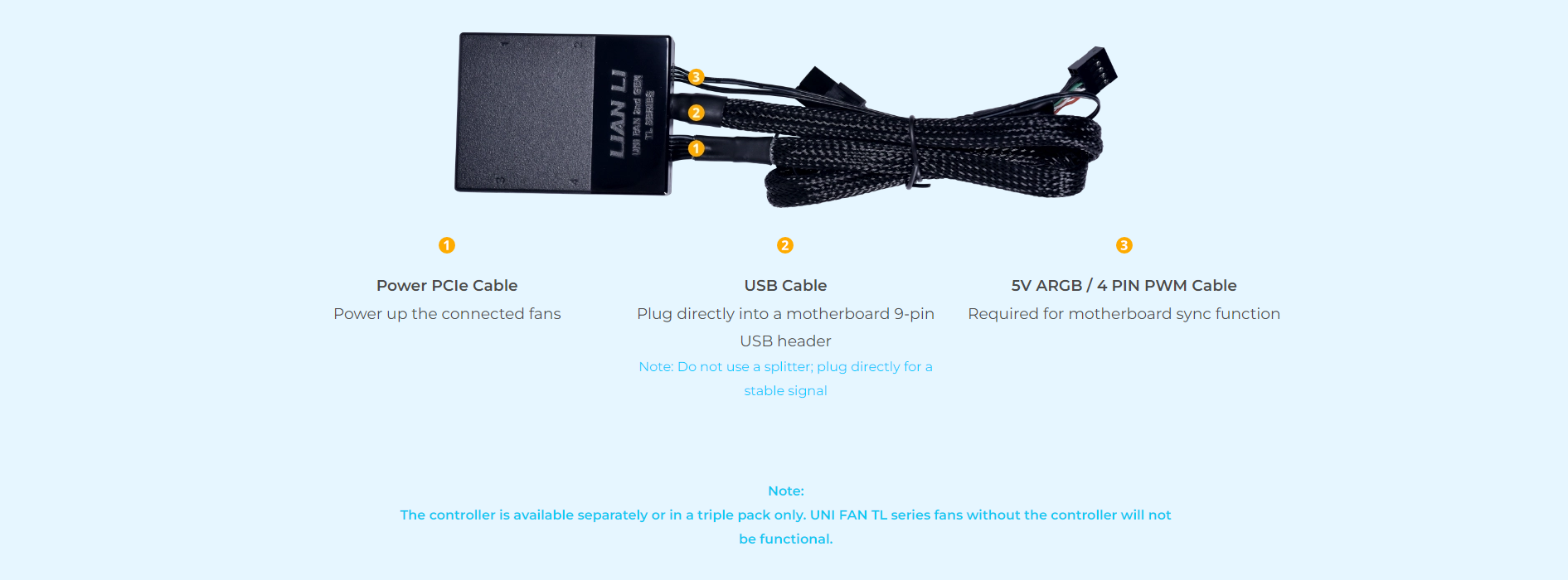

1. Power PCIe Cable
Power up the connected fans

2. USB Cable
Plug directly into a motherboard 9-pin USB header
Note: Do not use a splitter; plug directly for a stable signal

3. 5V ARGB / 4 PIN PWM Cable
Required for motherboard sync function
Note: The controller is available separately or in a triple pack only. UNI FAN TL series fans without the controller will not be functional.

SEAMLESS SOFTWARE
L-Connect 3 offers complete control over the UNI FAN TL series, including the lighting effects, fan speed, and LCD screen.

SPECIFICATIONS
