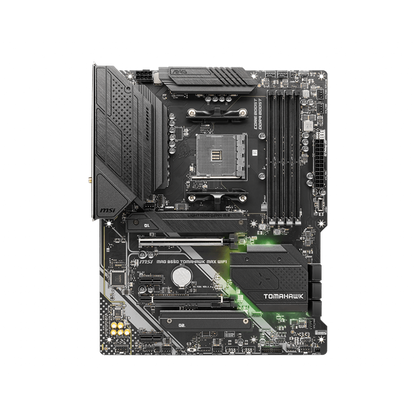

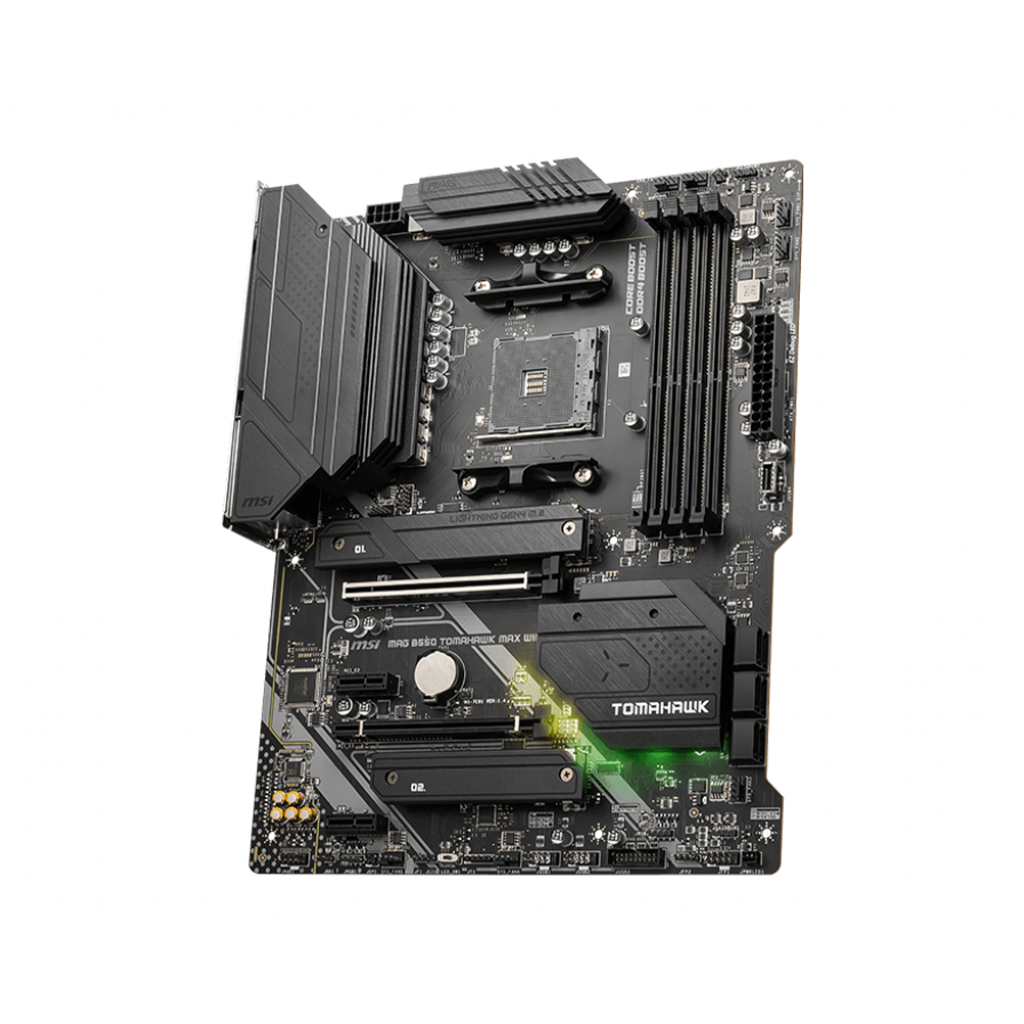

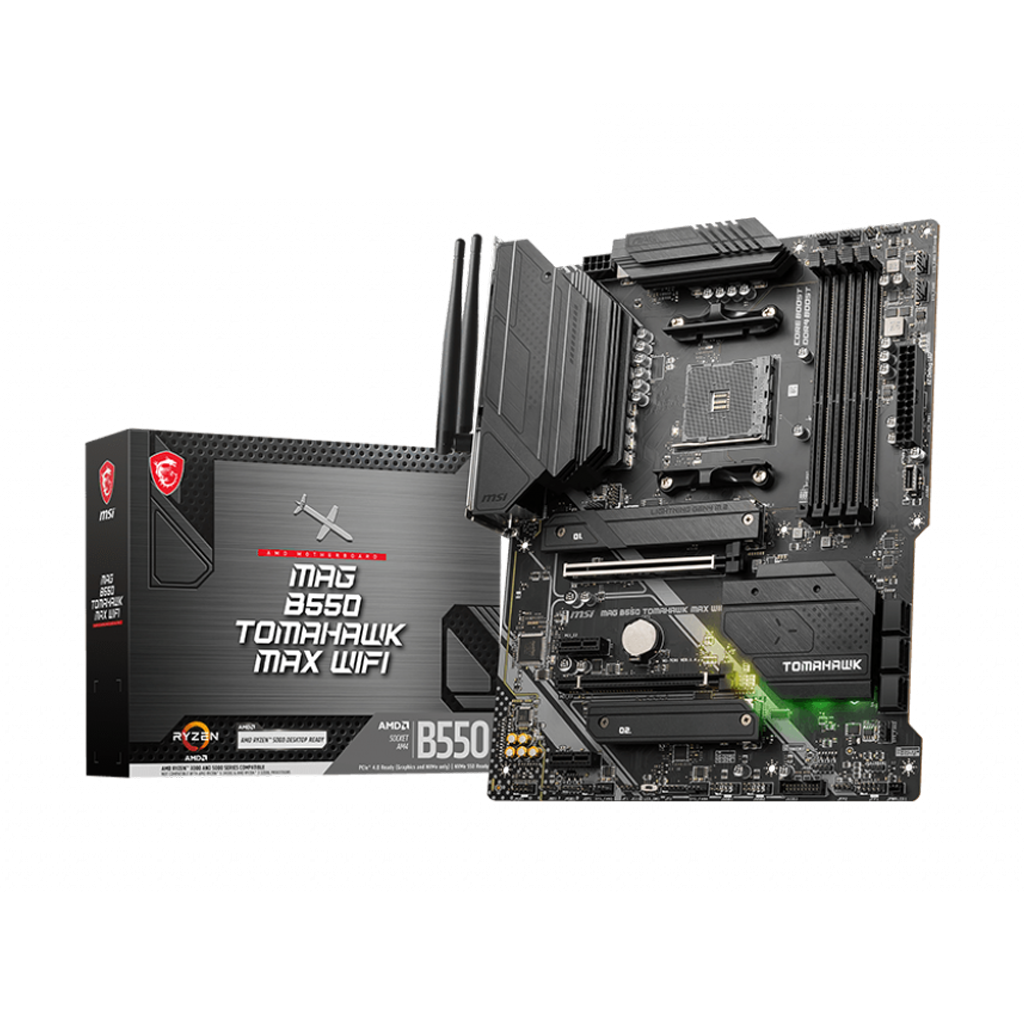

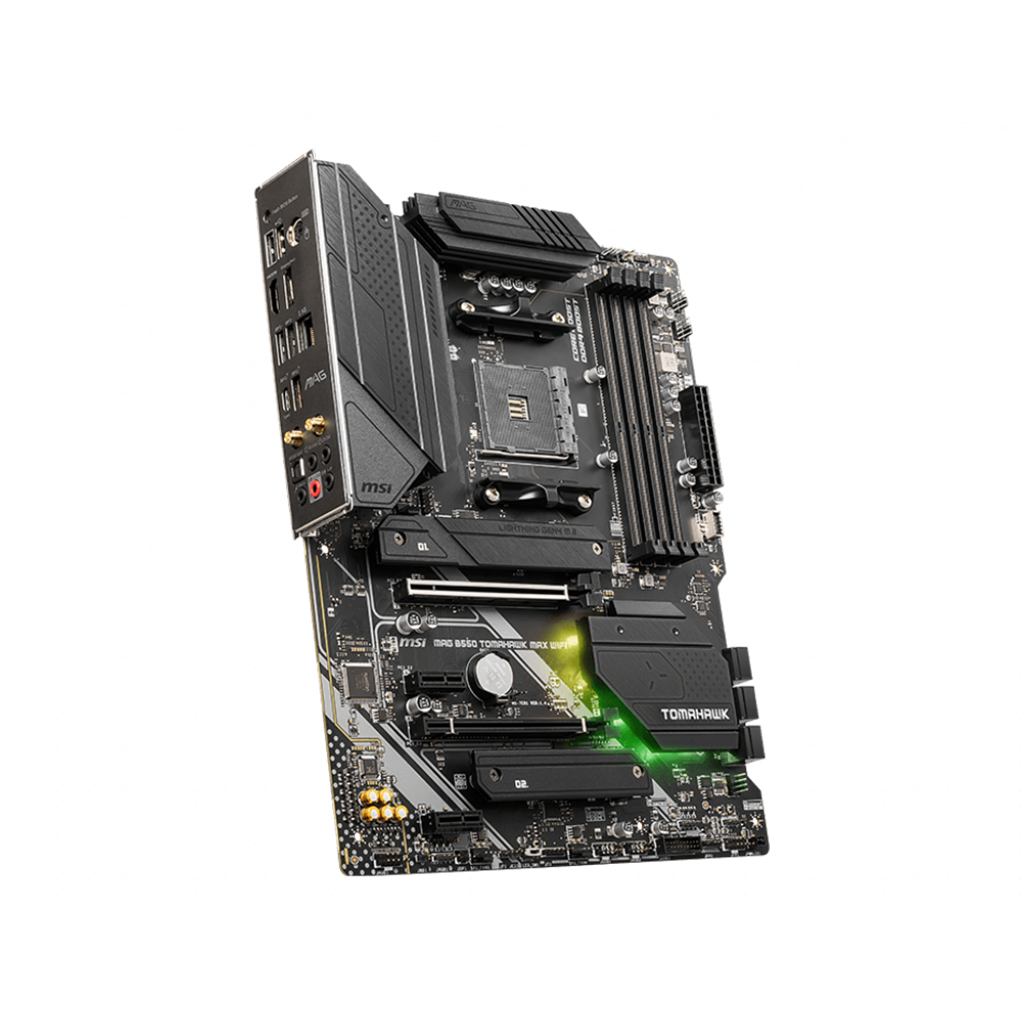

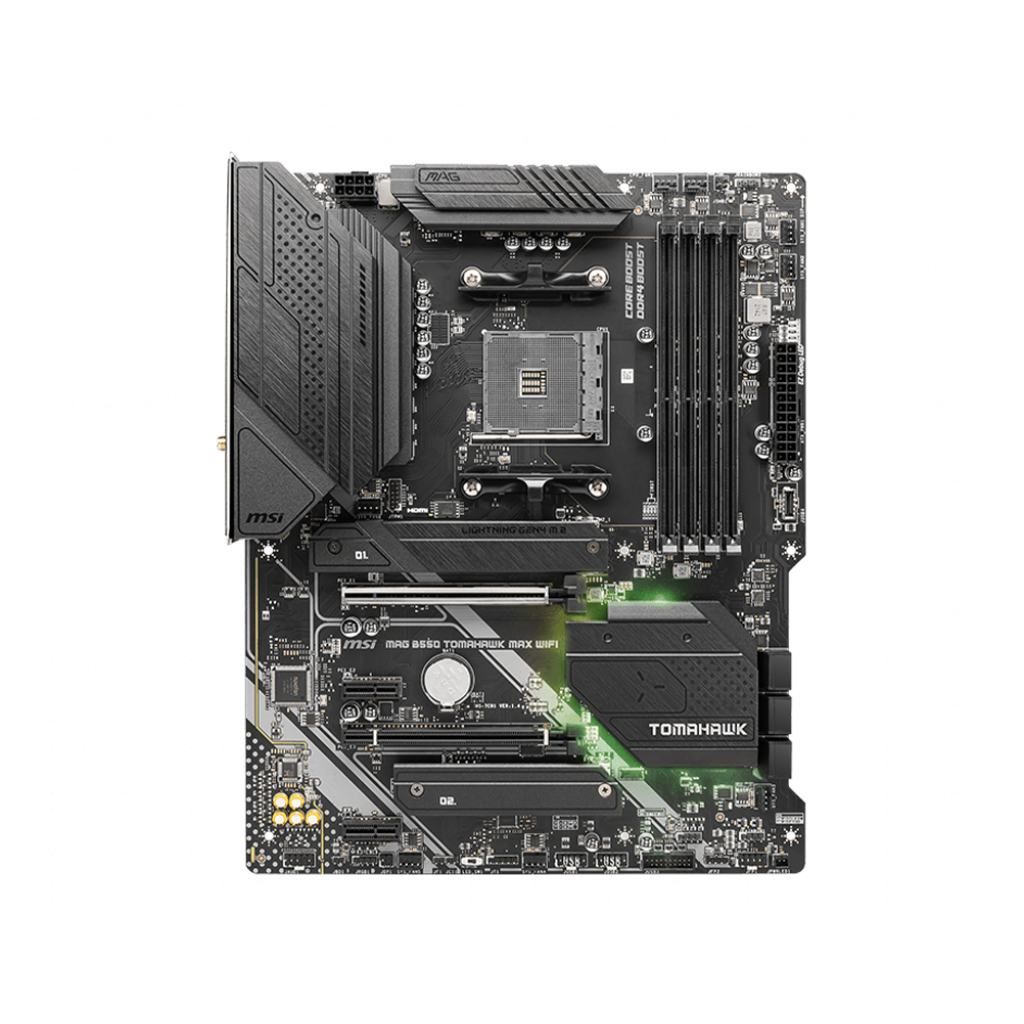

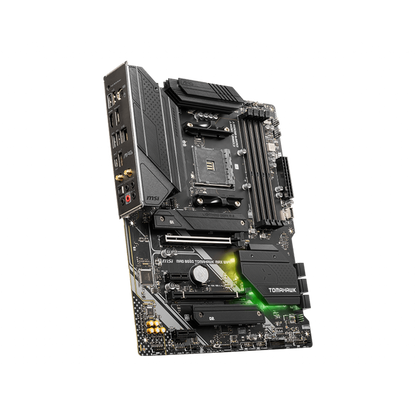

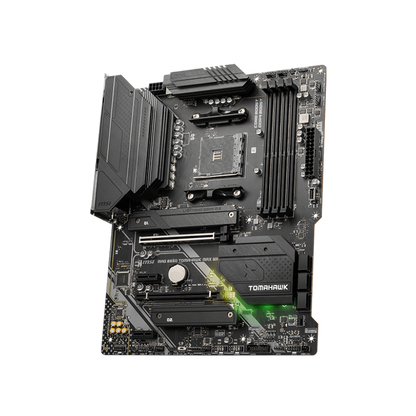

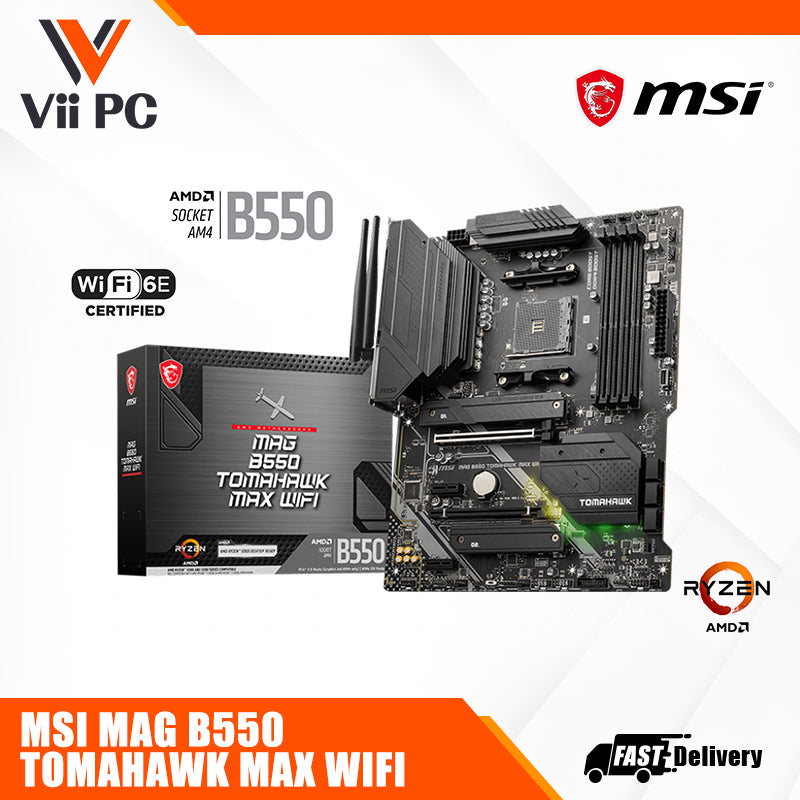

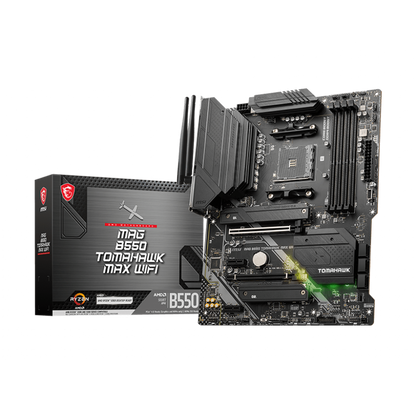

MSI MAG B550 TOMAHAWK MAX WIFI - AMD Socket AM4, 4 x DDR4, Wi-Fi 6E, ATX Motherboard

MSI MAG B550 TOMAHAWK MAX WIFI

Features:

• Extended Heatsink Design - MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

• Lightning Gen4 Solution - The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

• M.2 Shield FROZR - M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.

• Wi-Fi 6E - The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

• 2.5G Network Solution - Featuring premium 2.5G LAN to deliver better network experience.

• DDR4 Boost - Advanced technology to deliver pure data signals for the best gaming performance and stability.

• Core Boost - With premium layout and fully digital power design to support more cores and provide better performance.

• 2oz Thickened Copper PCB - An enhanced PCB design improves heat dissipation and performance reliability.



SPECIFICATION

OPERATING SYSTEM : Support for Windows® 10 64-bit
MANUFACTURER NUMBER : MAG B550 TOMAHAWK MAX WIFI

CPU COMPATIBLE :

• Supports AMD Ryzen™ 5000 and 3000 Series processors
• 5000G Series and 4000G Series processors
  (*CPU not compatible : AMD Ryzen™ 5 3400G &  AMD Ryzen™ 3 3200G processors)

CHIPSET : AMD® B550 Chipset
CPU SOCKET : AM4
FORM FACTOR : ATX

MEMORY : 4 x DDR4 memory slots, support up 128GB

• DDR4 - 1866/2133/2400/2667/2800/2933/3066/3200 Mhz by JEDEC
• DDR4 - 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/ 4133/4366/4400/4533/4600/4733/4800/4866/500/5100+ Mhz by A-XMP OC MODE
• 1DPC 1R max speed 5100 MHZ
• 1DPC 2R max speed 3866 MHZ
• 2DPC 1R max speed 4000 MHZ
• 2DPC 2R max speed 3600 MHZ
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

LAN : 1 x Realtek® RTL8125B 2.5Gbps LAN controller

WIRELESS LAN :

• AMD Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2,4GHz / 5GHz / 6GHz
• 1(160MHz) up to 2.4Gbps
• Supports 802.11 a/b/g/n/ac/ax

BLUETOOTH : Supports Bluetooth® 5.2 2, FIPS, FISMA

AUDIO :

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio
• Supports Optical S/PDIF output

MULTI-GPU : Supports AMD CrossFire™ Technology

STORAGE :

• 1 x M.2 Gen4 x4 64Gbps slot
• 1 x M.2 Gen3 x4 32Gbps slot
• 6 x SATA 6Gbps ports

ONBOARD GRAPHICS :

• 1 x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @ 60Hz
• Supports HDCP 1.4 & 2.3
• 1 x DisplayPort, supports a maximum resolution of 4096x2160 @ 60Hz
• Maximum shared memory of 16 GB

RAID :

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

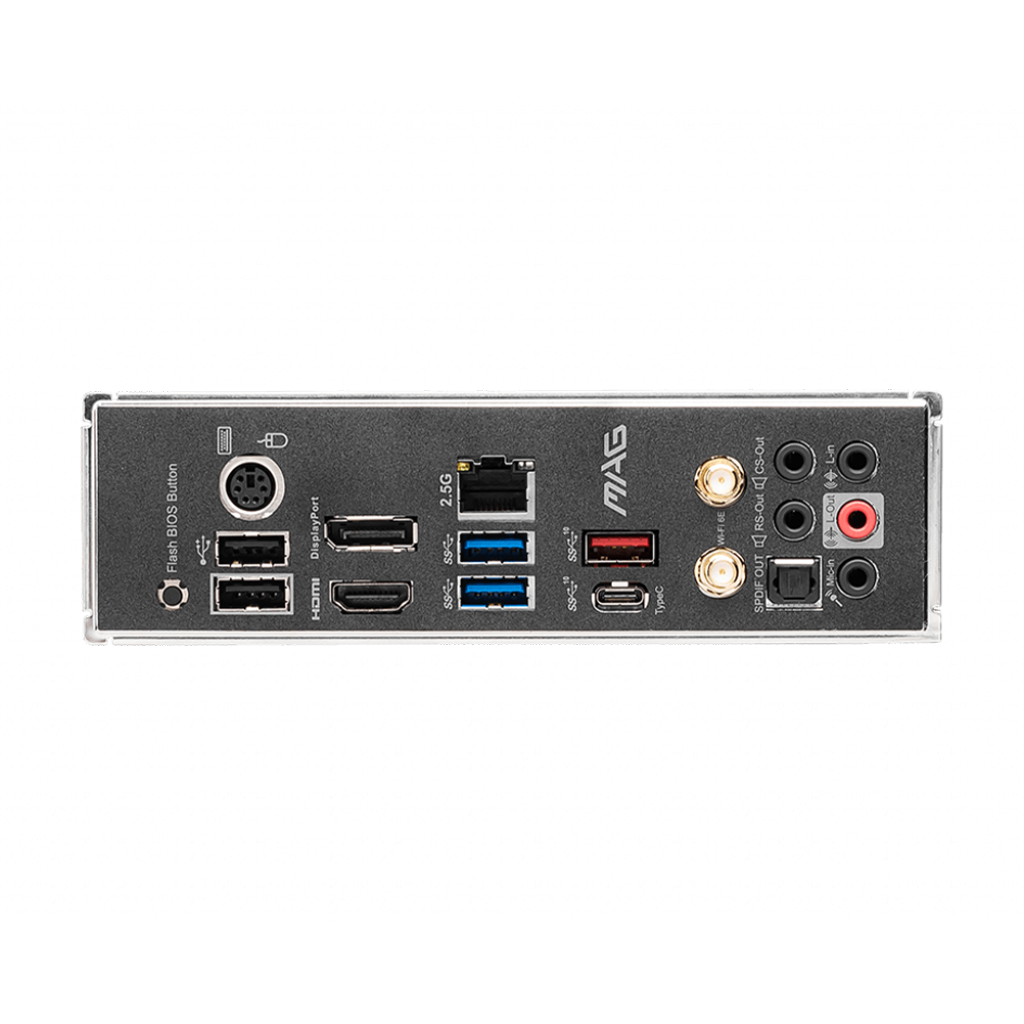

I/O (REAR) :

• Keyboard / Mouse
• DisplayPort 1.4
• 2.5G LAN Port
• USB 3.2 Gen 2 10Gbps Type-A
• Wi-Fi / Bluetooth Antenna
• Audio Connectors
• Flash BIOS Button
• USB 2.0 Port
• HDMI 2.1 Port
• USB 3.2 Gen 1 5Gbps Type-A
• USB 3.2 Gen 2 10Gbps Type-C
• Optical S/PDIF OUT

EXPANSION SLOTS :

• 1 x PCIe 4.0/ 3.0 x 16 slot (PCI_E1)
• 1 x PCIe 3.0 x 16 slot (PCI_E3), supports x4 speed
• 2 x PCIe 3.0 x1 slots

USB (FRONT) :

• 1 x (Gen1, Type C)
• 2 x (Gen1, Type A)
• 4 x (v2.0)

USB (REAR) :

• 1 x (Gen2, Type C)
• 1 x (Gen2, Type A)
• 2 x (Gen1, Type A)
• 2 x (v2.0)

INTERNAL CONNECTORS :

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x M.2 slots (M-Key)
• 1 x USB 3.2 Gen 1 5Gbps Type-C port
• 1 x USB 3.2 Gen 1 5Gbps connector
• 2 x USB 2.0 connectors
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump fan connectors
• 6 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 2 x 4-pin RGB LED connectors
• 2 x 3-pin RAINBOW LED connectors
• 1 x TDM module connector
• 1 x Clear CMOS jumper

DIMENSIONS : 12.0" x 9.60"

WARRANTY : 3 Years Local
