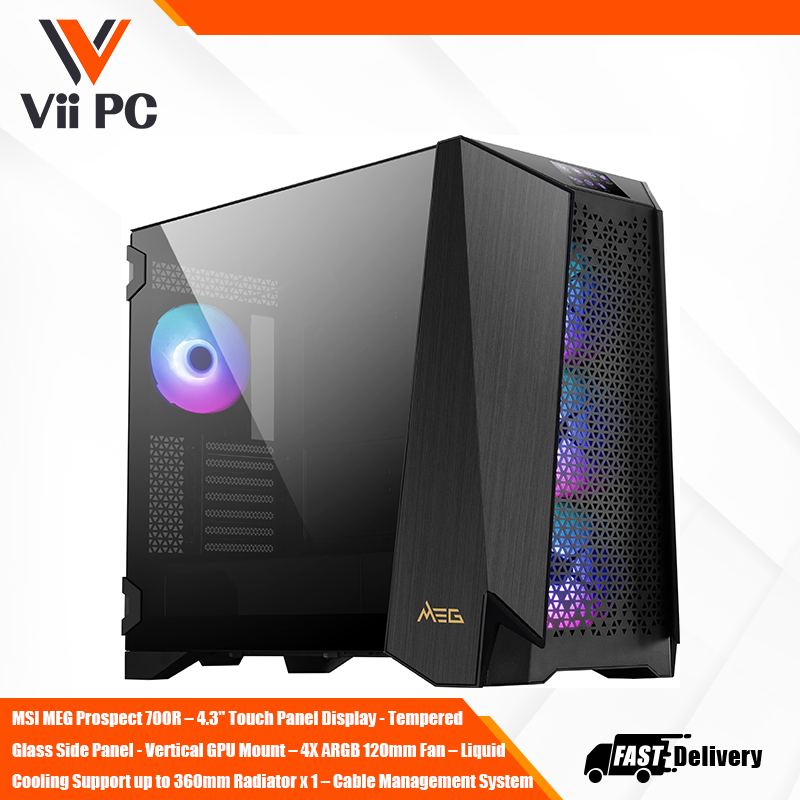

MSI MEG Prospect 700R E-ATX Mid-Tower Gaming Chasis - 4.3" Touch Panel Display, Tempered Glass Side Panel, Vertical GPU Mount, 4X ARGB 120mm Fan, Liquid Cooling Support up to 360mm Radiator x 1, Cable Management System

MEG PROSPECT 700R

Big House that Rooms All
The MEG PROSPECT 700 Series are well prepared to house all of your core computer components, including the latest NVIDIA^® GeForce RTX^® 40 Series graphics cards. The MEG PROSPECT 700 Series support vertical GPU mounting as well as cards up to 400mm long. Just know that whatever you choose to use, it's got you covered.

• Can install up to 10x system fans, providing ventilation and stable performance to the whole system.
• Built-in ARGB fans with striking lighting and vivid lighting effects.
• Designed in partner with EK, the MEG PROSPECT 700R can fit an EK distribution plate inside.
• The 4.3” touch panel can display a wide range of system information and graphics.
• Synergize with a compatible MSI motherboard through bridging with a USB 3.2 Gen 2x2 Type-C (20Gbps) port for high speed data transmission.
• Vertical GPU bracket as an accessory that allows you to mount your graphics card vertically.
• It can support up to two 360mm radiators and three 140mm fans.



Gaming Intelligence

Gaming Intelligence is dedicated to providing many unique and useful features to improve the gamer's experience.

TOUCH-SCREEN IPS PANEL
The fully customizable 4.3" touch-screen IPS panel provides Gaming Intelligence connectivity to system settings:

1. ARGB pre-set lighting & colour effects.
2. Sync Mode enables system-wide effects through MSI Center.
3. Screen Saver supports custom .bmp, .jpg & .mp4 files.
4. Fans can control fan RPM based on the port they're assigned to.
5. Weather displays local conditions.
6. Clock displays time in several time zones.
7. Temp displays sensor-detected system temperatures.



MODULAR DESIGN
The MEG PROSPECT 700R features a unique modular system for enhanced flexibility and cooling:

1. Front cable cover for clean builds.
2. E-ATX motherboard bracket (max. 310x304.8mm)*
3. Fan bracket for 3x 120mm fans, a 360mm radiator, or and EK distribution plate*
*Side panel fans can NOT be installed simultaneously with an E-ATX motherboard. EK distribution plate NOT included.

CABLE ROUTING & STORAGE
Dedicated cable routing channels simplify cable management with all major cables neatly bundled into 2 Keys lines that run past the cable grommets.

The back of the motherboard tray includes 2x 2.5" SSD bracket, and a removeable 2x 2.5"/ 3.5" HDD cage.

USB 3.2 GEN 2X2 TYPE-C
The top I/O panels features a USB 3.2 Gen 2x2 Type-C port for 20Gbps data bridging to compatible motherboards.

1. Power Button
2. Reset Button
3. USB 3.2 Gen 2x2 Type-C (20Gbps)
4. Mic-in / Audio-out
5. 2x USB 3.2 Gen 1 Type-A (5Gbps)

UP TO 10 FANS & EK READY
The chassis is well equipped to provide the high-volume airflow with 3x 140mm ARGB fans pre-installed in the front mesh panel, and 1x 140mm ARGB fan pre-installed in the rear.

The chassis can house up to 10x 120mm(or 7x 140mm & 3x 120mm) case fans for maximized cooling. Liquid cooling options include space for radiators up to 360mm in the front, side or top panels* and up to 140mm in the rear. Designed in collaboration with EK, the side panel can support an EK distribution plate for a custom-loop liquid cooling.

*A side panel radiator can NOT be installed simultaneously with a front panel radiator.

HIGH-VOLUME MID-TOWER

Thanks to its modular design, the mid-tower case can support a remarkable array of large components:

• E-ATX motherboard
• CPU coolers up to 185mm
• GPUs up to 400mm*
• ATX PSU up to 220mm


EASY-ACCESS DOORS
Both the left and right side panels feature a swinging-door design that latch seamlessly around the front panel, and can be removed tool-free.
The left panel employs 3mm tempered glass for hardware showcasing. The right panel includes a side air inlet and access to the back of the motherboard tray.

QUAD DUST FILTERS
Top, front, and side magnetic-frame mesh filters prevent dust from entering the system, and can be easily removed* for cleaning. The bottom panel also includes a filter for the PSU. The top & front filters can be accessed by removing the tool free exterior panels.

PRODUCT SPECIFICATIONS

Product Name: MEG PROSPECT 700R
Case Form Factor: Mid-Tower
Motherboard Form Factor Support: EATX (up to 310mmx304.8mm) / ATX / M-ATX / ITX

I/O Ports:
• 2x USB 3.2 Gen 1 Type-A
• 1x USB 3.2 Gen 2x2 Type-C
• 1x HD Audio
• 1x Mic

Drive Mount Support:
• 2x 2.5”
• 2x 2.5"/3.5”

Expansion Slots: 7
Maximum GPU Length: 400mm / 15.75 inches
Maximum CPU Cooler Height: 185mm / 7.28 inches
Power Supply Support: Standard ATX, max up to 220mm (without 3.5'' HDD tray installed)

Fan Size Support:
• Front: Up to 3 x 120 mm / 3 x 140 mm
• Top: Up to 3 x 120 mm / 3 x 140 mm
• Rear: Up to 1 x 120 mm / 1x 140 mm
• Side: Up to 3 x 120 mm

Pre-installed Fan Size:
• Front: 3x 140mm ARGB Fan
• Rear: 1x 140mm ARGB Fan

Pre-installed Fan Type: ARGB

Radiator Size Support:
• Front: 120 / 140 / 240 / 280 / 360 mm
• Top: 120 / 140 / 240 / 280 / 360 mm
• Rear: 120 / 140 mm
• Side: 120 / 240 / 360 mm

Dimensions (DxWxH): 585x 257 x 537 mm / 23.03 x 10.12 x 21.14 inches
Net Weight: 15.95 kg / 35.16 lbs
Gross Weight: 21.55 kg / 47.51 lbs

Note:
• Material: Left Side: Tempered Glass/ Right Side - Metal
• Vertical GPU Mount : Yes
• Touch Panel: Yes
