MSI MEG X870E GODLIKE X EDITION SUPPORT AM5 CPU DDR5 WIFI 7 GAMING MOTHERBOARD

MSI MEG X870E GODLIKE X EDITION SUPPORT AM5 CPU DDR5 WIFI 7 GAMING MOTHERBOARD

$2,099.00 SGD
$2,099.00 SGD
Sale Sold out

Highlights

MEG X870E GODLIKE X EDITION

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 9200+MT/s (OC)

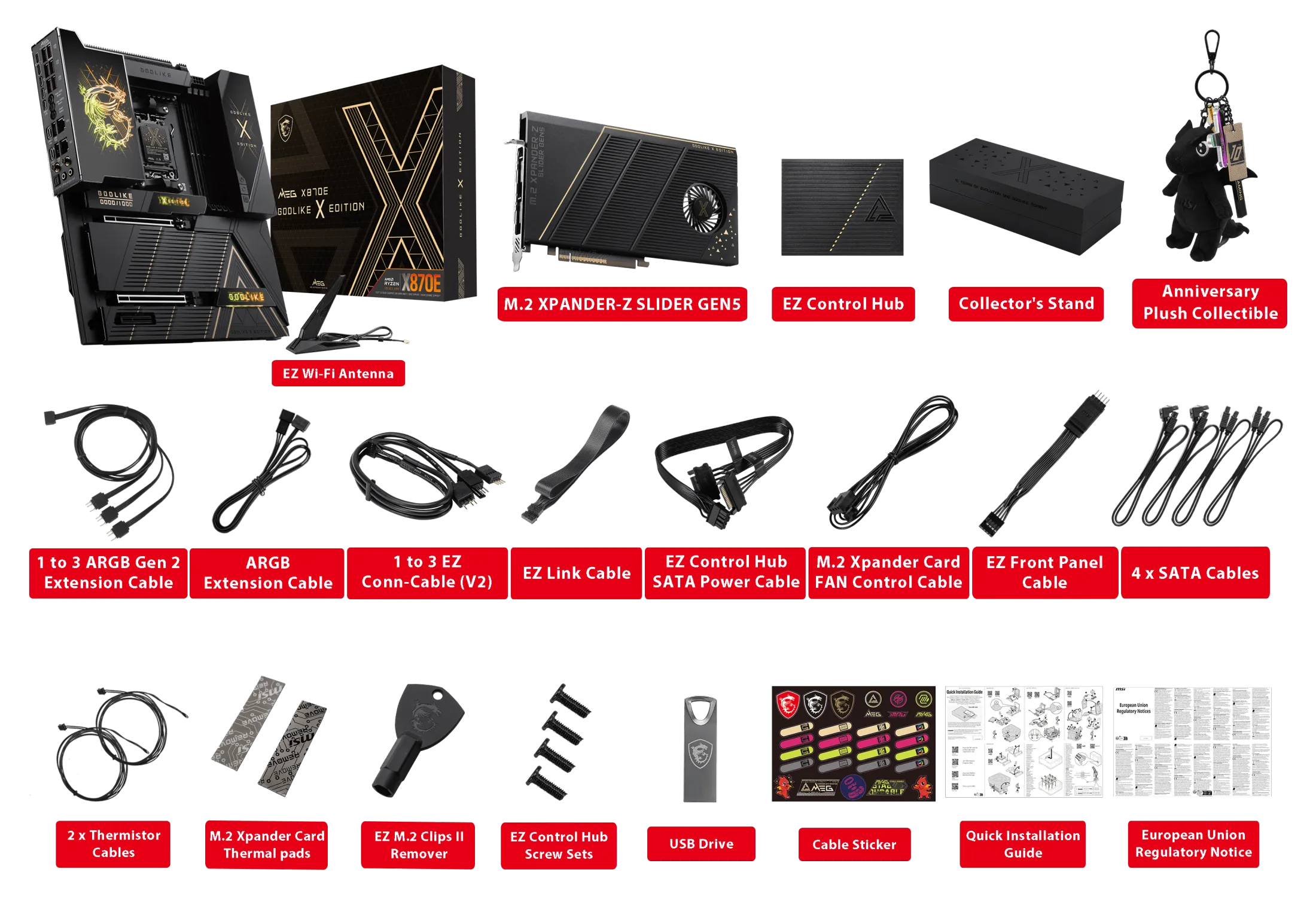

  • Anniversary Limited Edition: A highly exclusive release limited to just 1,000 units, each featuring a numbered Golden Nameplate, a premium Collector’s Stand, and the Black Lucky plush.
  • Dynamic Dashboard III: A 3.99-inch LCD for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experience.
  • M.2 XPANDER-Z SLIDER GEN5: The one-slot-thick M.2 expansion card features dual high-speed Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades effortless.
  • Ultra Performance: 24+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level material.
  • Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
  • EZ DIY: EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
  • Ultra Connect: 10G LAN + 5G LAN, Full-speed Wi-Fi 7 Solution, USB4 and 64MB BIOS ROM - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
  • Lightning Fast Game Experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 20G with 60W USB Power Delivery.

Description



CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5



Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support DDR5 9200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen™ 9000 Series Processors max. overclocking frequency:

• 1DPC 1R Max speed up to 8400+ MT/s

• 1DPC 2R Max speed up to 6400+ MT/s

• 2DPC 1R Max speed up to 6400+ MT/s

• 2DPC 2R Max speed up to 6400+ MT/s



Supports AMD POR Speed and JEDEC Speed

Supports Memory Overclocking and AMD EXPOTM

Supports Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM, Clock Driver bypass mode only*



* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.



Onboard Graphics

2x Type-C DisplayPort

USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz*

* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.



Slot

2x PCI-E x16 slot

1x PCI-E x4 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)



PCI_E1 & PCI_E2 slots

• Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)

PCI_E3 slot

• Supports up to PCIe 4.0 x4



* PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.

Please refer to the PCIe configuration table in the manual for more details.



Audio

Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA

7.1-Channel USB High-Performance Audio

Supports S/PDIF output

Supports up to 32-Bit/384 kHz playback on front panel



Storage

5x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices

M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices

M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices



M.2_1:

• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M.2_2:

• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.

M2_4:

PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.



* Supports onboard 5x M.2 slots and additional 2x M.2 slots via M.2 card.

** Please refer to the manual for M.2 SSD heatsink restrictions.



RAID

Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices



*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.

**RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.



WIRELESS LAN & BLUETOOTH

Wi-Fi 7 Solution

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be



Supports Bluetooth® 5.4**, MLO, 4KQAM



* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.

** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
