NZXT F140 RGB Core (Black/White) - 140mm Hub-Mounted RGB Fan, 8 individually addressable RGB LEDs, PWM Control, Customize with CAM, Silent and Stable
NZXT F140 RGB Core (Black/White) - 140mm Hub-Mounted RGB Fan, 8 individually addressable RGB LEDs, PWM Control, Customize with CAM, Silent and Stable
Couldn't load pickup availability

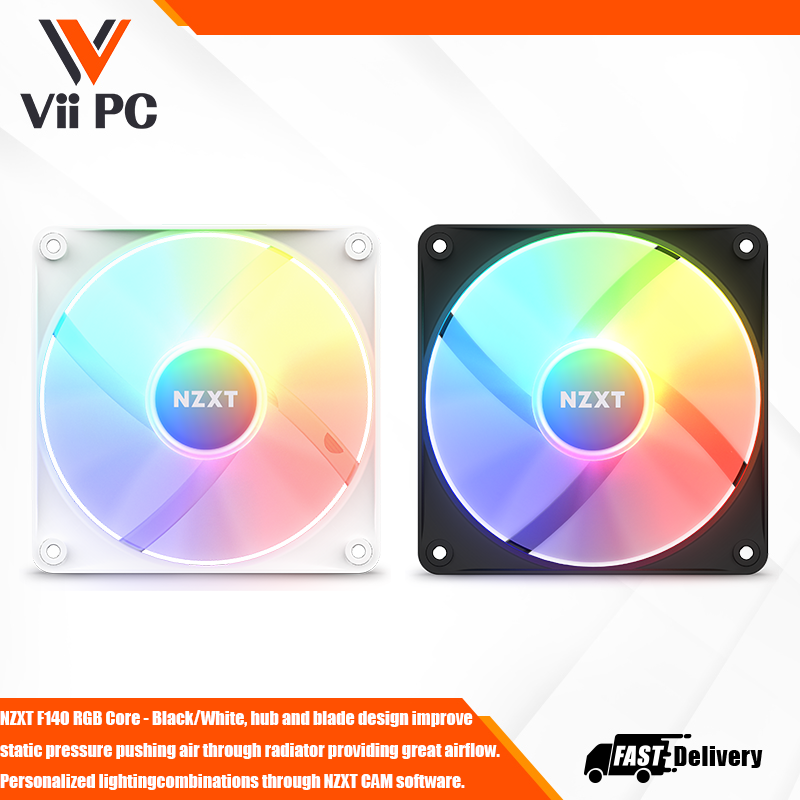

NZXT F140 RGB Core
The F Series RGB Core Fans offer brilliant lighting with eight individually addressable RGB LEDs and premium cooling with high static pressure.
- Eight Individually addressable LEDs mounted on the fan hub are perfectly diffused through the semi-translucent blades for a sublime lighting effect.
- A refined hub and blade design offer enhanced static pressure by pushing air through your radiator while providing great airflow. This allows for superior heat dissipation when paired with a liquid cooler or heatsink and used as intake, or exhaust.
- Personalized lighting combinations through NZXT CAM software.
- Seamlessly sync it with all your compatible NZXT lighting accessories.
- The PWM-controlled fan allows speed adjustment, offering the best cooling possible without compromising noise level.
- Fluid Dynamic Bearings deliver high rotational stability while reducing bearing noise and increasing fan lifespan up to 60,000 hours.
- Anti-vibration rubber corners dampen vibration noise at any speed.
Sublime RGB Lighting
8 individually addressable RGB LEDs mounted on fan hub are diffused through the semi-translucent blades.
Optimized Design
Fan hub and blades deliver high airflow and static pressure for both intake or exhaust locations.
Fluid Dynamic Bearing
Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan.
PWM Control
Adjusts fan speed for optimal cooling only when needed for a quiet, efficient experience.
Silent and Stable
Anti-vibration rubber corners and the sturdy frame provide quiet and stable operation.
Customize with CAM
Control fan curves and speeds, personalize RGB lighting effects, and sync with other NZXT lighting products.
Inside the Box
- 140mm RGB Fan
- Mounting Screws x4
Technical Spec
| COLOR | Black / White |
| MODEL NUMBER | RF-C14SF-B1 (Black) / RF-C14SF-W1 (White) |
| KEY SPECS | |
| Material | Plastic, rubber, PCB |
| Fan Rated Voltage | 12 V DC, 0.24 A, 2.88 W |
| LED Quantity | 8 LEDs |
| Bearing | Fluid Dynamic Bearing (FDB) |
| Fan Connector | 4-pin PWM |
| DIMENSIONS | |
| Height | 140mm |
| Width | 140mm |
| Depth | 26mm |
| COOLING | |
| Speed | 500-1,500 ± 150 RPM |
| Airflow | 90.79 CFM |
| Static Pressure | 3.22 mm H₂O |
| Noise | 34.48 dBA |
| Power Consumption | 12 V DC, 0.24 A, 2.88 W |
| Connector | 4-pin PWM |
| Output LED | 8 LEDs |
| FAN LIFE | |
| Hours | 60,000 |
| Years | 6 |
| SYSTEM REQUIREMENTS | |
| System Requirement | PC with available NZXT RGB lighting connector and Windows 10/11 operating system. Controller sold separately. Some CAM features require Internet access, a valid email address, and acceptance of our current Terms of Service |
| GENERAL | |
| Warranty | 2 years |
