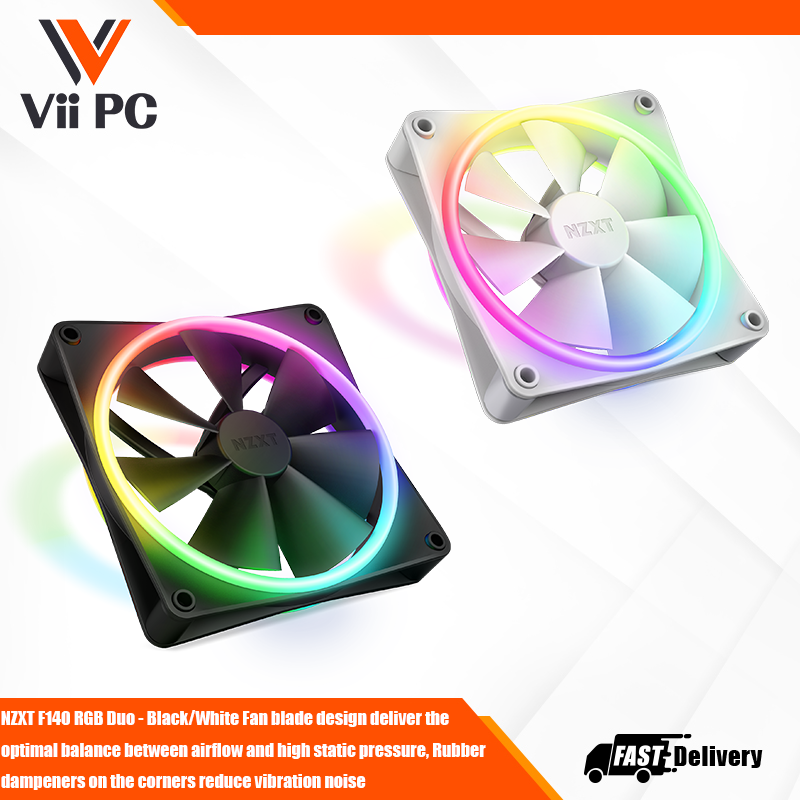

NZXT F140 RGB Duo
The RGB Duo Fans strike a balance between bright style and performance with twenty individually addressable RGBs and high static pressure.
- Enjoy vibrant RGB lighting from all angles with 20 individually addressable LEDs
- Fan blade design deliver the optimal balance between airflow and high static pressure - ideal for use anywhere in a PC
- Fluid Dynamic Bearing (FDB) ensures smooth and quiet operation with a long lifespan
- Rubber dampeners on the corners reduce vibration noise
- PWM fan control means fans cool quickly when needed, but stay quiet at lower loads for maximum efficiency
- Mix and match with NZXT F120/F140 RGB fans
- Personalize RGB lighting effects and configure fan speeds with NZXT CAM
Dual-sided Lighting
20 individually addressable RGB LEDs offer colorful customization and the dual-sided lighting makes any color scheme visible from every angle
Quiet and Cool
PWM fan control means fans cool quickly when needed, but stay quiet at lower loads for maximum efficiency
Light Your Way
Personalize RGB lighting effects and configure fan speeds with NZXT CAM.
Rubber Dampener
Rubber dampeners on the corners of the fans reduce vibration noise and keep things running cool and quiet
RGB Controller
The NZXT RGB Controller lets you customize lighting through NZXT CAM and pick from preset profiles or set off on your on to make colorful combinations that suit your style
Inside the Box
- 140mm RGB Duo Fan
- Installation Accessories
Technical Spec
| COLOR | Black / White |
| MODEL NUMBER | RF-D14DF-B1 (Black) / RF-D14DF-W1 (White) |
| KEY SPECS | |
| Material | Plastic, rubber, PCB |
| Fan Rated Voltage | 12V DC, 0.26A, 3.12W |
| LED Quantity | 20 |
| Bearing | Fluid Dynamic Bearing (FDB) |
| Fan Connector | 4-pin PWM |
| DIMENSIONS | |
| Height | 140mm |
| Width | 140mm |
| Depth | 25mm |
| COOLING | |
| Speed | 500 - 1,800 ± 300RPM |
| Airflow | 85.00 CFM |
| Static Pressure | 2.80 mm-H₂O |
| Noise | 38.0 dBA |
| FAN LIFE | |
| Hours | 60,000 |
| Years | 6 |
| RGB CONTROLLER | |
| Dimensions | 63.2 x 53.2 x 12.8mm |
| Weight | 52.8g |
| Material(s) | Plastic, PCB, Magnets |
| Mounting | 2x 3M Dual Lock |
| Connections | 1 x USB 2.0 Header, 1 x SATA |
| Input Connector | 12V DC / 2.6A |
| Output Channel Voltage | 5V DC |
| RGB Lighting Channels | 3 |
| Lighting channels support | Up to 40 LEDs per channel and up to 120 LEDs combined total for the total 3 channels |
| SYSTEM REQUIREMENTS | |
| System Requirement | PC with available NZXT RGB lighting connector and Windows 11/10 operating system. |
| Internal Connector | Requires a USB 2.0 internal connector |
| GENERAL | |
| Warranty | 2 years |
