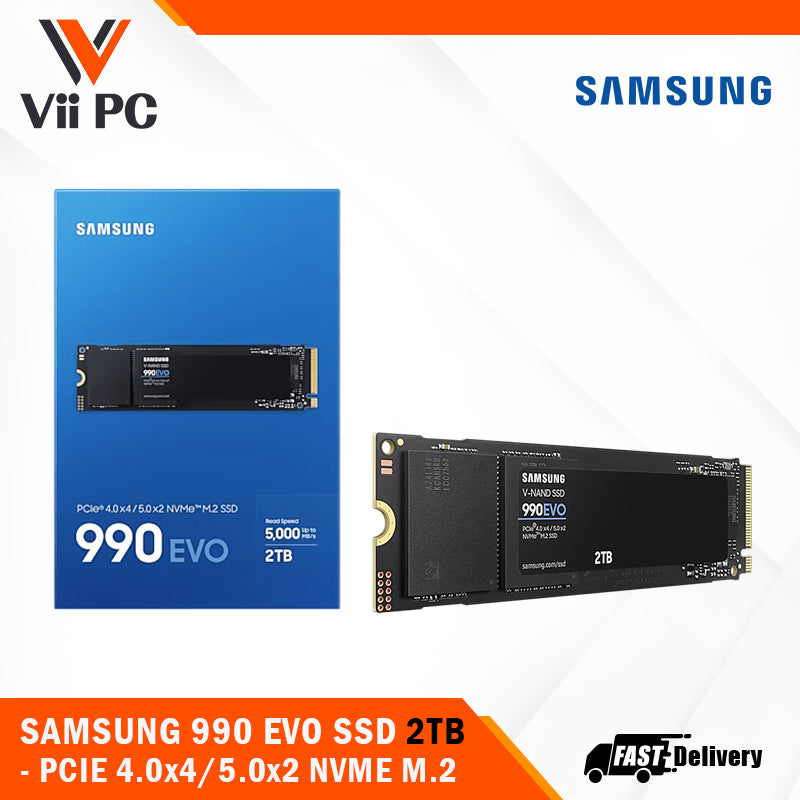

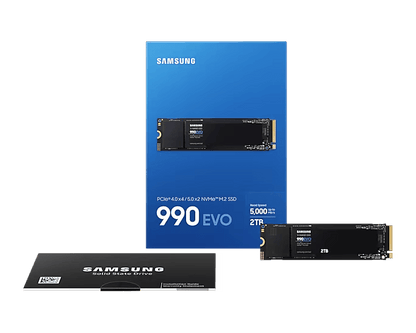

SAMSUNG 990 EVO NVMe 2.0 M.2 2280 SSD (1TB / 2TB) - PCIe 4.0x4/PCIe 5.0x2/Up to 5,000 MB/s Read/Up to 4,200 MB/s Write/5 Yrs Wty

$178.00 SGD

Sale Sold out

Quantity

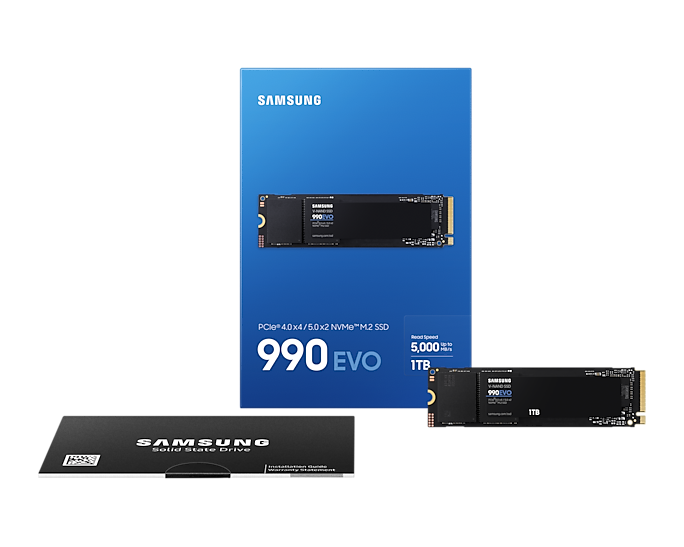

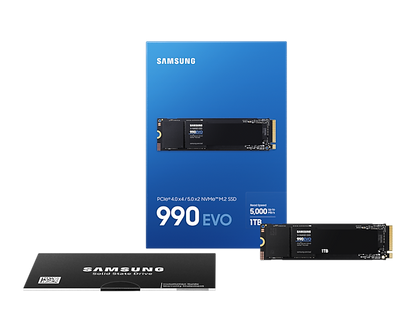

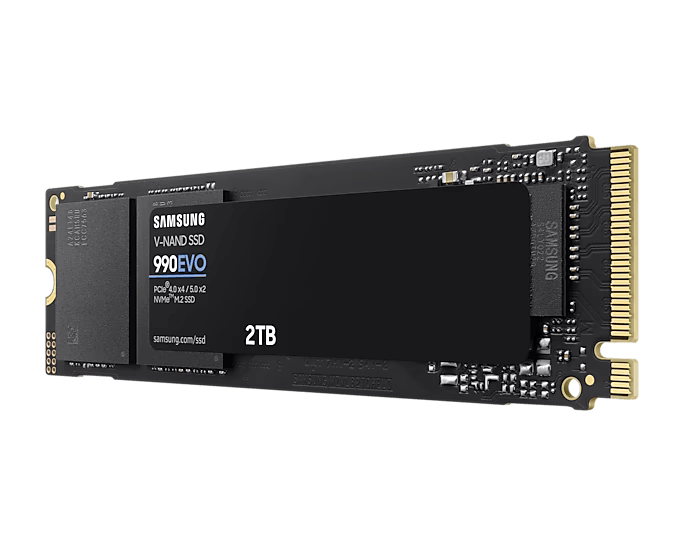

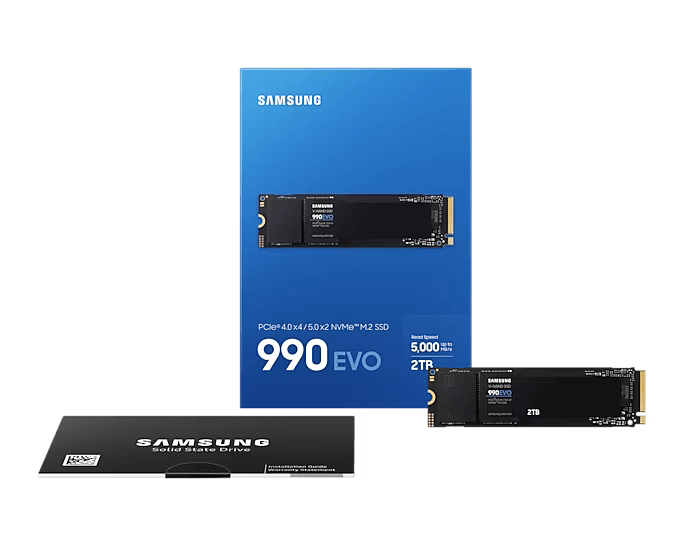

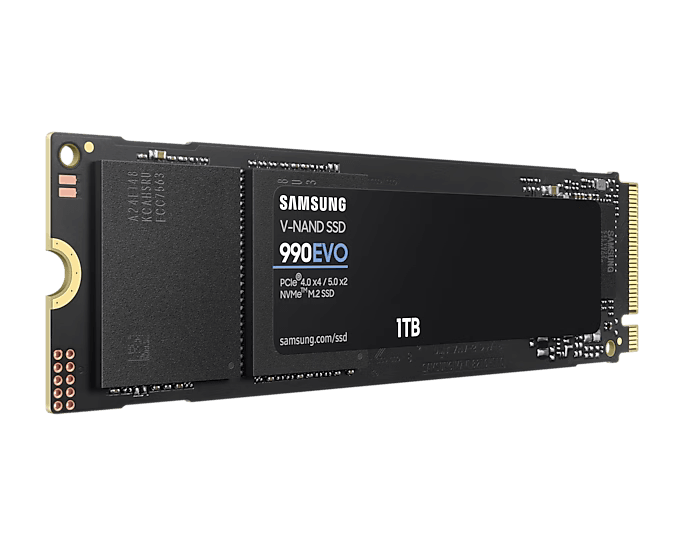

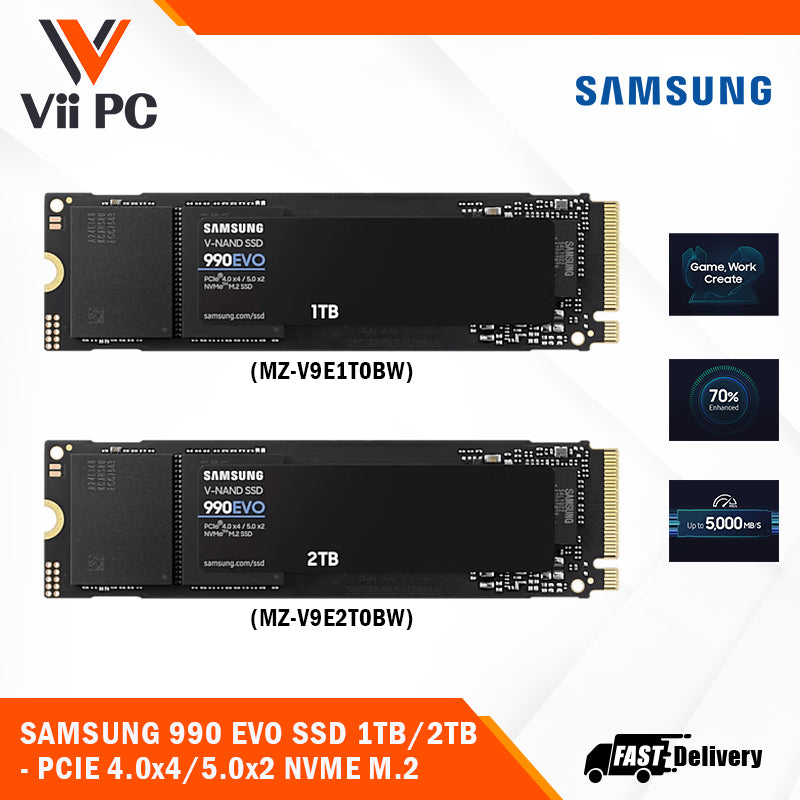

SAMSUNG 990 EVO NVMe 2.0 M.2 2280 SSD (1TB/2TB)

PCIe 4.0x4/PCIe 5.0x2/Up to 5,000 MB/s Read/ Up to 4,200 MB/s Write/5 Yrs Limited Warranty/ 1200 TBW Limited Warranty

APPLICATION - Client PCs
FORM FACTORS - M.2 (2280)
INTERFACE - PCIe 4.0 x4 / 5.0 x2 NVMe 2.0
PERFORMANCE - Up to 5,000MB/s *
SEQUENTIAL WRITE - Up to 4,200MB/s *
WARRANTY - 5-Year Limited Warranty or 1200 TBW Limited Warranty

FEATURES :

Up to 5,000/4,200 MB/s of sequential read/write speeds
Enhanced power efficiency supporting Modern Standby
Meet the demands of gaming, business, and creative work
PERFORMANCE - Upgrade to faster read speed up to 5,000 MB/s reaching 43% faster than the previous model.
POWER EFFICIENCY - 70% enhanced power efficiency compared to the previous model, supporting Modern Standby and longer battery life
VERSATILITY - Elevate everyday performance in gaming, business and creative work with PCIe 4.0x4 and PCIe 5.0x2 compatibility

SPECIFICATIONS

► GENERAL FEATURES

- Application : Client PCs
- Capacity : 2,000GB (1GB=1 Billion byte by IDEMA)
*Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

- Form Factor : M.2 (2280)
- Interface : PCIe 4.0 x4 / 5.0 x2 NVMe 2.0
- Dimension (Pack: WxHxD) : 80 x 22 x 2.38 mm
- Weight : max 9.0g
- Storage Memory : SAMSUNG V-NAND TLC
- Controller : Samsung in-house Controller
- Cache Memory : HMB(Host Memory Buffer)

► SPECIAL FEATURES

- TRIM Support : Supported
- S.M.A.R.T Support : Supported
- GC (Garbage Collection) : Auto Garbage Collection Algorithm
- Encryption Support : AES 256-bit Encryption (Class 0)/TCG/Opal IEEE1667 (Encrypted Drive)
- WWN Support : Not Supported
- Device Sleep Mode Support : Yes

► PERFORMANCE

Sequential Read : Up to 5,000 MB/s *
Sequential Write : Up to 4,200 MB/s *
Random Read (4KB, QD32) : Up to 700,000 IOPS *
Random Write (4KB, QD32) : Up to 800,000 IOPS *
Random Read (4KB, QD1) : Up to 20,000 IOPS *
Random Write (4KB, QD1) : Up to 90,000 IOPS *
*Performance may vary based on system hardware & configuration

► ENVIRONMENT

Average Power Consumption (system level) : *Average: Read 5.5 W / Write 4.7 W* Power consumption (Idle) : Typical 60 mW *
Power Consumption (Device Sleep) : Typical 5 mW *
*Actual power consumption may vary depending on system hardware & configuration

Allowable Voltage : 3.3 V ± 5 % Allowable voltage
Reliability (MTBF) : 1.5 Million Hours Reliability (MTBF)
Operating Temperature : 0 - 70 ℃ Operating Temperature
Shock : 1,500 G & 0.5 ms (Half sine)
