SUPERFLOWER PCIe 5.0 Cable (8+8 PIN to 16 PIN) - PCIe connector 8PIN x2 / 12VHPWR (12+4PIN) GPU Connector for RTX40 Series
SUPERFLOWER PCIe 5.0 Cable (8+8 PIN to 16 PIN) - PCIe connector 8PIN x2 / 12VHPWR (12+4PIN) GPU Connector for RTX40 Series
Couldn't load pickup availability
PCIe 5.0 Cable (8+8 PIN to 16 PIN)
12VHPWR FOR RTX-40 SERIES
Compatible with Leadex Platinum 1600W/2000W, Leadex Platinum SE, and Leadex III Gold series. The 12VHPWR for the RTX-40 series can withstand high power output of up to 600W and supports the latest graphics cards.
DUAL 8PIN TO 12VHPWR POWER CABLE
Super Flower dual 8PIN to 12VHPWR power cable allows users to flexibly install the 8PIN to the power supply and the 12VHPWR (12+4PIN) connector to the graphic card.
HOW TO CONNECT 12VHPWR (12+4PIN) CABLE CORRECTLY
Pinch both sides of the cable with your fingers so that the cable and the PCIE5 interface are aligned with each other and install it with at least a 35mm straight horizontal line.
Ensure the wire is inserted firmly after installation. If not, there is a risk of fire.

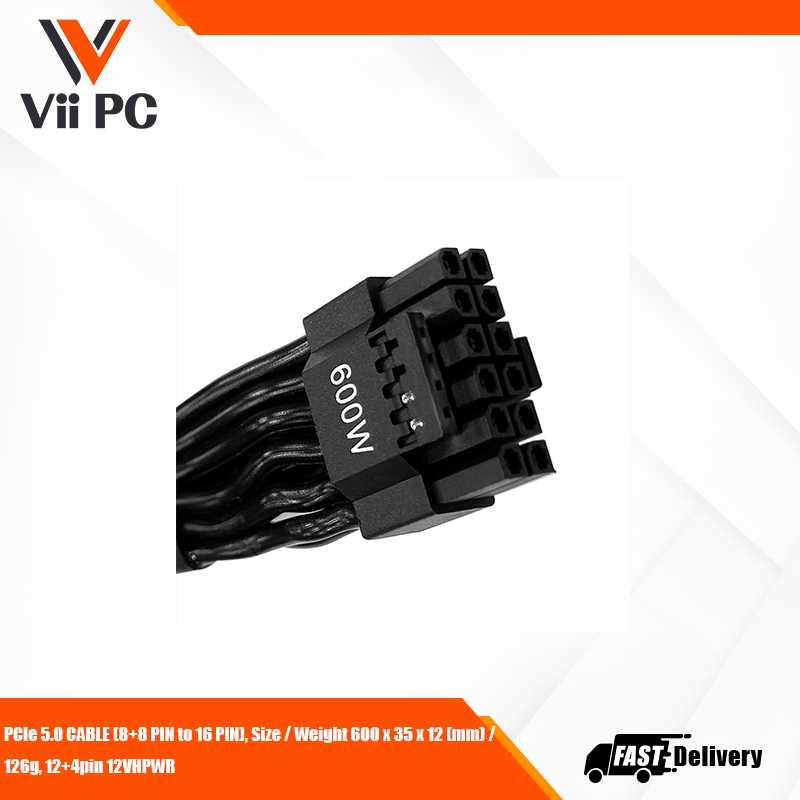

NATIVE PCIE5.0 16PIN CONNECTOR
All 12PINs connected to the power supply are 16AWG wires and use 9.2A high-current resistant alloy copper terminals. During 12V DC voltage input, it can withstand up to 600W output (excluding sensing pins).
Specification
| Model Number | SF2PCIE-16P(I) | |
| EAN CODE | 4711213449956 | |
| PCIe side connector | PCIe 8pin x2 | |
| GPU side connector | 12+4pin 12VHPWR | |
| Size / Weight | 600 x 35 x 12 (mm) / 126g | |
| Applicable Model | ・LEADEX TITANIUM Series ・LEADEX PLATINUM 1600W / 2000W ・LEADEX PLATINUM SE Series ・LEADEX III GOLD Series |
|
| Precaution
|
01> Please use the cable with a 850W PSU at the least or above watts. 02> When powering RTX4090, please use a 1000W PSU or above watts. 03> When connecting native cables with Dual 8 Pin/9Pin PCI-e to 12VHPWR, please make sure to fully plug them. If it is not plugged securely, it may catch fire. 04> Please leave enough space for the 12VHPWR cable management. Do not directly bend the cable from the connector; to leave space with the length 3-5cm is required. 05> If the case width is not enough, please do not let the side panel press against the power supply interface of the graphics card to avoid the risk of overheating and burning. 06> Do not pull the cable when plugging and unplugging, please press the connector directly to plug and unplug. 07> This cable only supports the corresponding models of Super Flower PSU, please do not use with products from other brands or the models without mentioning above, so as not to cause damage, and SF will not be responsible for it. 08> Super Flower's maximum warranty coverage during the warranty period depends upon year of use or current market price of the product. (Estimated value, excluding shipping, handling and other charges) is limited. 09> SF shall not bear any responsibility with respect to indirect damages or loss caused by the use of or inability to use the product. 10> Product specifications are subject to change without prior notice. |
|
