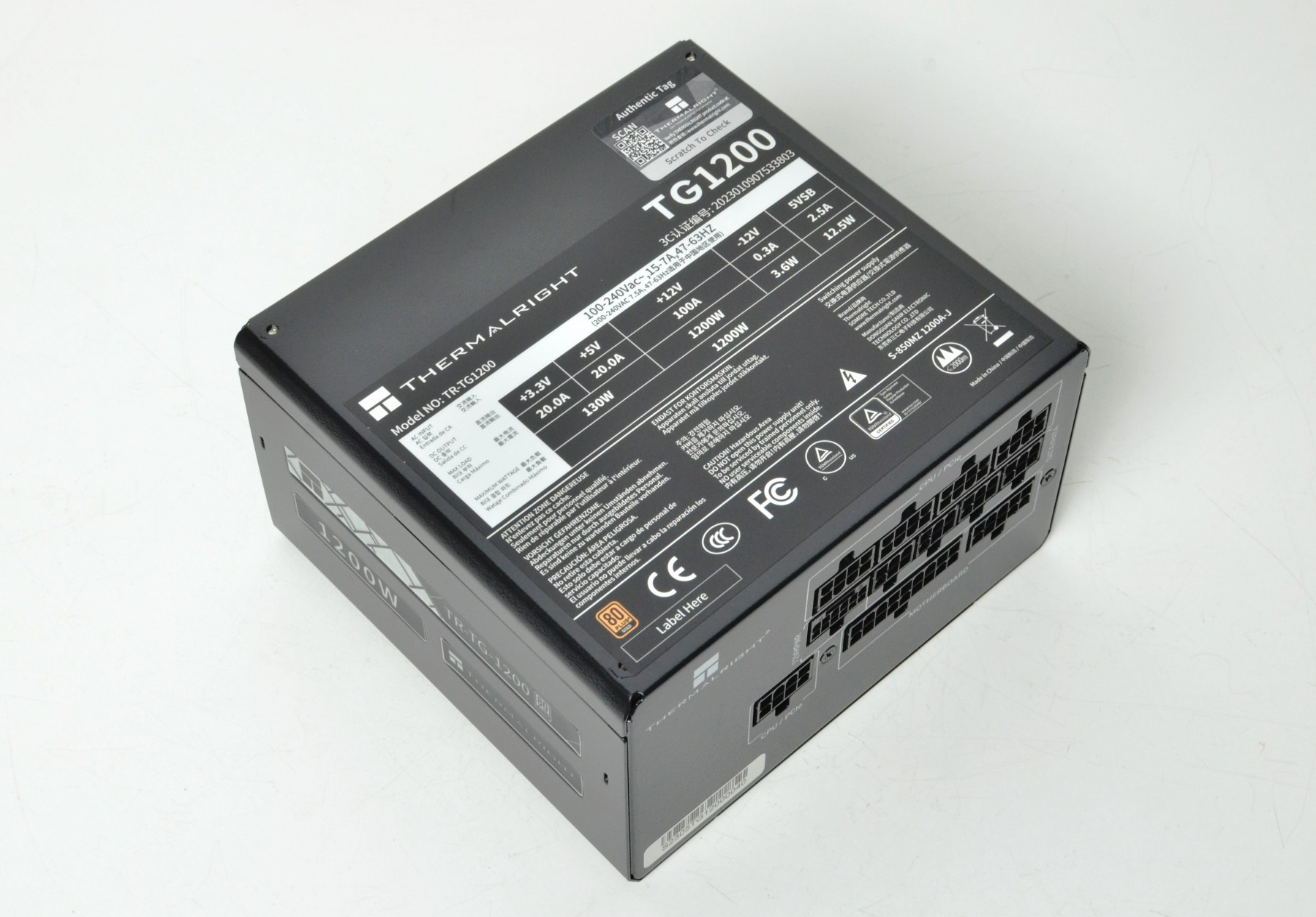

Thermalright TG Gold 1200W
Thermalright’s TG‑1200‑W is aimed at high-end gaming or workstation builds, suitable for powering top-tier CPUs and GPUs (including native support for PCIe 5.0’s 12VHPWR connector via ATX 3.0 design).
Key standout features include:
High energy efficiency (typical > 90%) reduces electricity costs and heat output
Fully modular design improves airflow and system aesthetics
Semi‑passive “smart fan” mode keeps noise low during light loads, with active cooling when needed
Use of 105 °C‑rated Japanese electrolytic capacitors for durability and reliability
Dimension: L150 mm x W140 mm x H86 mm±1 mm
Wattage：1200W
Efficiency：80 PLUS GOLD
Modular：Full-Modular
Input Voltage：100-240Vac
Input Current：15-7.5A
Input Frequency：47-63Hz
Fan Size：120 mm
Operating Temperature：0-40°C
MTBF：>100K Hours
Protections：OPP/OVP/OTP/OCP/SCP/UVP
