Thermaltake

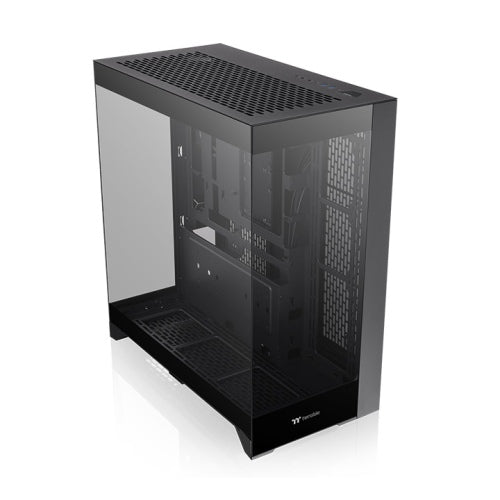

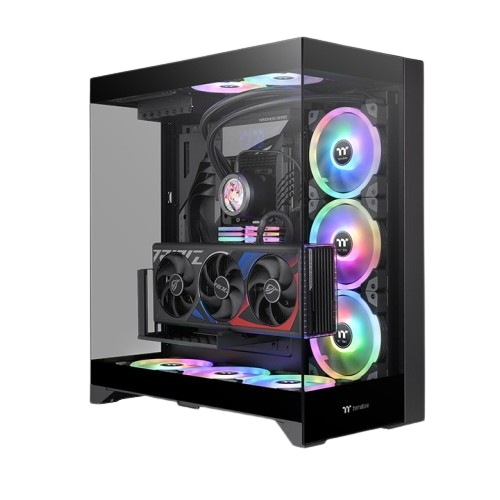

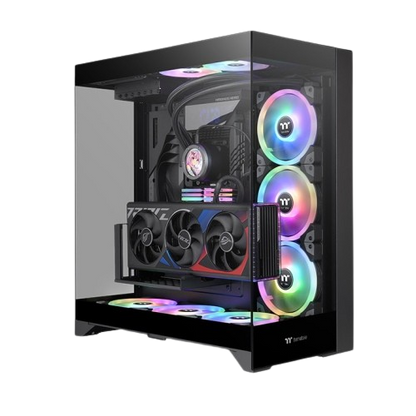

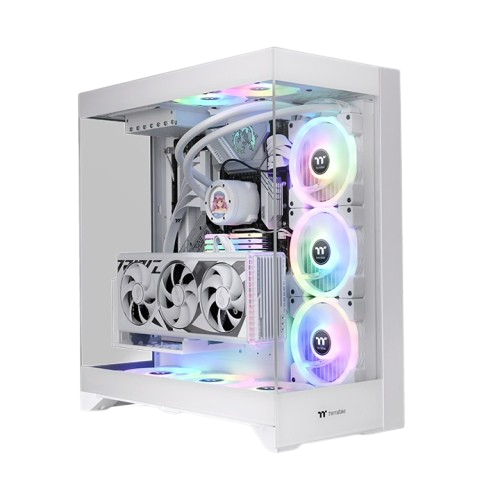

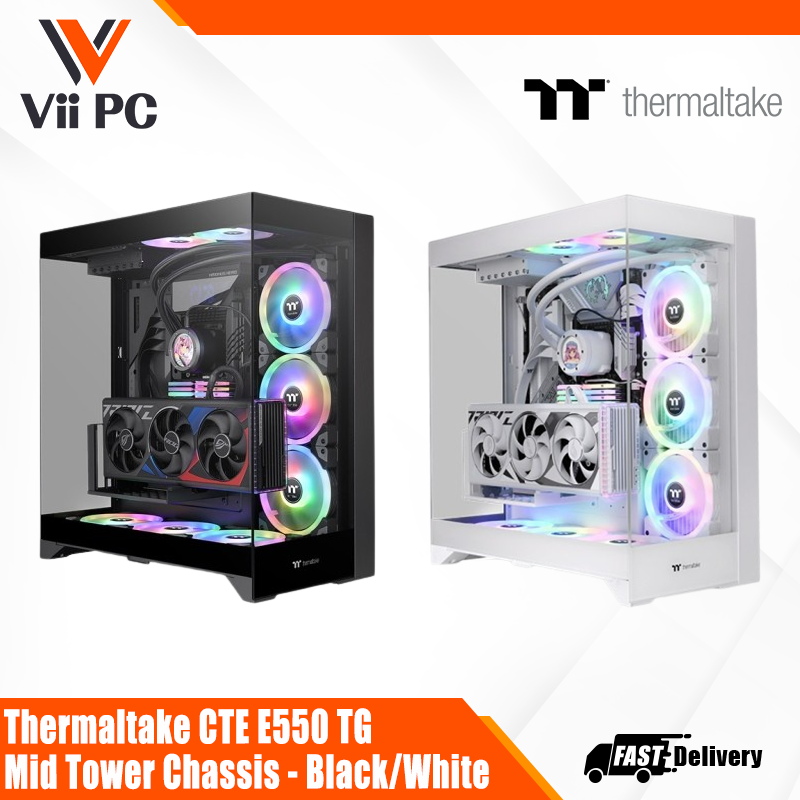

Thermaltake CTE E550 TG Mid Tower Chassis (Black/Snow) - Dual chamber mid-tower chassis with three TG panels

Thermaltake CTE E550 TG Mid Tower Chassis (Black/Snow) - Dual chamber mid-tower chassis with three TG panels

$229.00 SGD
$229.00 SGD
Sale Sold out

Thermaltake CTE E550 TG Mid Tower Chassis

Designed for an exceptional view, The CTE E550 TG is a dual chamber mid-tower chassis with three TG panels that allows users to display components in style. It supports the latest Hidden-Connector motherboards and offers a three-way GPU installation option, seamlessly blending aesthetics with compatibility.

Key Features:

  • Distinctive Airflow Design: The CTE E550 features a unique 90-degree rotated motherboard layout, enhancing airflow efficiency and ensuring effective cooling for high-performance components.
  • Spacious Interior: Supports ATX, Micro-ATX, and Mini-ITX motherboards with ample room for GPUs up to 400mm, ensuring compatibility with a wide range of components.
  • Enhanced Cooling Options: Equipped with multiple fan mounts (up to 8) and radiator support (up to 360mm), this case ensures superior cooling potential to keep your system running cool under heavy loads.
  • Tempered Glass Side Panel: Show off your build through the high-quality, tempered glass side panel, offering a crystal-clear view of your components while providing durability.
  • Cable Management System: Thoughtful cable routing options help maintain a clean, organized interior, promoting better airflow and easy installation.
  • Versatile Storage Options: Includes 2x 3.5" HDD and 2x 2.5" SSD mounting slots, with extra room for additional drives.

SPECIFICATIONS

P/N • CA-1Z8-00M1WN-00 (Black)

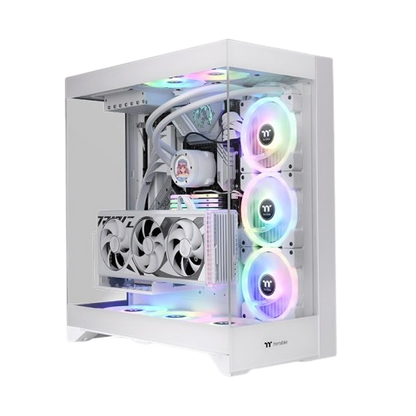

• CA-1Z8-00M6WN-00 (Snow)
Series CTE
CASE TYPE Mid Tower
Dimension (HxWxD) 558.5 x 270 x 513mm / 21.99 x 10.63 x 20.2 inch
NET WEIGHT 14.5 kg / 31.97 lbs.
PANEL 4mm Tempered Glass x 3
Color • Black
• Snow
MATERIAL SPCC
COOLING SYSTEM 3 x 3.5”, 1 x 2.5” or 2 x 3.5”, 2 x 2.5”
EXPANSION SLOTS 7
MOTHERBOARDS • 6.7” x 6.7” (Mini ITX)
• 9.6” x 9.6” (Micro ATX)
• 12” x 9.6” (ATX)
• 12” x 10.5” (E-ATX)
I/O Port USB 3.0 x 2, Type-c x1, HD Audio x 1
PSU Standard PS2 PSU (optional)
FAN SUPPORT

Top:
• 2 x 120mm, 1 x 120mm
Right (M/B Side):
• 3 x 120mm, 2 x 120mm, 1 x 120mm
• 3 x 140mm ,2x 140mm, 1 x 140mm
Bottom:
• 3 x 120mm, 2 x 120mm, 1 x 120mm
• 3 x 140mm ,2x 140mm, 1 x 140mm
RADIATOR SUPPORT Top:
• 1 x 240mm, 1 x 120mm
Right (M/B Side):
• 1 x 360mm, 1 x 240mm, 1 x 120mm
• 1 x 420mm, 1 x 280mm, 1 x 140mm
Bottom (DIY only):
• 1 x 360mm, 1 x 240mm, 1 x 120mm
• 1 x 420mm, 1 x 280mm, 1 x 140mm
CLEARANCE CPU cooler max height: 166mm
VGA max length:
• 415mm (with radiator)
• 443.8mm (without radiator)
PSU max length: 220mm
