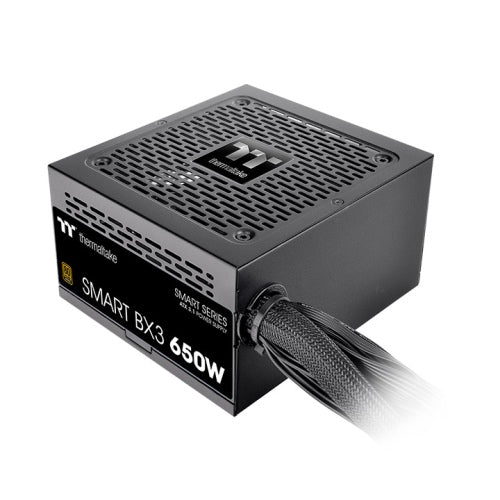

Thermaltake Smart BX3 Bronze
650W / 750W 80 PLUS Bronze Certified, Non-Modular PSU Built to ATX 3.1
The Thermaltake Smart BX3 Bronze 650W/750W PSU offers reliable and efficient power for your system, with 80 PLUS Bronze certification ensuring energy efficiency while keeping electricity bills low. This non-modular power supply is built to support the latest ATX 3.1 standard, providing stable power to your components. Ideal for mainstream users and budget-conscious PC builders, the Smart BX3 ensures safe and quiet operation while meeting the demands of modern gaming rigs and workstations.
Key Features:
- 80 PLUS Bronze Certification: Provides up to 85% energy efficiency at typical loads, helping reduce electricity usage and heat generation.
- ATX 3.1 Compatibility: Compatible with the latest ATX 3.1 standard for stable and consistent power delivery.
- Non-Modular Design: A standard design with fixed cables that are easy to manage for simpler builds.
- 120mm Cooling Fan: Ensures quiet operation and effective cooling under load with intelligent fan speed control.
- Multiple Protections: Includes over-voltage, over-current, and short-circuit protection to protect your components.
-
Reliable and Durable: High-quality capacitors for long-lasting performance and reliability.
SPECIFICATIONS
| P/N | • PS-SPD-0650NNFABx-3 (650W) • PS-SPD-0750NNFABx-3 (750W) |
|---|---|
| Watts | 650W / 750W |
| Model | • SPD-0650AH2NLB-3 (650W) • SPD-0750AH2NLB-3 (750W) |
| Max. Output Capacity | 650W / 750W |
| Color | Black |
| Dimension (W/H/D) | 150mm (W) x 86mm (H) x 140mm (D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-150 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 15A - 6A |
| Input Frequency Range | 50Hz / 60Hz |
| Input Voltage | 100 - 240V~ |
| OPERATING TEMPERATURE | 5°C to + 45°C |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperature | -40°C to + 55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| COOLING SYSTEM | 12cm FDB Fan |
| Efficiency | Meet 80 PLUS® Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC |
| PCI-E 6+2pin | 2 |
| Smart Zero Fan | • Fan will not spin until the load exceeds 20% • No physical fan switch |
| PROTECTION | OCP/OVP/UVP/OPP/OTP/SCP |
